CIDRW System
User’s Manual
SECTION 6
Troubleshooting
SECTION 6
Troubleshooting
71
■ From Trial Operation to Communications
Errors are indicated by the status of the indicators after transmission of the write command, and by the
response code of the response.
• If the ID Tag Was Processed Normally:
If there is no response to the write command, refer to the From Installation to Trial Operation,
Operation Check Flowchart. Refer to page 69.
Indicators
RUN COMM NORM ERROR
Response Code for the Response
Type
Response
code
Function
Normal 00 The ID Tag was processed normally.
Error occurrence
Is the response
code 1 ?
No
Yes
Check the command format.
If the response code is 1 Refer to page 72.
Yes
Communications with the ID Tag has failed.
If the response code is 7 Refer to page 72.

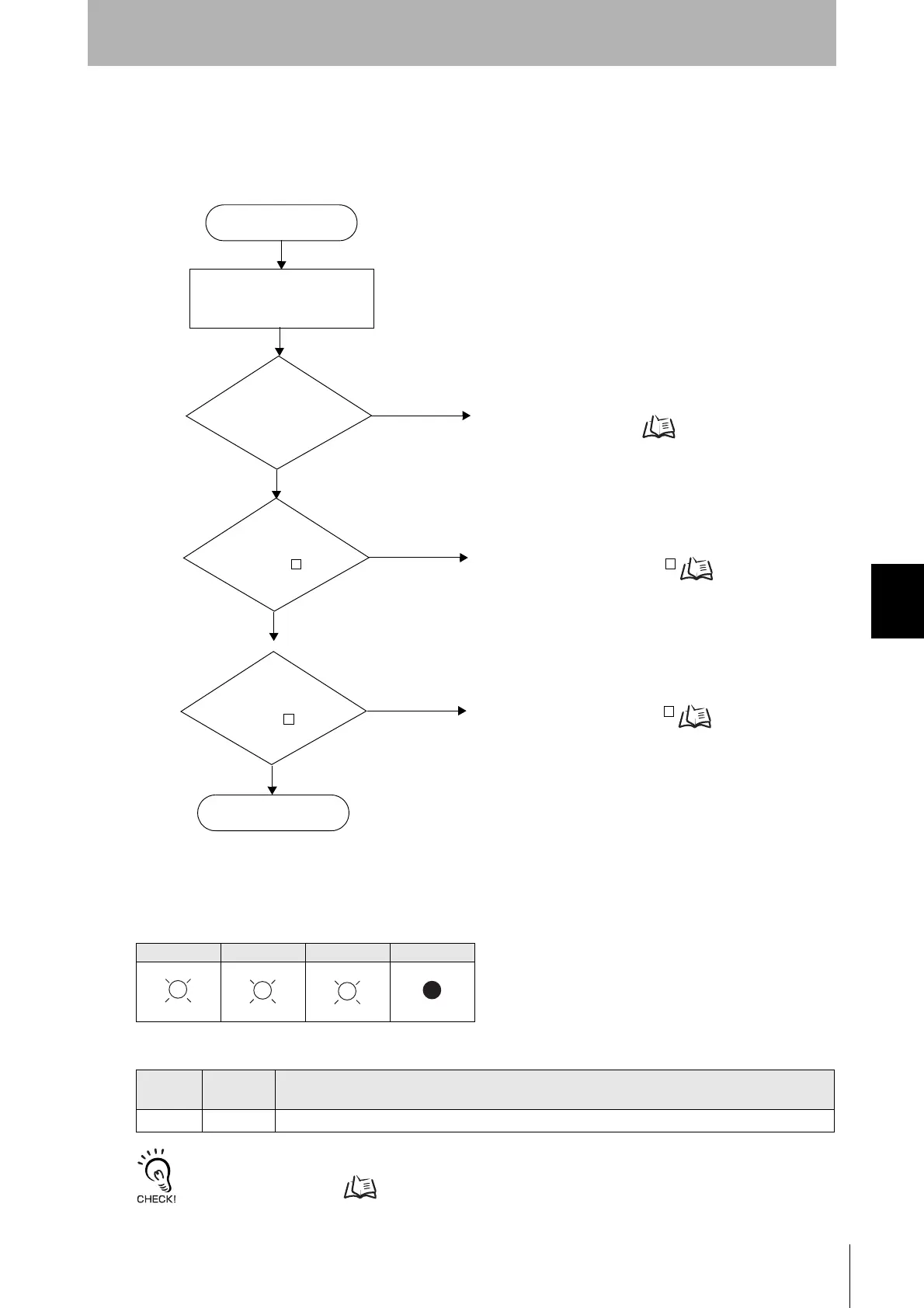

Write command sent
RUN indicator
OFF?
No
Yes
An error has occurred at the Amplifier Unit.
Amplifier Unit error Refer to page 72.
Is the response
code 7 ?
Communications OK
No
To Next Page
