Omron V640 Series User Manual

82
SECTION 7
Characteristic Data According to Conditions of Use
CIDRW System
User’s Manual
SECTION 7
Appendix
• Coaxial Mounting (RI-TRP-DR2B-30)
• READ
• WRITE
-250 -200 -150 -100 -50 0 50 100 150 200 250
0
50
100
150
200
250

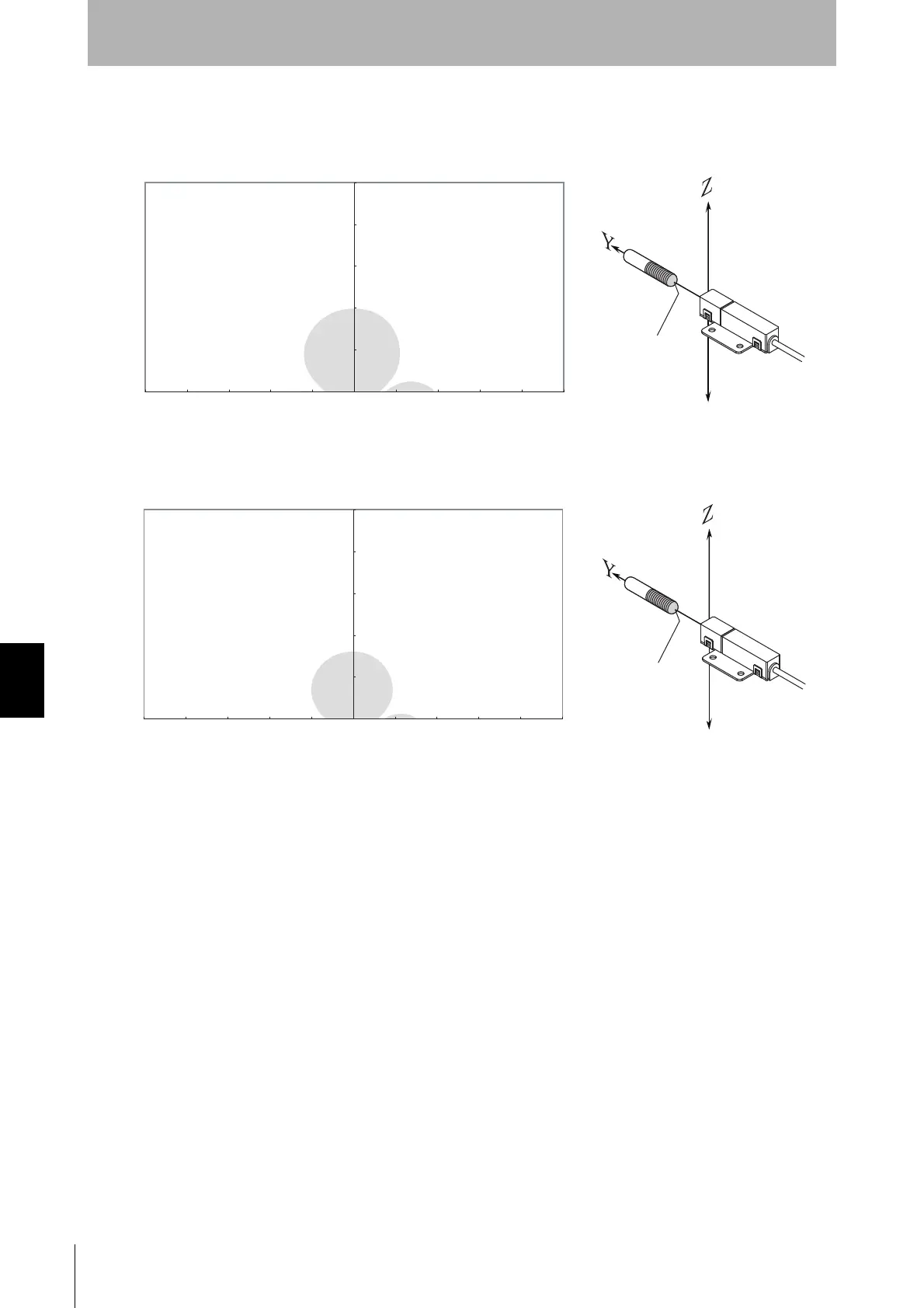

Communications Area (READ)
Distance in Z direction (mm)
Measurement point
Distance in Y direction (mm)
-250 -200 -150 -100 -50 0 50 100 150 200 250
0
50
100
150
200
250
Communications Area (WRITE)
Distance in Z direction (mm)
Measurement point
Distance in Y direction (mm)
