Section 1 Features
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview
Simple Connection
The highly generic Ethernet is used to connect to the host device to enable easy connection with
Ethernet cable without any restrictions from the host PLC manufacturer. A Switching Hub can be used
to easily connect more than one RFID System.
Set the IP address to avoid conflicts.
Switching Hub
PLC

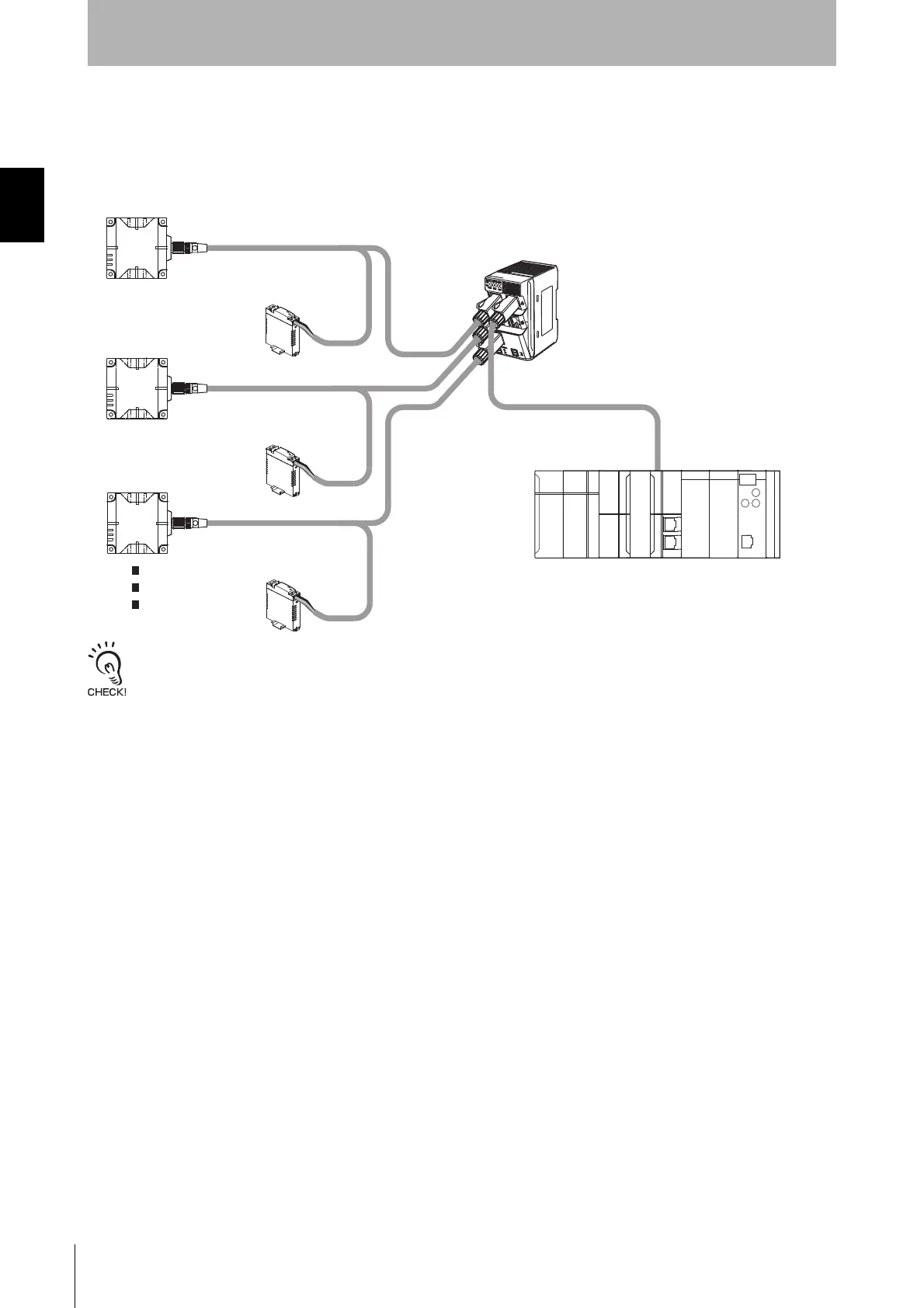

Easy Addition of Reader/Writers Using an Ethernet Hub
* The DC Power Supply is needed to operate the devices.
24-VDC
power supply
24-VDC
power supply
24-VDC
power supply
Reader/Writer
Reader/Writer
Reader/Writer
