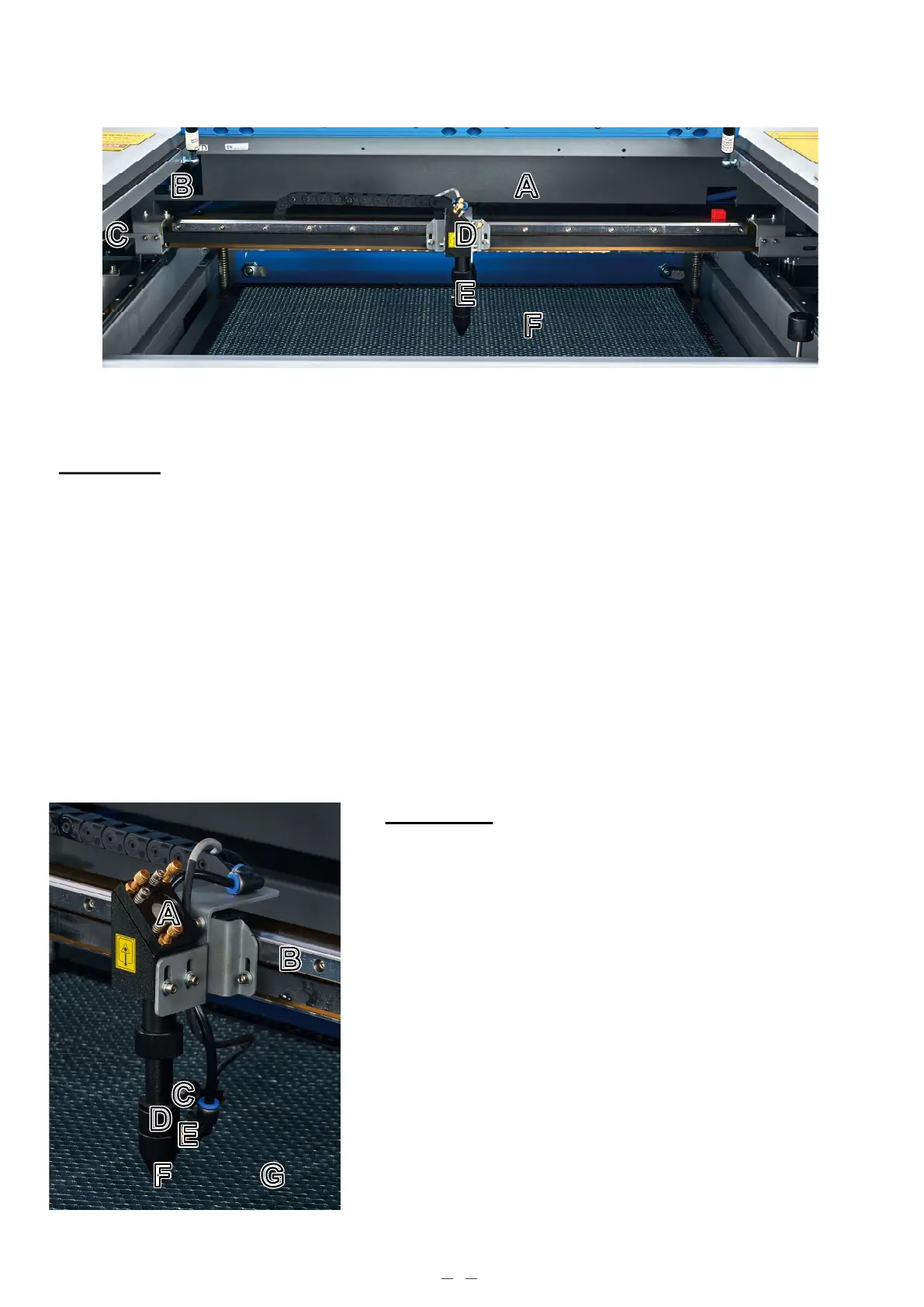

Laser Head
A. 3rd Mirror—This adjustable-angle mirror transfers the laser from
the 2nd mirror to the focus lens.
B. X-Axis Rail—This rail moves along the Y axis, with its movement
controlled by limit switches.
C. Red Dot Pointer—This device helps you see the exact position of
the invisible engraving laser.
D. Focus Lens—This 18 mm lens directs and focuses the laser beam
to its point of contact with the engraving material.
E. Air Assist—This device blows pressurised air to kill sparks and
blow away gas and debris as you engrave.
F. Laser—The engraving laser itself is invisible but highly danger-
ous. Avoid any direct exposure to your skin or eyes.
G. Workbed—Use the provided acrylic tool to get the perfect focus
for any thickness of material.
Laser Path
A. Laser Tube—This CO₂-filled glass tube is mounted on
brackets and immobile. Its connection to the laser power
supply is extremely high voltage and extremely dangerous.
B. 1st Mirror—This adjustable-angle mirror is fixed in
place to transfer the engraving laser from the tube to the
2nd mirror.
C. 2nd Mirror—This adjustable-angle mirror moves with the
X-axis rail to allow the laser beam to travel along the Y axis.
D. 3rd Mirror—This adjustable-angle mirror moves
with the laser head to allow the laser beam to travel
along the X axis.
E. Focus Lens—This lens directs and focuses the laser
to the material.
F. Workbed—The bare workbed can be adjusted in
height or fitted with aluminium or honeycomb
tables for different projects.
