31
4.4.17 Adjusting Engraving Layers
When the system is idle or the work is finished, press ENT to enter the layer parameter section. Push ▲ or ▼ to
select the intended layer. Press ENT to check the selected layer's parameters as shown below:

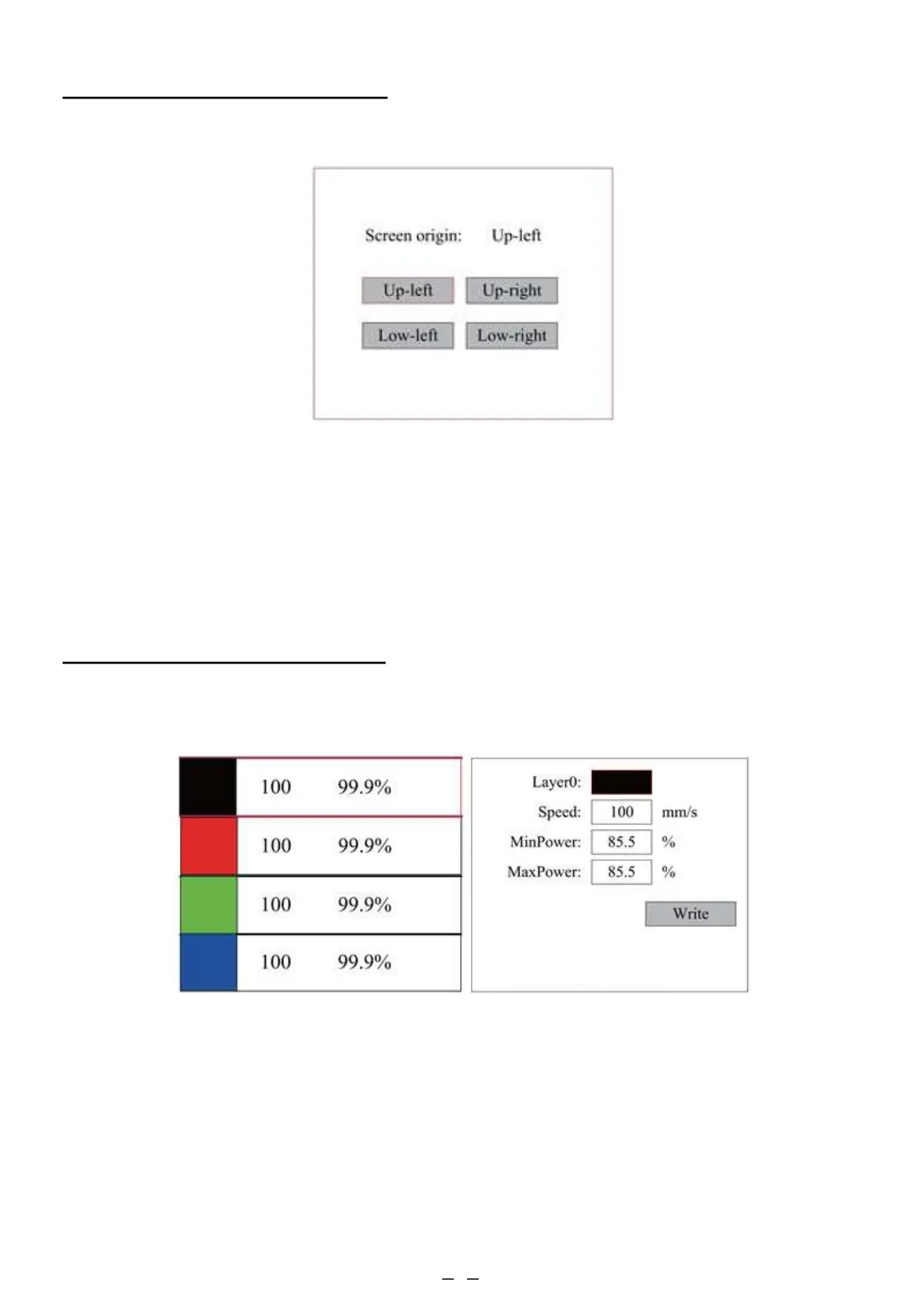

4.4.16 Setting the Screen Reference
When Screen Origin is selected, the following dialogue box will pop up:
This interface shows the position of the origin. Different origin positions can generate different reflections of the graph
over the X/Y axis. The operation method is the same as described above.
The red cursor will be on “Layer” by default. Push the ◄ and ► keys to select the intended layer. Move the cursor
to Write and press ENT to save the parameter change or ESC to exit without saving. The operation method is the
same as that of the max./min. power setting.
