5-6
Under-Floor Mount:
1. Use a forklift to support the genset at the points
shown in Figure 5-3.
2. Raise the lift so it contacts the bottom of the
genset housing, then place slight upward pres-
sure on the set. Make certain that the genset is
fully supported by the lift before continuing.
3. Loosen bolts between genset base pan and
side mounting panels (loosen bolts about six
turns).
4. Loosen bolts securing the side panels to the
rear panel (note slotted holes) or braces and
pull side panels away from genset. Retighten
side panels to back panel bolts.
5. Remove side and rear panel to genset base
mounting bolts. Slowly lower the genset until it
clears all obstructions and can be safely moved
out from under the vehicle.
When reinstalling the genset, be sure that all bolts,
brackets, and electrical, exhaust, and fuel system
components are connected exactly as they were
before removal.
FORKLIFT

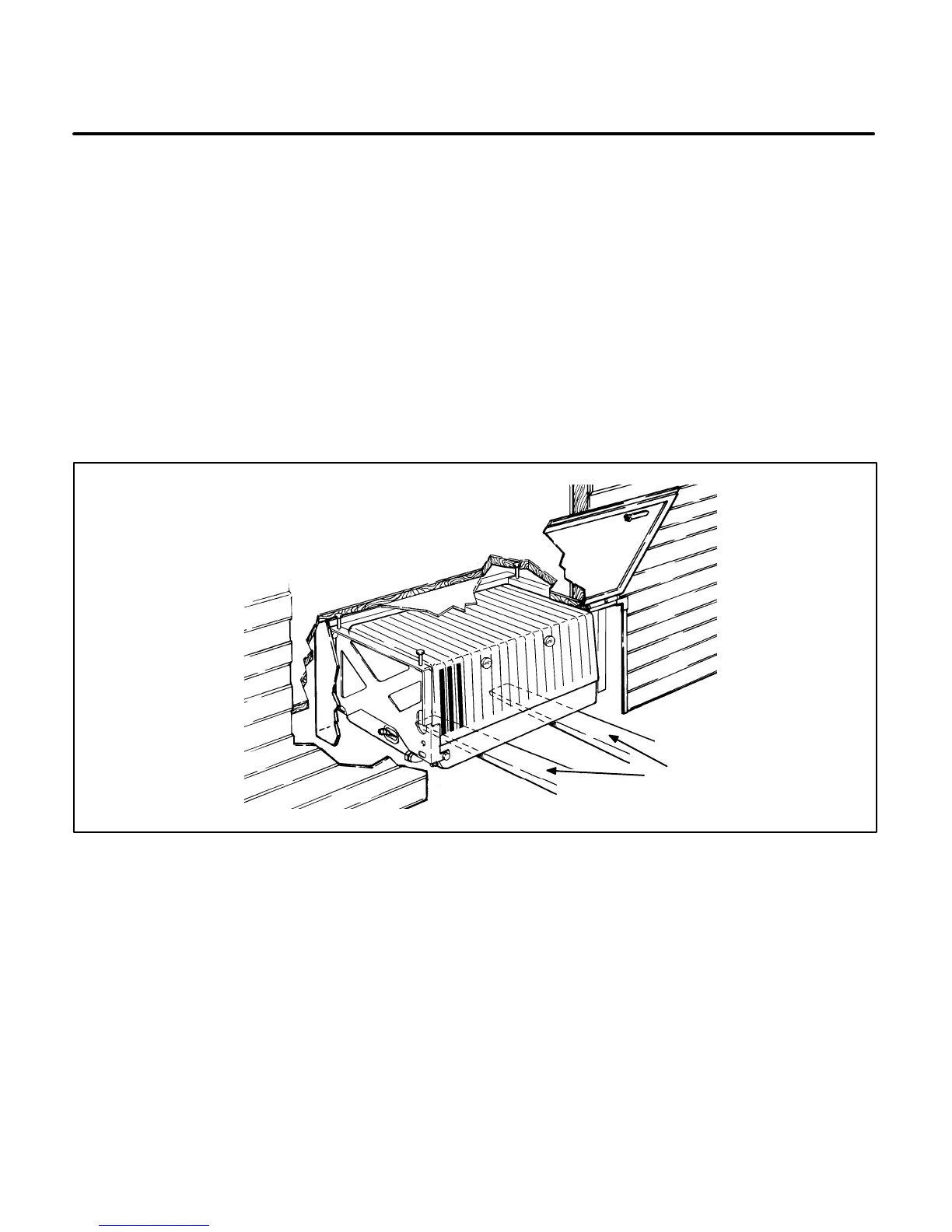

FIGURE 5-3. COMPLETE GENSET REMOVAL (SPEC A SHOWN)
