6-26
Begin Spec B Stop Mode
Momentarily pushing the Start/Stop switch (S1) to the Stop position begins the stop mode with the following results:
• Control assembly (A1) de-energizes the ignition enable circuit, grounding the magneto (G2) ignition circuit to
stop the engine.
• Control assembly (A1) also opens the circuit to the fuel pump (E2), the fuel shutoff solenoid (E3), and to the
remote control.
• Control assembly (A1) start disconnect senses a drop in voltage from the output voltage and activates the
remote stop latch to prevent restart during the stop mode.
BATTERY BT1
FUSE F1
CONTROL ASSEMBLY A1
START/STOP SWITCH S1
SPARK PLUG E1
IGNITION
COIL T1
MAGNETO
IGNITION G2
J1 CONNECTOR
P1 CONNECTOR
FUEL SHUTOFF E3
FUEL PUMP E2
(FUEL SHUTOFF - LPG)

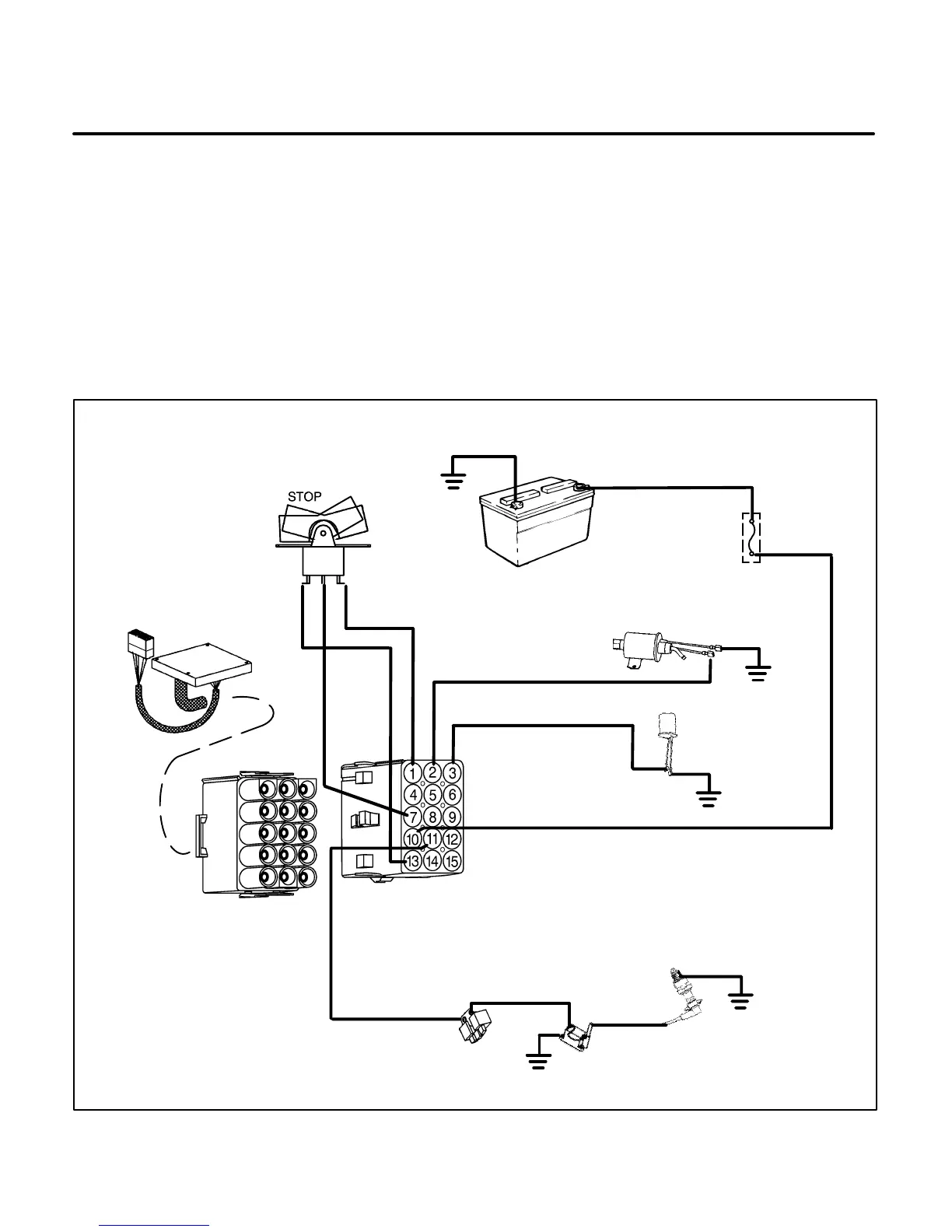

FIGURE 6-14. SPEC B STOP MODE
