Onan MicroLite 4000 Series User Manual

6-14
Spec A Stop Mode
Momentarily pushing the Start/Stop switch (S1) to the Stop position begins the stop mode with the following results:
• Control assembly (A1) de-energizes the ignition enable circuit, grounding the magneto (G2) ignition circuit to
stop the engine.
• Control assembly (A1) also opens the circuit to the fuel pump (E2) and to the remote control.
• Control assembly (A1) start disconnect senses a drop in voltage from the battery charge winding B1-B2 and
activates the remote stop latch to prevent restart during the stop mode.
CONTROL ASSEMBLY A1
START/STOP SWITCH S1
SPARK PLUG E1
IGNITION
COIL T1
MAGNETO
IGNITION G2
STATOR
CONNECTOR
S
B2
B1
J1 CONNECTOR
P1 CONNECTOR

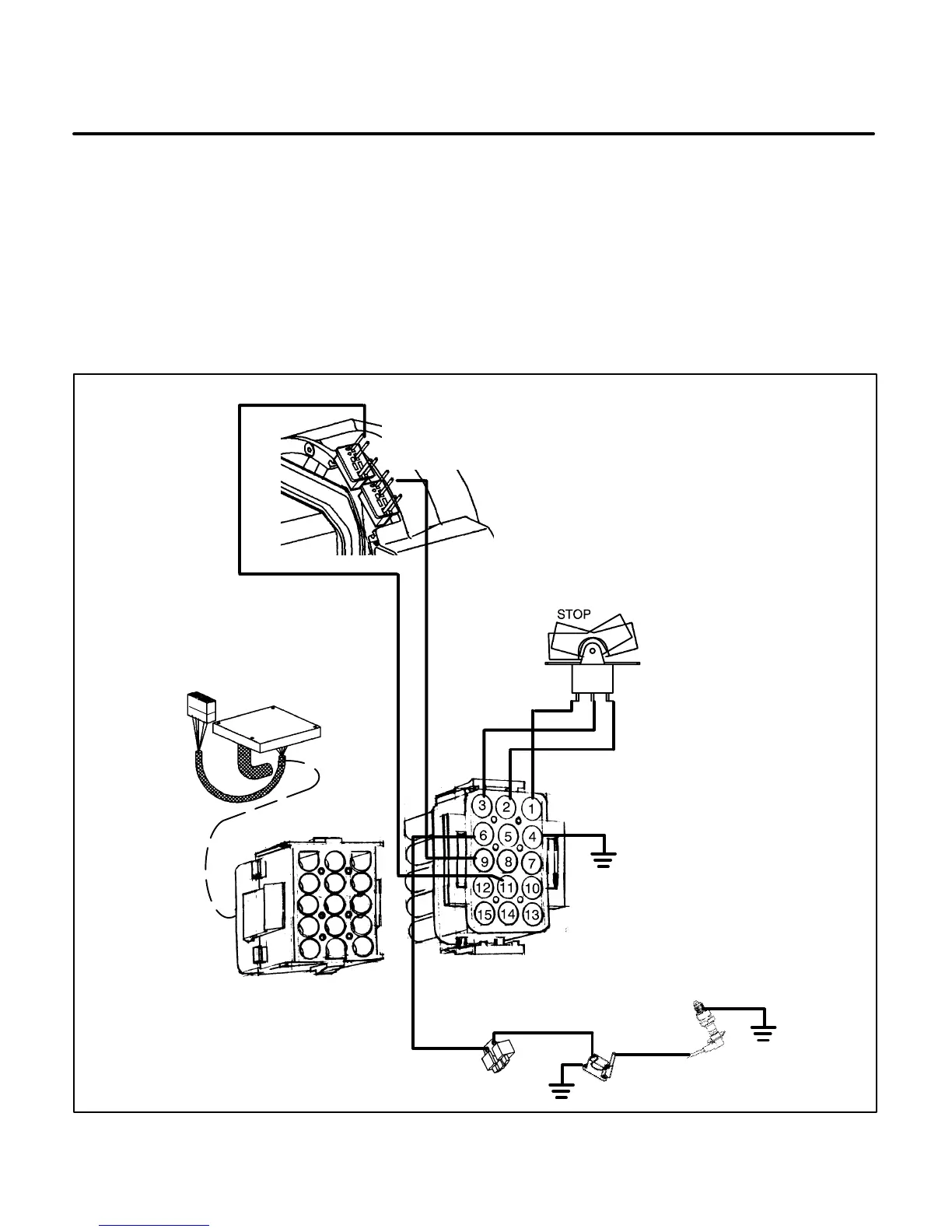

FIGURE 6-8. SPEC A STOP MODE

Onan MicroLite 4000 Series Specifications

General

Fuel Type	Gasoline
Frequency	60 Hz
Rated AC Output	4000 Watts
AC Voltage	120V
Rated AC Amperage	33.3A
Engine Type	OHV
Starting Method	Electric
Noise Level	68 dB at 23 ft
