Onan MicroLite 4000 Series User Manual

6-3
ES2017s
STARTER MOTOR B1
IGNITION COIL T1
START/STOP SWITCH S1
FUSE F1
CONTROL ASSEMBLY A1
SPARK PLUG E1
CIRCUIT BREAKER CB1
MAGNETO IGNITION G2
BRUSH BLOCK
START RELAY K1
VOLTAGE REGULATOR VR1
FUEL SHUTOFF
SOLENOID E3
REMOTE CONTROL
CONNECTOR
FUEL PUMP E2
(FUEL SHUTOFF
SOLENOID ON
LPG MODELS)
STATOR CONNECTOR P5
STATOR CONNECTOR P6
TRANSFORMER T1
(50 HERTZ ONLY)
50 HZ MODELS HAVE BATTERY CHARGER
(VR2) MOUNTED INSIDE THE HOUSING
(NOT SHOWN - SEE FIGURE 77)

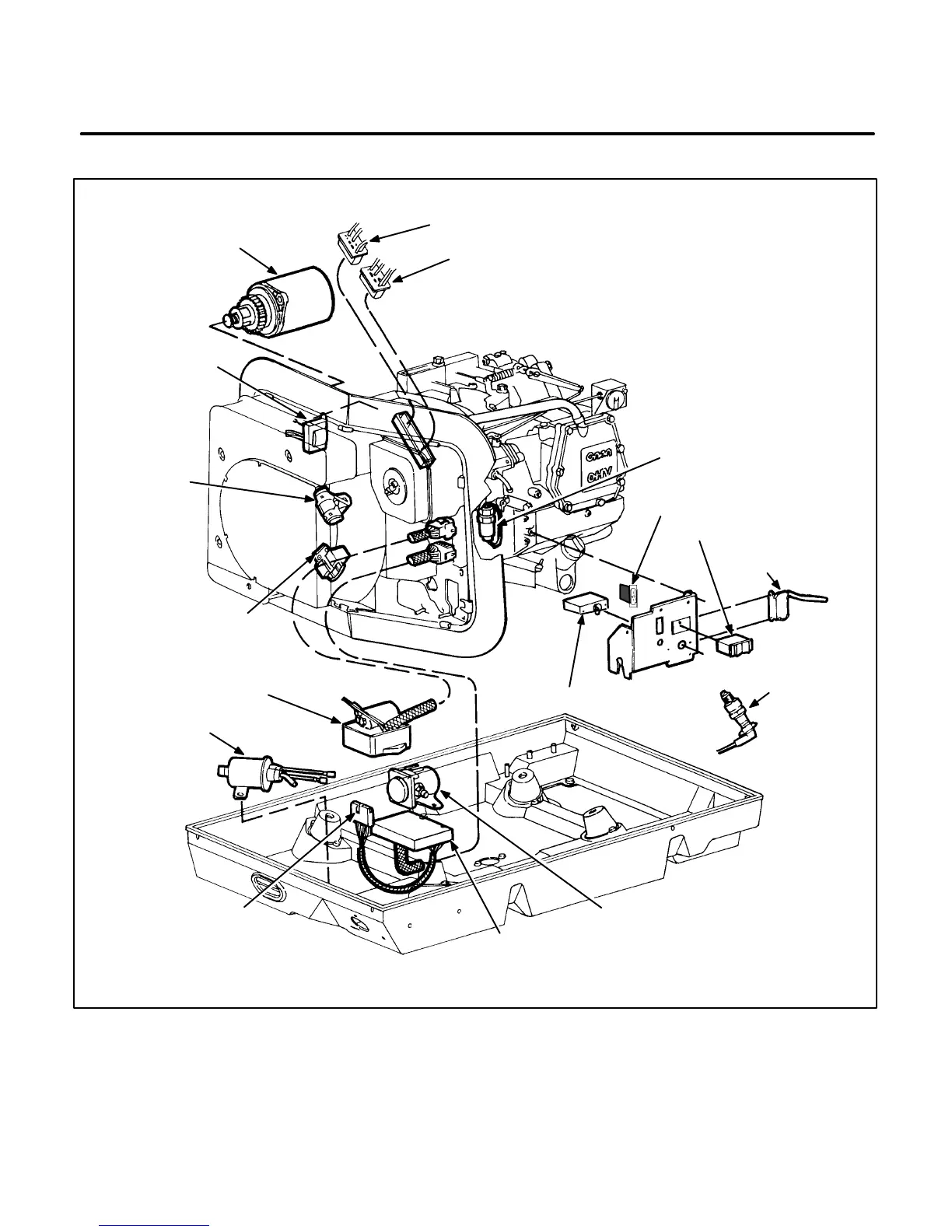

FIGURE 6-2. COMPONENT LOCATIONS – GASOLINE-FUELED MODELS, BEGINNING WITH SPEC B

Onan MicroLite 4000 Series Specifications

General

Fuel Type	Gasoline
Frequency	60 Hz
Rated AC Output	4000 Watts
AC Voltage	120V
Rated AC Amperage	33.3A
Engine Type	OHV
Starting Method	Electric
Noise Level	68 dB at 23 ft
