Onan MicroLite 4000 Series User Manual

6-24
Begin Spec B Battery Charge Mode – 50 Hz Only
With the genset running, AC voltage is produced in the B1-B2 windings for the battery charge circuit in the 50 Hz mod-
els only. The 60 Hz Spec B models do not have battery charging.
• The AC output voltage from the B1-B2 winding is converted to DC voltage when it passes through the battery
charger assembly (VR2). The 12-volt DC output (ten-ampere maximum) is used to charge the battery and supply
power to the control assembly (A1) and its outputs.
ES2017-4s
BATTERY BT1
FUSE F1
CONTROL
ASSEMBLY A1
REMOTE CONTROL
STATOR
CONNECTORS
B2
B1
J1 CONNECTOR
P1 CONNECTOR
START/STOP SWITCH S1
AC
BATTERY CHARGER
ASSEMBLY VR2
AC
B+
A
BCEF

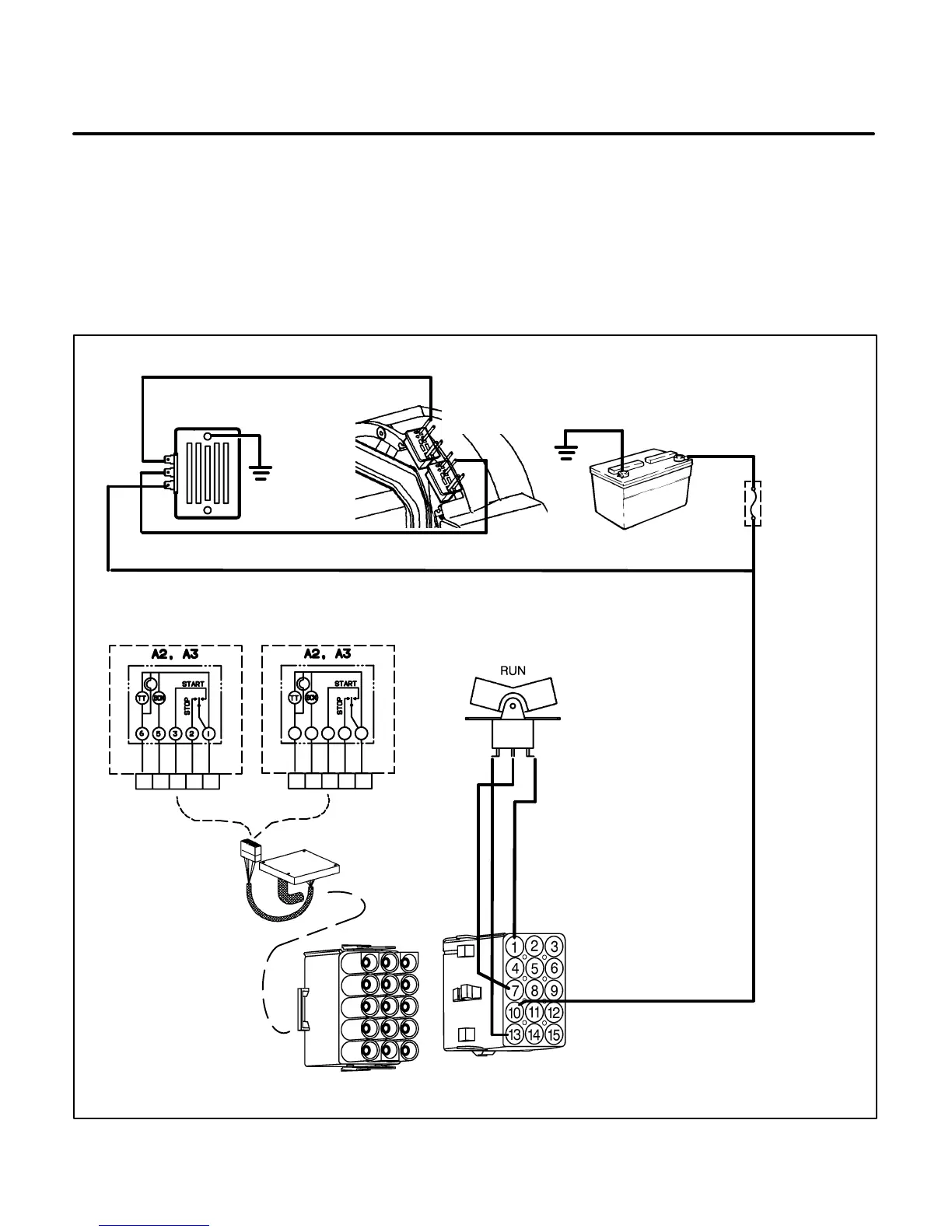

FIGURE 6-13. SPEC B BATTERY CHARGE MODE – 50 Hz MODELS ONLY

Onan MicroLite 4000 Series Specifications

General

Fuel Type	Gasoline
Frequency	60 Hz
Rated AC Output	4000 Watts
AC Voltage	120V
Rated AC Amperage	33.3A
Engine Type	OHV
Starting Method	Electric
Noise Level	68 dB at 23 ft
