8-18
SIGHT
WINDOW
CHOKE LINKAGE
ADJUSTMENT
PLATE
ADJUSTMENT
SCREW
CHOKE COIL
HOUSING
FS1867s

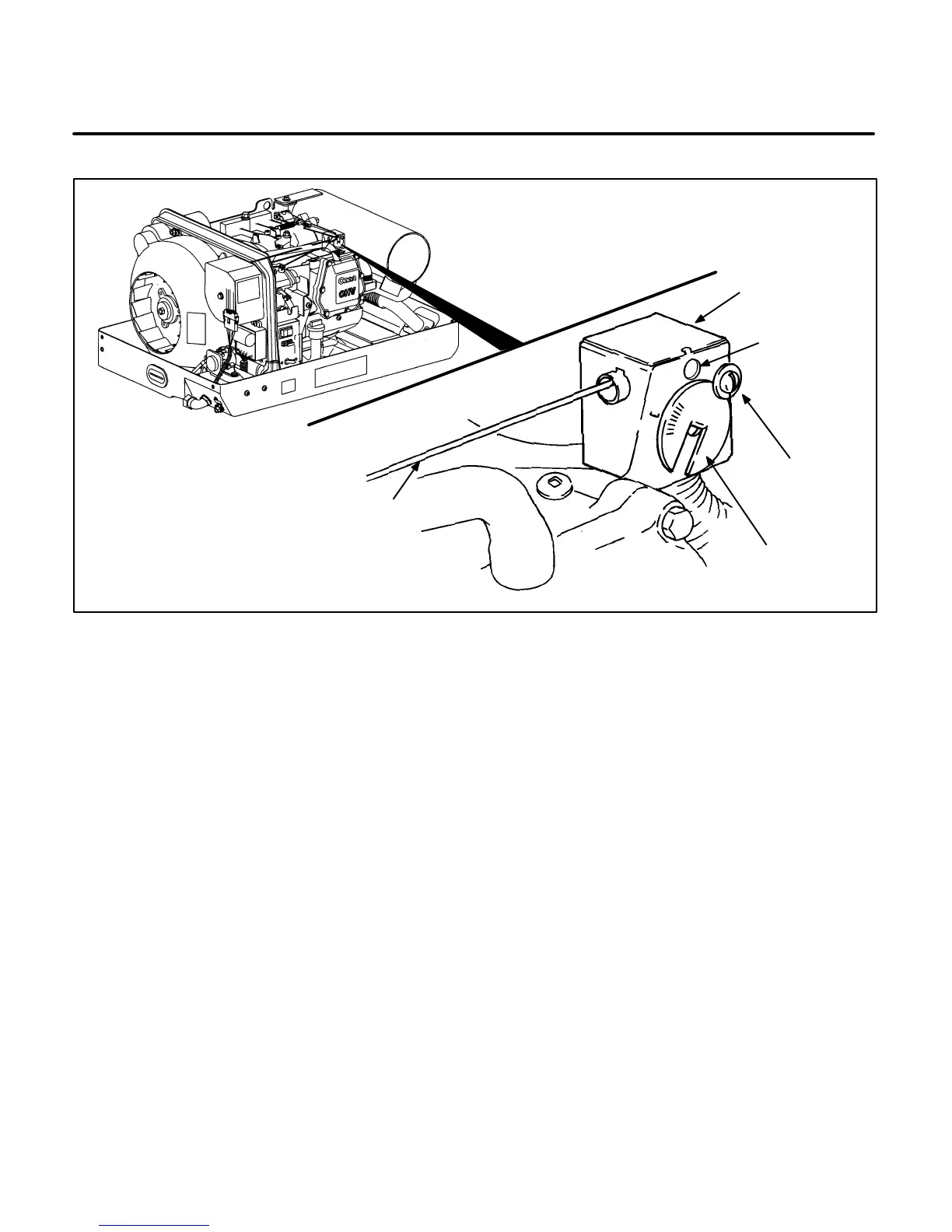

FIGURE 8-15. CHOKE ASSEMBLY
Bimetal Coil Replacement:
After making the
choke adjustment, start the genset and observe en-
gine operation. If the choke does not open properly,
replace the bimetal coil in the choke housing as fol-
lows. Refer to Figure 8-15.
1. Remove the adjustment screw and washer
from the choke coil housing.
2. Remove the housing. Straighten the tab from
the adjustment plate to release the bimetal coil.
3. Remove choke linkage from the bimetal coil
and install linkage on the new coil.
4. Assemble the new coil to the adjustment plate
and bend the tab on the adjustment plate to se-
cure coil.
5. Install choke coil housing and secure with
screw and washer. Perform the choke adjust-
ment procedure.
