F-3500 Insertion Electromagnetic Flow Meter Manual 02/18 - 0665-11 Page 19

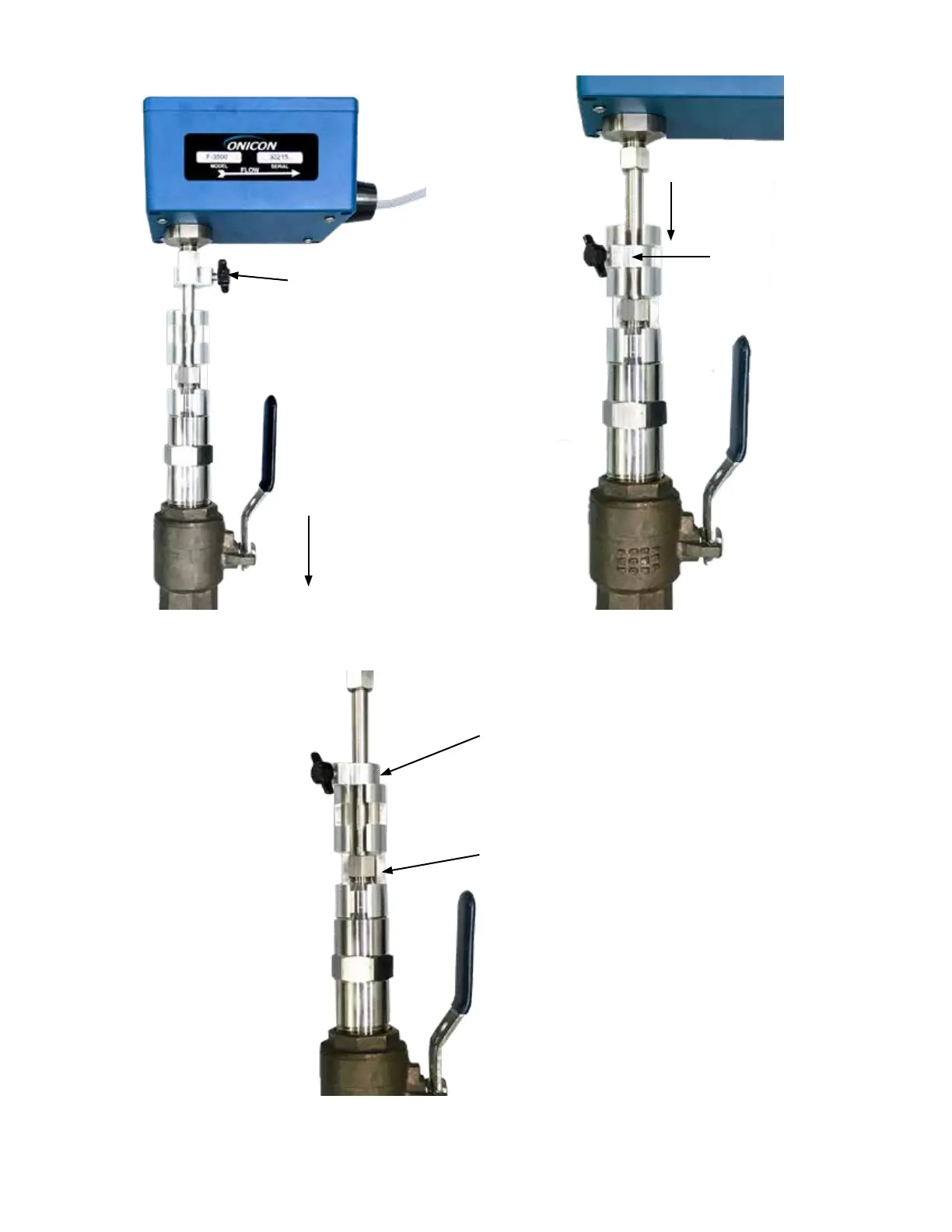

Step 2:
Place collar at the top of the
meter’s stem.
Step 3:
Gently insert the meter until it
touches the opposite side of
the pipe. Make sure the ow
direction arrow on the meter is
pointed in the direction of ow.
Step 4:
Loosen, then slide the
collar down and into
the top recessed area
of the alignment tool.
Lock the collar in this
position.
Step 5:
With the collar still locked, rotate the whole meter
so that the collar can be pulled out of the recess.
Set the collar on top of the alignment tool with the
ow direction on the F-3500 still correct.
Step 6:
Once in this position tighten the clamping nut to
permanently set the depth and orientation.
