F-3500 Insertion Electromagnetic Flow Meter Manual 02/18 - 0665-11 Page 6
1.3 STANDARD FEATURES AND SPECIFICATIONS
Accuracy
± 1.0% of reading from 2 to 20 ft/sec
± 0.02 ft/sec below 2 ft/sec
Sensing Method
Electromagnetic, no moving parts
Pipe Size Range
Standard Conguration: 3- 72” nominal diameter
Small Pipe Conguration: 1¼ - 2½” nominal diameter
Input Power
20 - 28 VAC 50/60Hz, 250 mA maximum
20 - 28 VDC, 250 mA maximum
Liquid Temperature Range
15° to 250° F
Ambient Temperature Range
-20° to 150° F
Operating Pressure
400 PSI maximum
Pressure Drop
Less than 0.1 psi at 12 ft/s velocity in 3” and larger pipes
Materials of Construction
Wetted metal components - 316L stainless steel
Sensor head - Xarec
Electronics enclosure - Powder coat painted cast aluminum
Enclosure Rating
Weather-tight, NEMA 4
Electrical Connections
10’ of PVC jacketed cable with ½” NPT conduit connection
Output Signal(s)
Analog output (Isolated), selectable 4-20 mA, 0-10 V or 0-5 V
Frequency output, 0-15 V peak pulse, 0-500 Hz maximum
Scalable pulse output, isolated dry contact, contact rating 50 VDC @ 100 mA
maximum, pulse duration: 0.5, 1, 2 or 6 seconds
This product is covered by one or more of the following patents: 6,431,011 and 6,463,807.

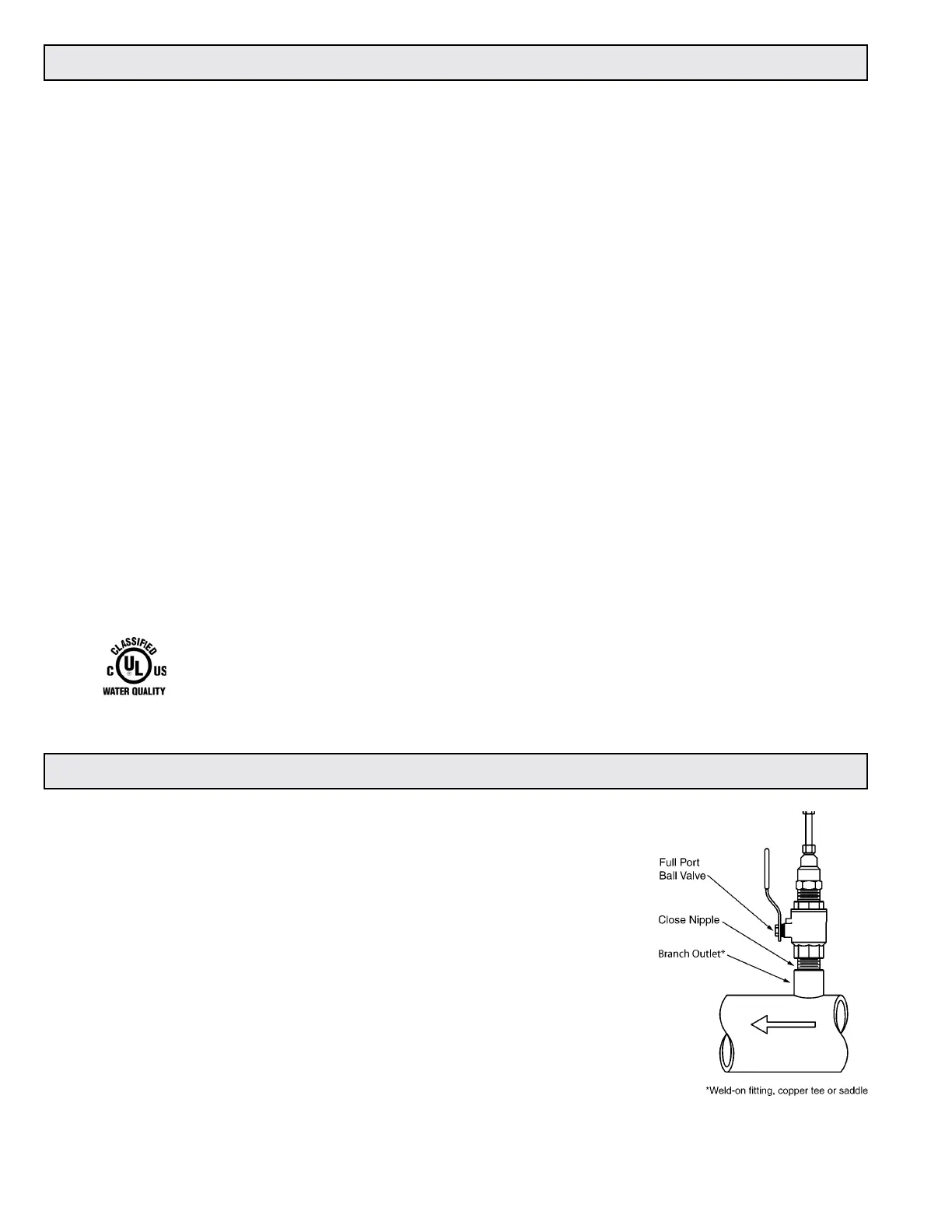

1.4 ADDITIONAL REQUIRED HARDWARE
All ONICON insertion type meters can be installed and removed via
a 1” or larger full port ball valve without system shutdown. The terms
“Standard” and “Hot Tap” refer to the installation method of the
isolation valve kit only.
Standard Installation Hardware: For new construction or scheduled
shutdown; once kit is installed, the ow meter can be installed or
removed without system shutdown.
Hot Tap Installation Hardware: For applications which require the
access hole in the pipe to be drilled through the valve using a wet
tap drilling machine while the hydronic system is pressurized and
operating.
NOTE: Installation hardware materials vary greatly based on pipe
material, pipe size and standard vs. hot tap versions.
ELECTROMAGNETIC INSERTION FLOW METER
NSF/ANSI 61 <MH60590>
ALSO CLASSIFIED
IN ACCORDANCE WITH
NSF/ANSI 372
