Flow and Energy Measurement

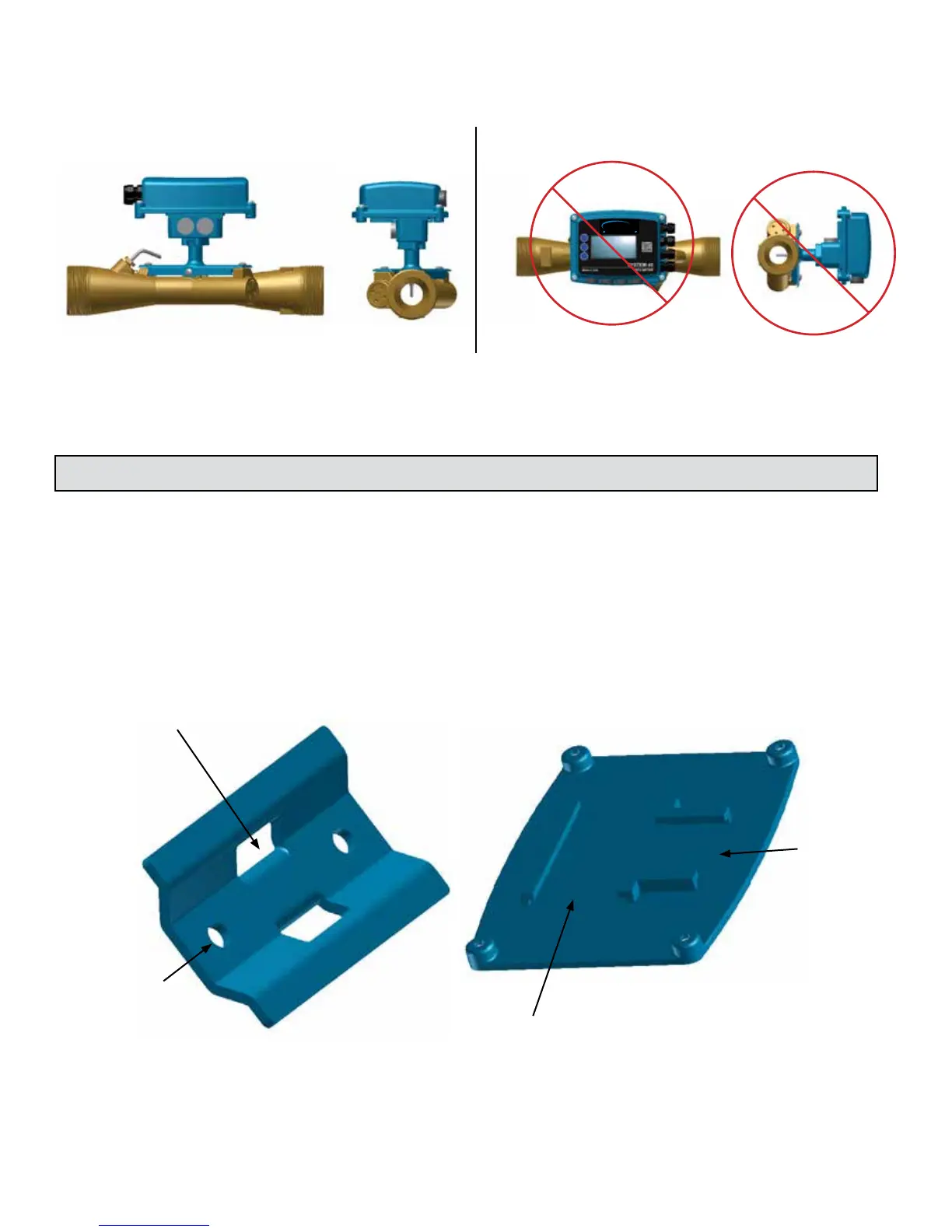

Side View
Do not orient meter as shown above
Meter Sizes 1¼” - 2½”
Preferred Orientation for Horizontal Housing
Front ViewSide ViewSide View
Slot for Pipe
Clamps
0.219”
Slide Tracks
Slide Tracks
3.3 REMOTE MOUNTING THE ENCLOSURE
The F-4600 with display is provided with a mounting bracket and the cables required for remote
mounting up to 5 Ft (1.5 m) length. This cable length must not be altered.
The remote mounting bracket has two 0.219” mounting holes designed to accommodate #10
screws. It also has parallel slots that allow for the use of pipe clamps when mounting the
enclosure on a stanchion or pipe. The bracket may be used as a template for marking locations for
holes.
