Onkyo HT-R380 Instruction Manual

12
En

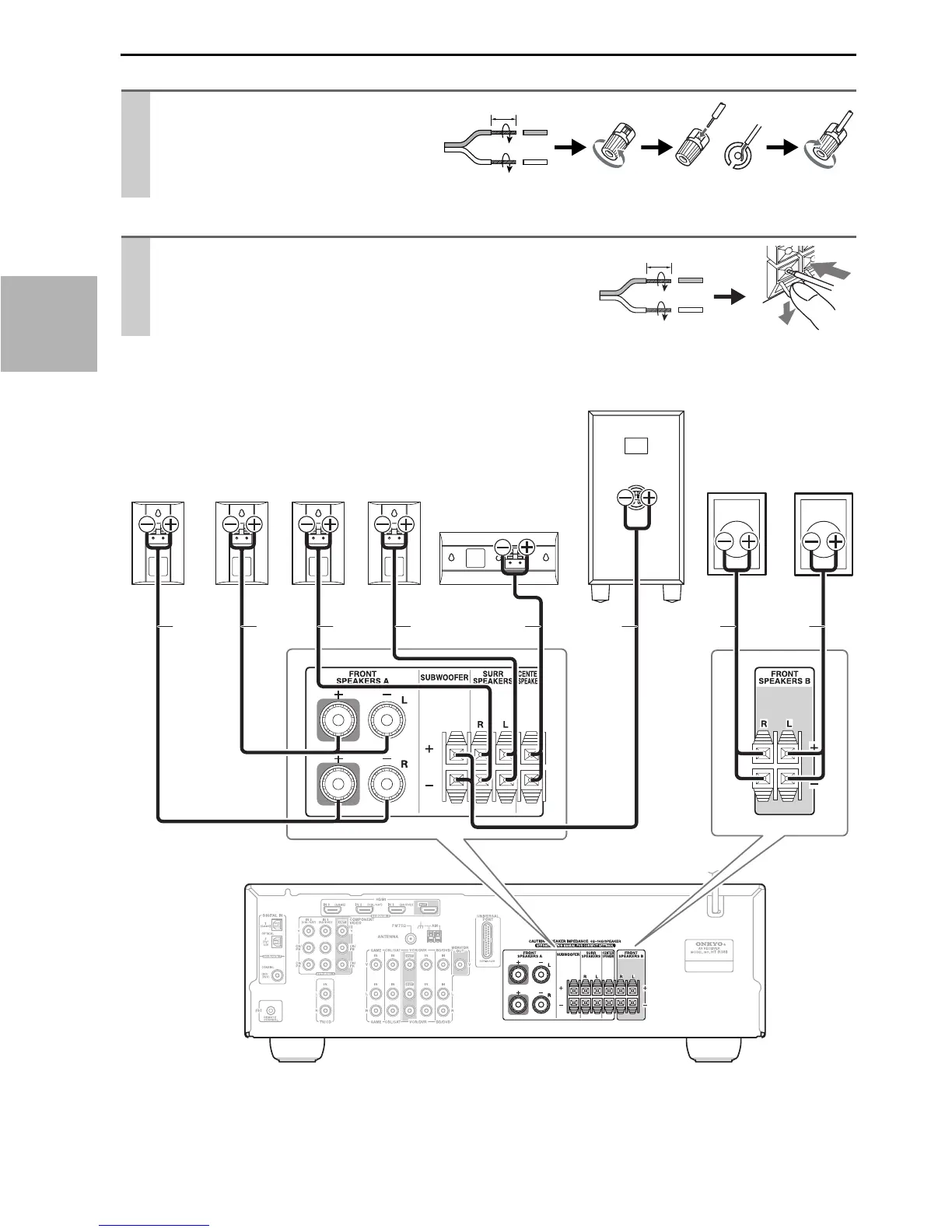

Connecting the Speaker Cables
Screw-type speaker terminals
Push-type speaker terminals
The following illustration shows which speaker should be connected to each pair of terminals.
Strip 12 to 15 mm of insulation from the
ends of the speaker cables, and twist the
bare wires tightly, as shown.
(Supplied speaker cables are already
stripped.)
Strip 10 to 12 mm of insulation from the ends of the speaker
cables, and twist the bare wires tightly, as shown.
(Supplied speaker cables are already stripped.)
12 to 15 mm
10 to 12 mm
Red
White
Gray Blue
Green Purple
Red White
Front
left
speaker A
Surround
right
speaker
Surround
left
speaker
Center speaker
Subwoofer
Front
right
speaker A
Front
left
speaker B
Front
right
speaker B

Onkyo HT-R380 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Weight	17.6 lbs
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
HDMI Switching	Yes
Bluetooth	No
HDMI Version	1.4a
Power Output	100W per channel (6 ohms, 1 kHz, 1% THD, 1 channel driven)
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio
DSP Presets	Game, Movie, Music
Input Video Formats	HDMI
Audio D/A Converter	24bit / 192kHz
Inputs	HDMI, Composite, Optical, Coaxial
Outputs	HDMI, Composite
