Onkyo HT-R380 Instruction Manual

8
En
For detailed information, see the pages in parentheses.

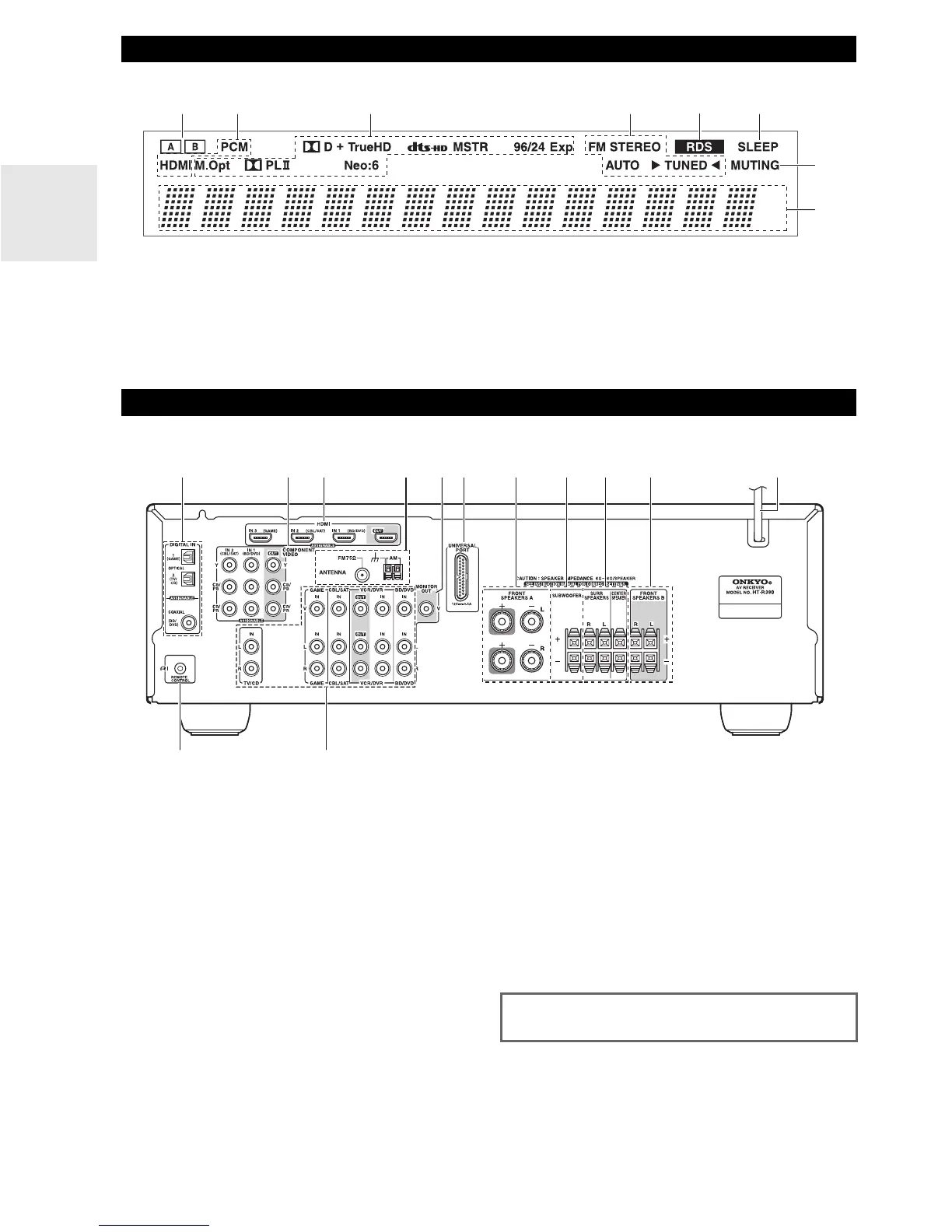

a A and B speaker indicators (➔ 10, 20)
b Audio input indicators
c Listening mode and format indicators (➔ 19, 25)
d Tuning indicators (➔ 21)
e RDS indicator (➔ 22)
f SLEEP indicator (➔ 20)
g MUTING indicator (➔ 20)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g FRONT SPEAKERS A terminals
h SUBWOOFER terminals
i SPEAKERS terminals
(SURR, CENTER)
j FRONT SPEAKERS B terminals
k Power cord
l u REMOTE CONTROL jack
m Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
Display
bcaef
h
g
d
Rear Panel
abc
d
k
ef
g
h i j
l
m
See “Connecting the AV Receiver” for connection infor-
mation (➔ 11 to 17).

Onkyo HT-R380 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Weight	17.6 lbs
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
HDMI Switching	Yes
Bluetooth	No
HDMI Version	1.4a
Power Output	100W per channel (6 ohms, 1 kHz, 1% THD, 1 channel driven)
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio
DSP Presets	Game, Movie, Music
Input Video Formats	HDMI
Audio D/A Converter	24bit / 192kHz
Inputs	HDMI, Composite, Optical, Coaxial
Outputs	HDMI, Composite
