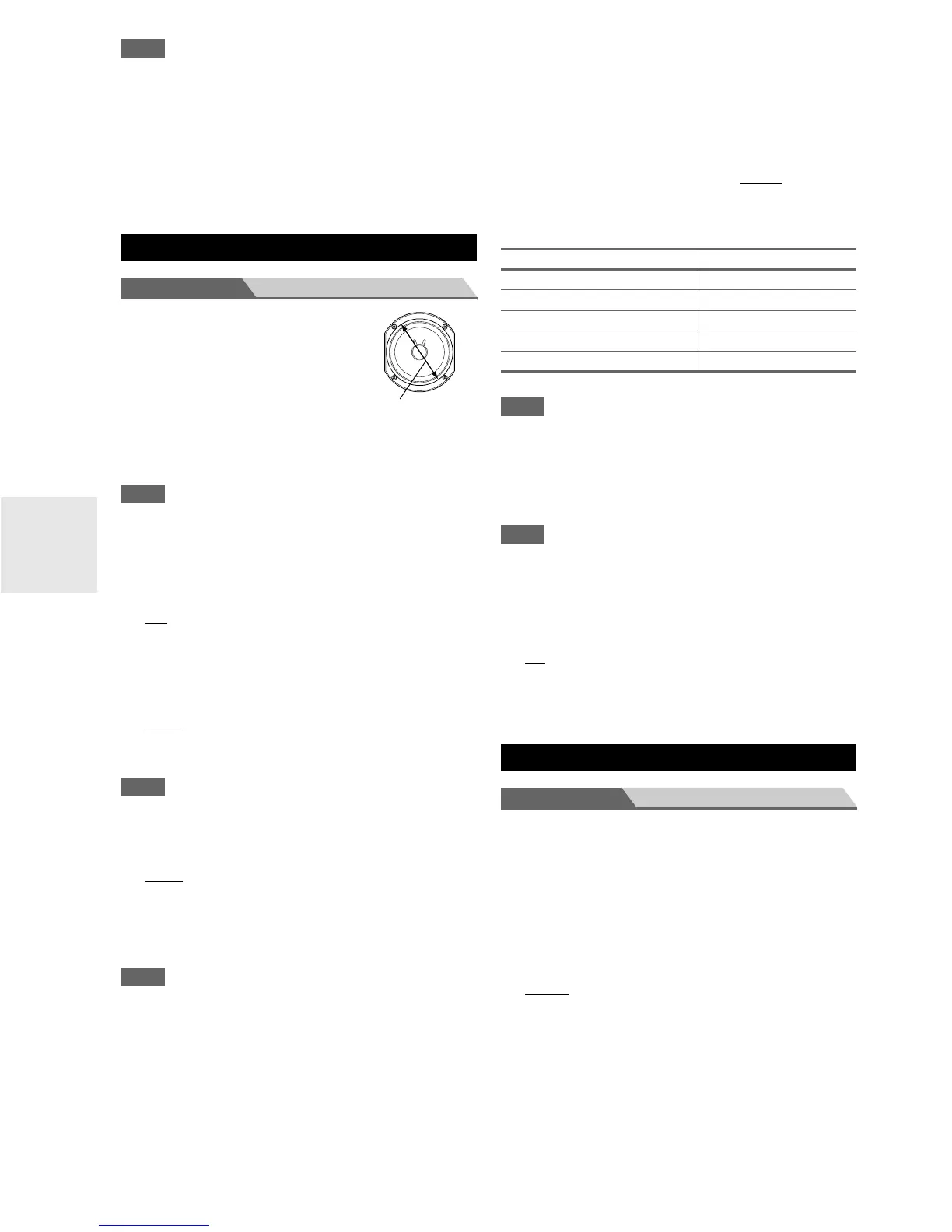

30
En
Note
• When an HDMI IN is assigned to an input selector in “HDMI
Input” (➔ 29), this input assignment is automatically set to the
same HDMI IN. And in addition to the usual inputs (e.g., COAX,
etc.), you can also select HDMI inputs.
• Available sampling rate for PCM signals from a digital input
(optical and coaxial) is 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.
• If you connect a component (such as UP-A1 Dock that seated
iPod) to the UNIVERSAL PORT jack, you cannot assign any
input to PORT selector.
Menu Sp Config
This section explains how to specify
which speakers are connected and their
sizes.
For speakers with a cone diameter larger
than 16 cm, specify Large (full band).
For those with a smaller diameter, specify
Small (default crossover 120 Hz).
The crossover frequency can be changed in the “Crossover
(Crossover Frequency)” (➔ 30).
Note
• Speaker Configuration, Crossover Frequency, and Double Bass
settings cannot be changed while headphones are connected, or
“Audio TV OUT” setting is set to
“On” (➔ 32), or speaker set
B is on.
■ Subwoofer
` Yes
:
Select if a subwoofer is connected.
` No:
Select if no subwoofer is connected.
■ Front
` Small:
` Large:
Select based on the cone diameter.
Note
•If the “Subwoofer” setting is set to “No”, this setting is fixed at
“Large” and does not appear.
■ Center
*1*2
, Surround
*1*2
` Small:
` Large:
Select based on the cone diameter.
` None:
Select if no speaker is connected.
Note
*1
If the “Front” setting is set to “Small”, the “Large” option
cannot be selected.
*2
While Speakers B is on, these speakers output no sound
(➔ 10).
■ Crossover (Crossover Frequency)
This setting is advantageous for the speakers that you
specified as “Small” in the “Sp Config (Speaker Con-
figuration)” (➔ 30). To get the best bass performance
from your speaker system, you need to set the crossover
frequency according to the size and frequency response
of your speakers.
` 40Hz, 50Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz,
200Hz:
Use the diameter of the smallest speaker in your system
when choosing the crossover frequency.
*
Choose the setting suitable for the speaker.
Note
• For a more accurate setting, look up the frequency response in
the manuals supplied with your speakers and set accordingly.
• Choose a higher crossover frequency if you want more sound
from your subwoofer.
■ Double Bass
Note
• This function can be set only if the “Subwoofer” setting is set to
“Ye s”, and the “Front” setting is set to “Large” (➔ 30).
With the Double Bass function, you can boost bass out-
put by feeding bass sounds from the front left, right, and
center channels to the subwoofer.
` On
:
Double Bass function on.
` Off:
Double Bass function off.
Menu Sp Distance
Here you can specify the distance from each speaker to the
listening position so that the sound from each speaker
arrives at the listener’s ears as the sound designer
intended.
■ Unit
` feet:
Distances can be set in feet. Range: 1ft to 30ft in
1 foot steps.
` meters
:
Distances can be set in meters. Range: 0.3m to 9.0m
in 0.3 meter steps.
Sp Config (Speaker Configuration)
Cone diameter
Speaker cone diameter Crossover frequency
Over 20 cm
40/50/60 Hz
*
16 to 20 cm 80 Hz
13 to 16 cm 100 Hz
9 to 13 cm 120 Hz
Under 9 cm
150/200 Hz
*
Sp Distance (Speaker Distance)
