Onkyo HT-R380 Instruction Manual

37
En
Controlling iPod
Models sold are different depending on the region.

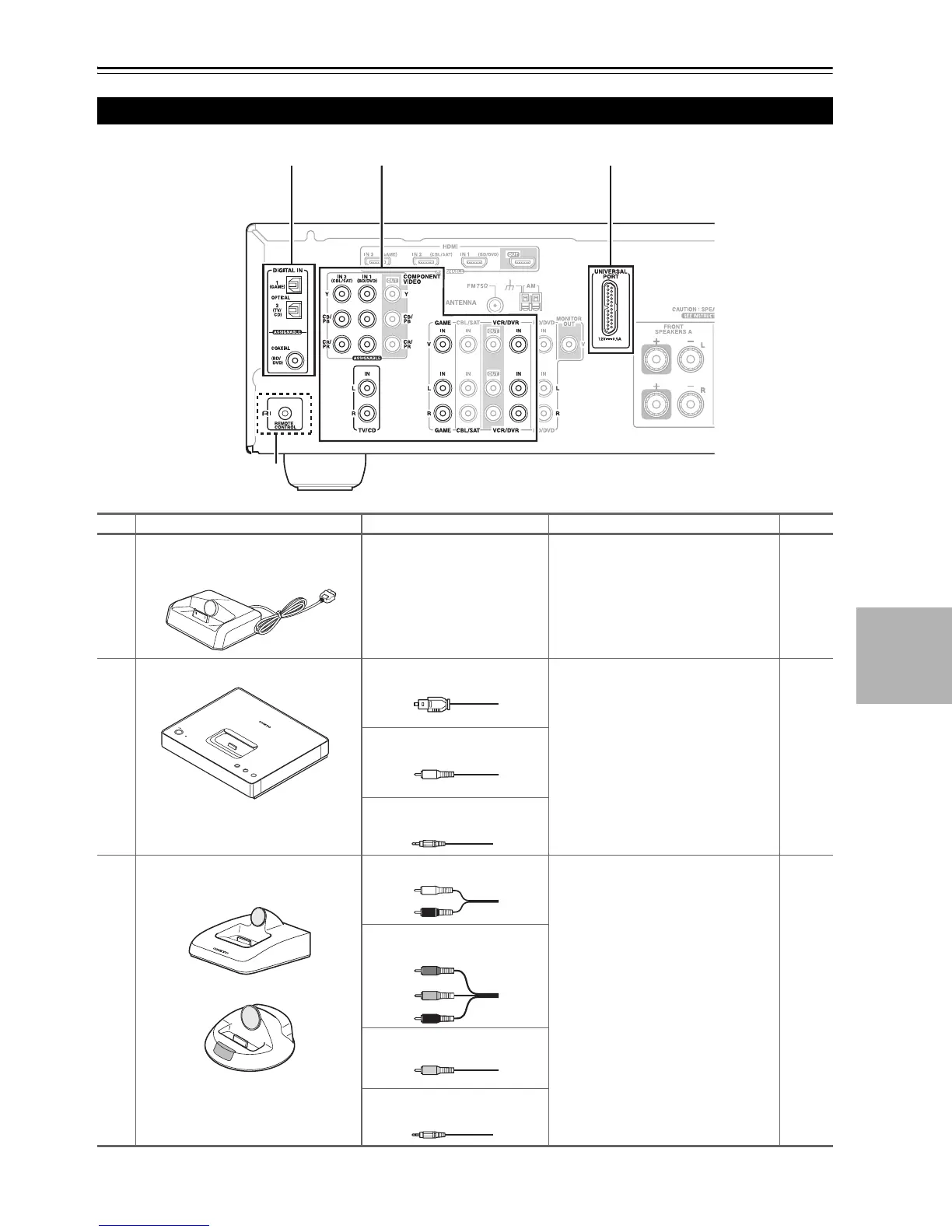

Connecting an Onkyo Dock
CB A
*1
No. Onkyo Dock Cable Note Page
A
UP-A1 Dock
(Universal Port Option Dock)
— • When UP-A1 Dock that seated iPod is
connected, the power consumption on
standby mode slightly increases.
• You can control your iPod when
“PORT” is selected as the input source.
• See the UP-A1 Dock’s instruction man-
ual for more information.
(➔ 38)
B
ND-S1 Optical digital audio • See the ND-S1’s instruction manual for
more information.
*1
The ND-S1’s audio outputs are digi-
tal outputs. If the digital audio input
on your AV receiver cannot be
assigned to an input selector whose
Input Display can be set to “DOCK”,
do not connect the u cable, other-
wise a malfunction may occur.
(➔ 38)
Coaxial digital audio
u cable
C
RI Dock Analog audio (RCA) • See the RI Dock’s instruction manual
for more information.
*1
To use u (Remote Interactive), you
must make an analog audio connec-
tion (RCA) between the AV receiver
and the RI dock.
(➔ 38)
Component video
Composite video
u cable
*1
Y
P
B/CB
PR/CR
*1

Onkyo HT-R380 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Weight	17.6 lbs
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
HDMI Switching	Yes
Bluetooth	No
HDMI Version	1.4a
Power Output	100W per channel (6 ohms, 1 kHz, 1% THD, 1 channel driven)
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio
DSP Presets	Game, Movie, Music
Input Video Formats	HDMI
Audio D/A Converter	24bit / 192kHz
Inputs	HDMI, Composite, Optical, Coaxial
Outputs	HDMI, Composite
