13
En

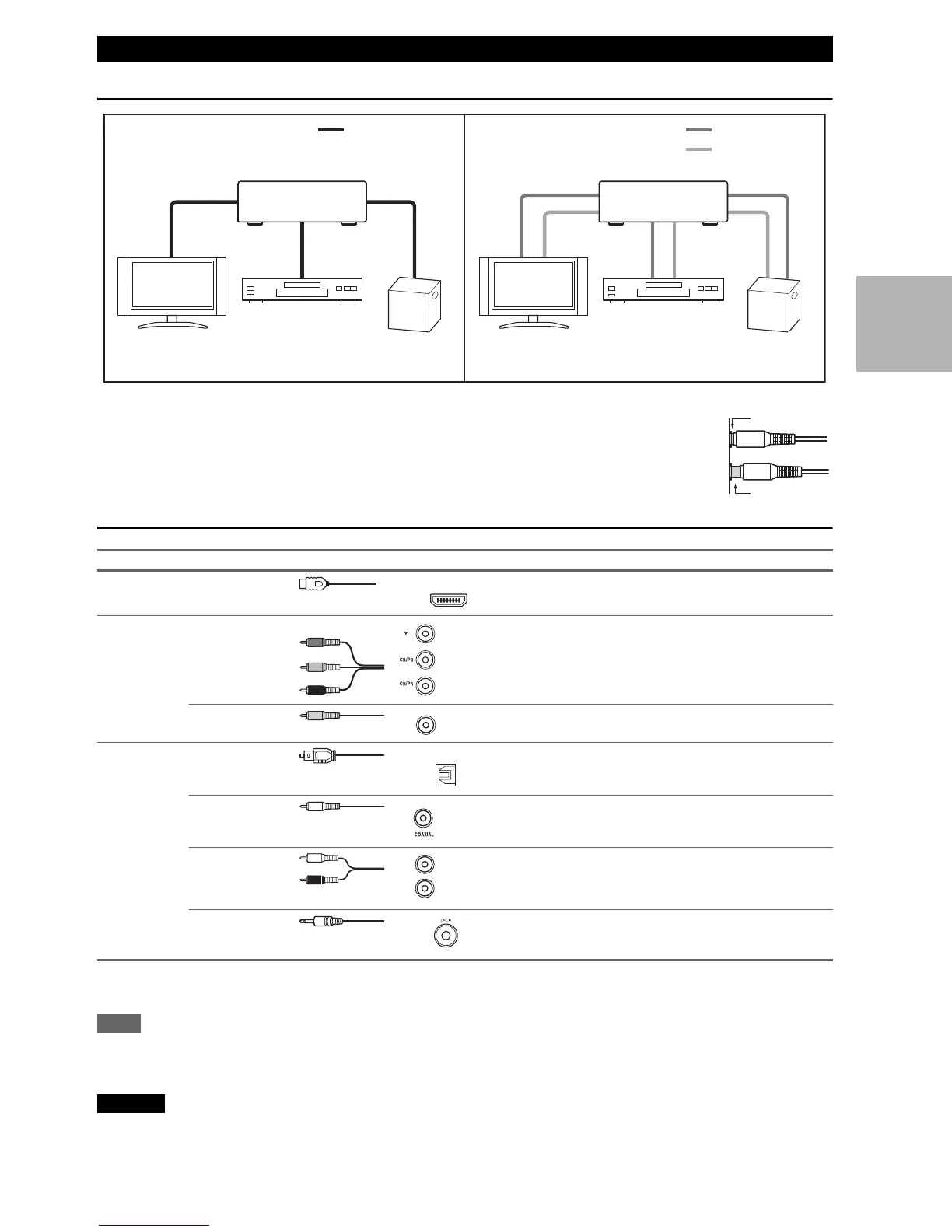

Connected image with AV components
• Before making any AV connections, read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
• Push plugs in all the way to make good connections (loose connections can cause noise or malfunc-
tions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
AV Cables and Jacks
*
Available sampling rate for PCM input signal is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI con-
nection.
Note
• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed.
Push plugs in all the way.
Caution
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
About AV Connections
Signal Cable Jack Description
Video and
Audio
HDMI HDMI connections can carry digital video and audio. The
AV receiver is compliant with HDMI.
Video Component video Component video separates the luminance (Y) and color
difference signals (P
R, PB), providing the best picture qual-
ity (some TV manufacturers label their component video
sockets slightly differently).
Composite video Composite video is commonly used on TVs, VCRs, and
other video equipment.
Audio Optical digital
audio
Optical digital connections allow you to enjoy digital
sound such as PCM
*
or Dolby Digital. The audio quality is
the same as coaxial.
Coaxial digital
audio
Coaxial digital connections allow you to enjoy digital
sound such as PCM
*
or Dolby Digital. The audio quality is
the same as optical.
Analog audio
(RCA)
Analog audio connections (RCA) carry analog audio.
3.5 mm Stereo
mini plug
This cable carries analog audio.
HDMI cable Other cables
: Video & Audio
: Video
: Audio
Game console
Blu-ray Disc/
DVD player
TV, projector, etc.
Game console
Blu-ray Disc/
DVD player
TV, projector, etc.
AV receiverAV receiver
Right!
Wrong!
HDMI
Y
P
B/CB
PR/CR
Green
Blue
Red
V
Yellow
OPTICAL
Orange
L
R
White
Red
