Onkyo HT-R380 Instruction Manual

7
En
Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (➔ 18)
b STANDBY indicator (➔ 18)
c HDMI THRU indicator (➔ 33)
d SPEAKERS A and B buttons (➔ 10, 20)
e Remote control sensor (➔ 4)
f TONE LEVEL and TONE buttons (➔ 36)
g Display (➔ 8)
h LISTENING MODE buttons (➔ 25)
i RT/PTY/TP button (➔ 22)
j MEMORY button (➔ 22)
k TUNING MODE button (➔ 21)
l DISPLAY button (➔ 19)
m SETUP button (➔ 28)
n TUNING, PRESET (➔ 21 to 22), arrow and
ENTER buttons
o RETURN button
p MASTER VOLUME control (➔ 19)
q MUSIC OPTIMIZER button (➔ 19, 35)
r PHONES jack (➔ 20)
s Input selector buttons (➔ 19)
t AUX INPUT LINE IN jack (➔ 15)

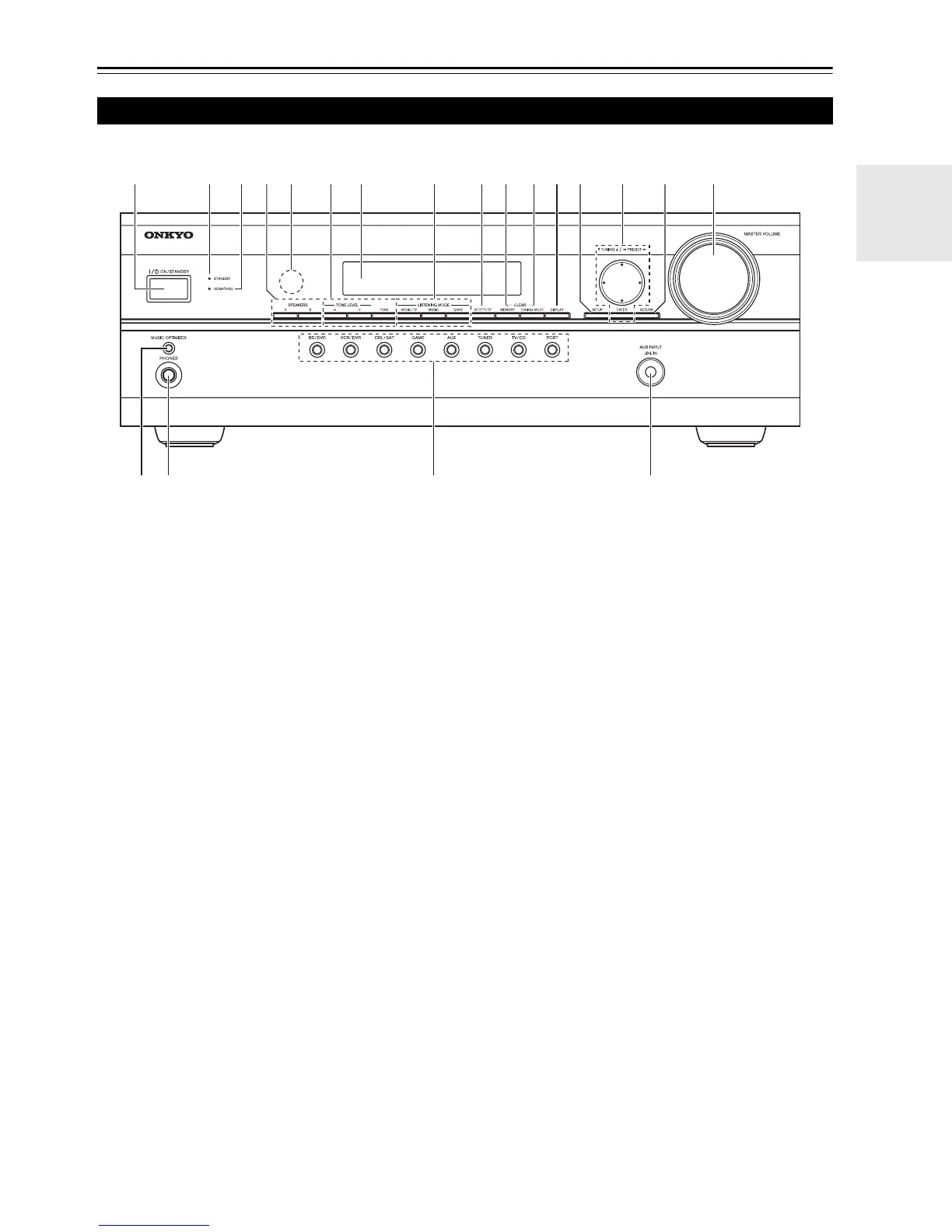

Front Panel
a
st
bcde fhgijklmnop
r
q

Onkyo HT-R380 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Weight	17.6 lbs
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
HDMI Switching	Yes
Bluetooth	No
HDMI Version	1.4a
Power Output	100W per channel (6 ohms, 1 kHz, 1% THD, 1 channel driven)
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio
DSP Presets	Game, Movie, Music
Input Video Formats	HDMI
Audio D/A Converter	24bit / 192kHz
Inputs	HDMI, Composite, Optical, Coaxial
Outputs	HDMI, Composite
