Connecting the AV Receiver/AV Amplifier—Continued
Hooking Up the Multichannel DVD Input

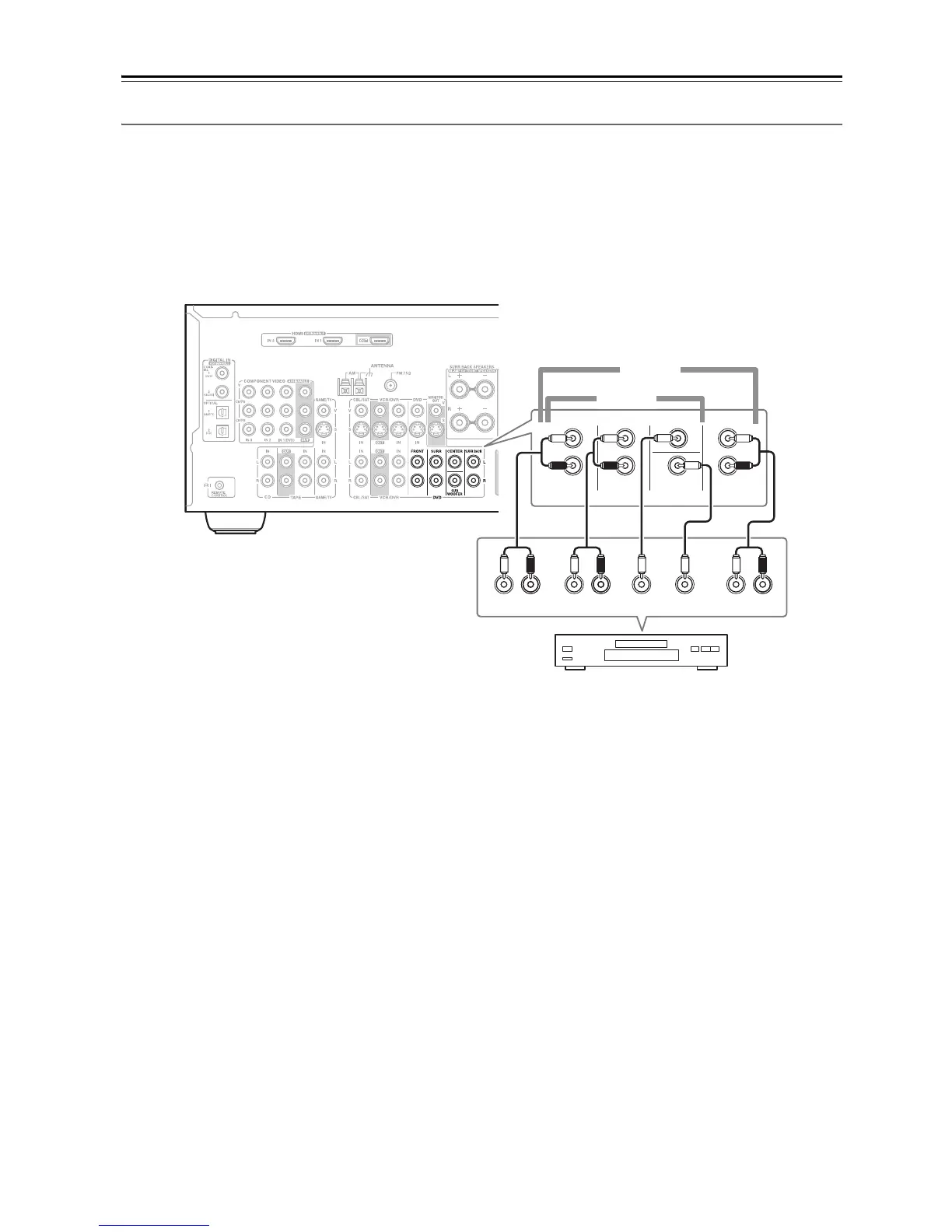

If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel
analog audio output, you can connect it to the AV receiver/AV amplifier’s multichannel DVD input.
Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver/AV amplifier’s DVD
IN FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio
output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the
AV receiver/AV amplifier’s SURR BACK L/R jacks.
R
FRONT
LLR
SURROUND CENTER SUB
WOOFER
FRONT SURR
DVD
SUB
WOOFER
CENTER
R
L
R
L
LR
SURR
BACK
SURR BACK
5.1 ch
7.1 ch
DVD player
