Connecting the AV Receiver/AV Amplifier—Continued
• With connection , you can play and record and listen in Zone 2.
• To connect the recorder digitally for playback, use connections and , or and .

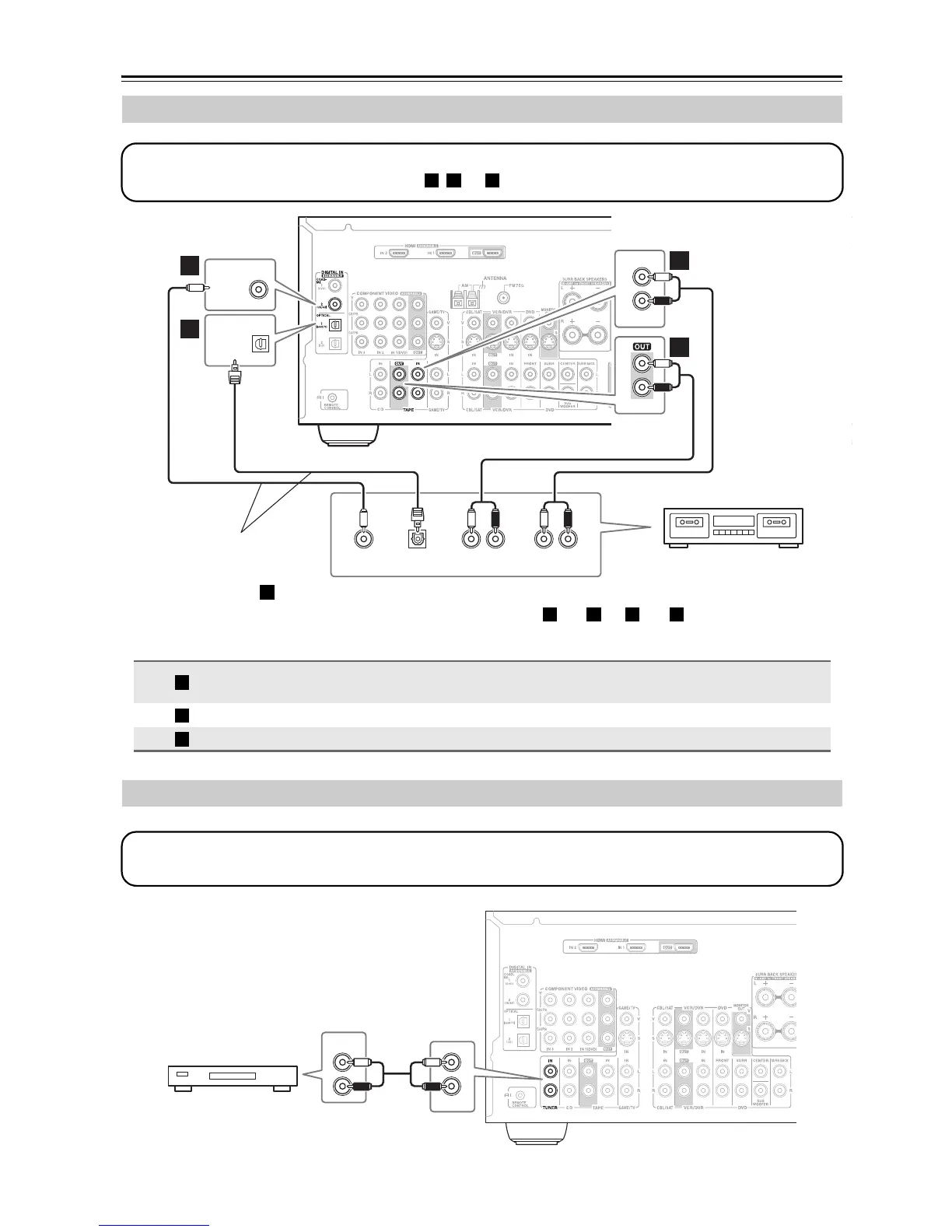

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver/AV amplifier Signal flow Cassette, CDR, MD, or DAT recorder
TAPE IN L/R
TAPE OUT L/R


Analog audio L/R output
Analog audio L/R input
DIGITAL COAXIAL IN 2 (CBL/SAT)

Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME/TV)

Digital optical output
Connecting a Tuner (TX-SA605/8560 only)
COAXIAL
OUT
AUDIO
IN
LR
OPTICAL
OUT
L
R
IN
TAPE
AUDIO
OUT
LR
L
R
TAPE
COAXIAL
OPTICAL
IN 2
(CBL/SAT)
IN 1
(GAME/TV)
b
c
a
a
Step 1:
Choose a connection that matches the recorder ( , , or ), and then make the connection.
a b c
Cassette, CDR, MD, etc.
Connect one
or the other
a
a b a c
a
b
c
Audio Connection
Connect your tuner's analog audio output jacks to the AV amplifier's TUNER L/R IN jacks with an audio cable.
IN
L
R
TUNER
AUDIO
OUTPUT
L
R
Tuner
