Step 6 – Turntable
Needed parts:
 Turntable_Base_small.stl
 Nema 17 (min. 40Ncm)
 M3x8mm (4x)
 Rotary_Arm.stl (2x)
 Turntable_Adapter.stl
Description:

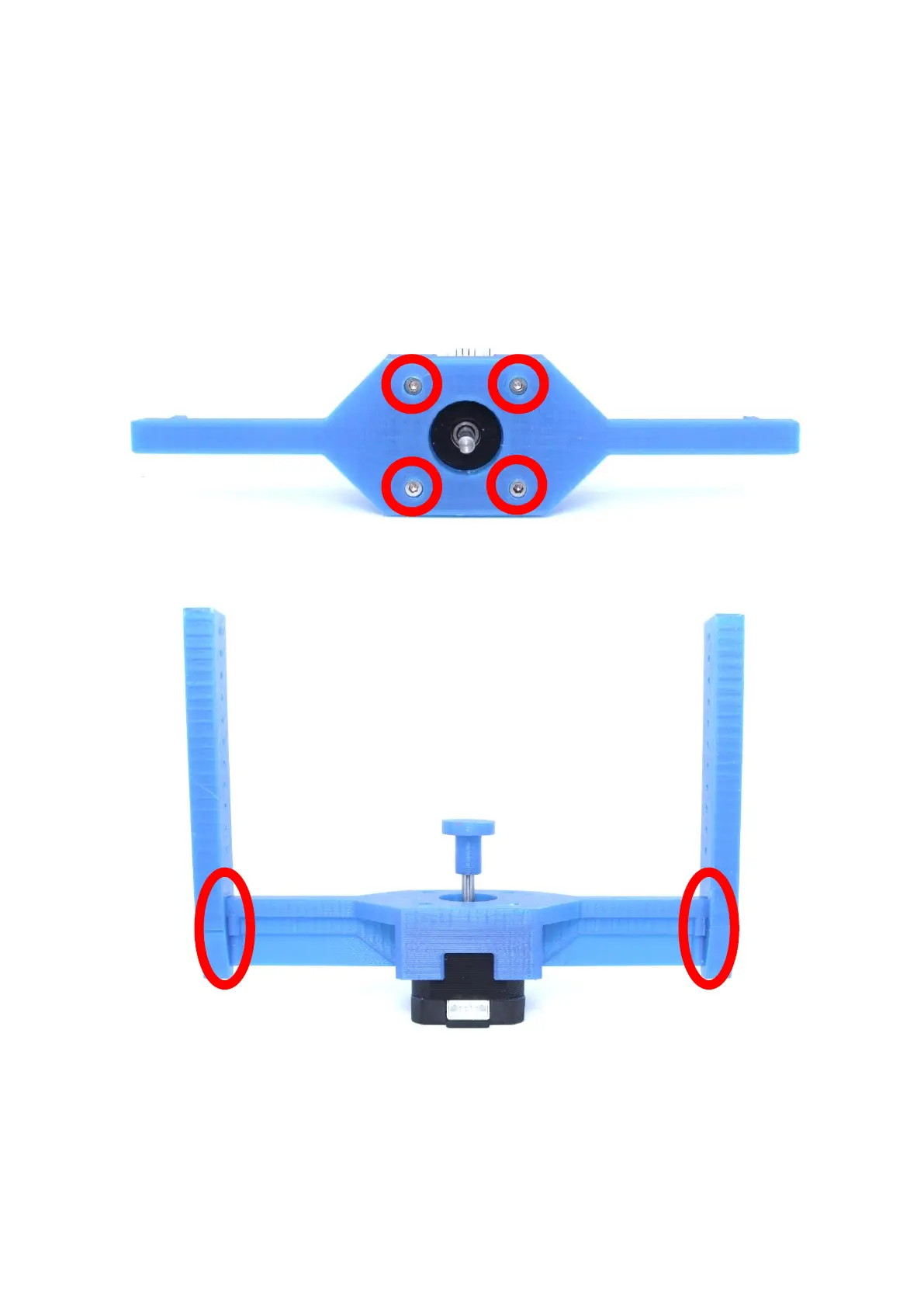

(1) Connect the Nema 17 with 4 M3x8mm screws with Turntable_Base_small.stl:
(2) Place the Rotary Arm (2x) on the sides of the turntable_base.stl (red mark) and press any
Turntable_Adapter.stl onto the motor shaft:
Note:
The connections marked red in the second picture can be fixed with super glue if they are too loose.
