Step 7 – Tilting mechanism
Needed parts:
Stand 1 (after step 4b)
Stand 2 (after step 5)
Turntable_Base_small.stl (after step 6)
M3x12mm (2x)
Description:

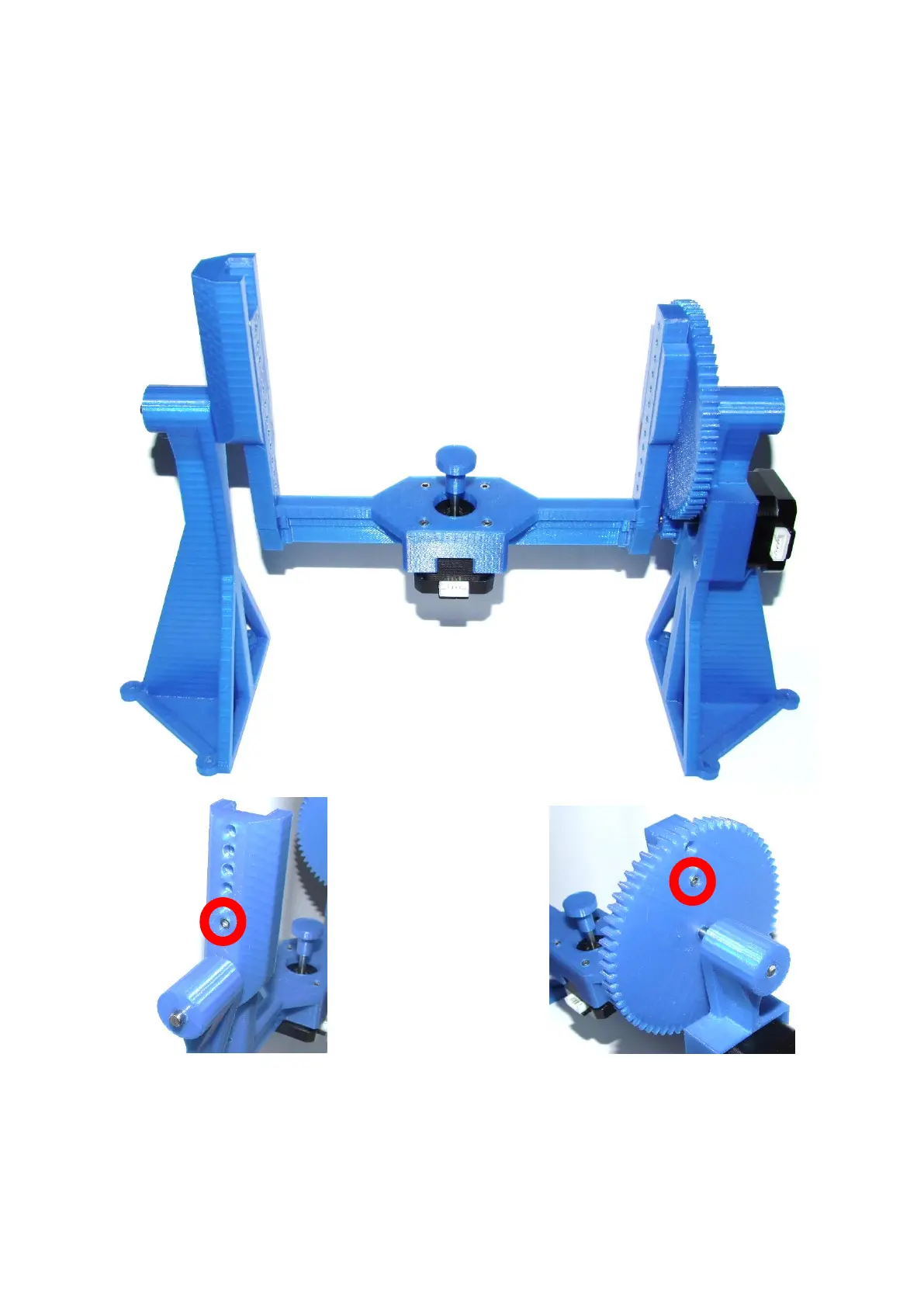

The two M3x12mm screws are screwed laterally into the adapters (red mark), so as to connect the
side stands with the rotating arm (Turntable_Base + Rotary_Arm). The height has to be adapted to
the print object (see next page).
