Step 8 – Setting the Scanning Volume
Description:
Depending on the object, the height of the tilting mechanism must be adjusted. This can be done by
loosening the screws used in step 7 and adjusting the height accordingly. The goal is that the center

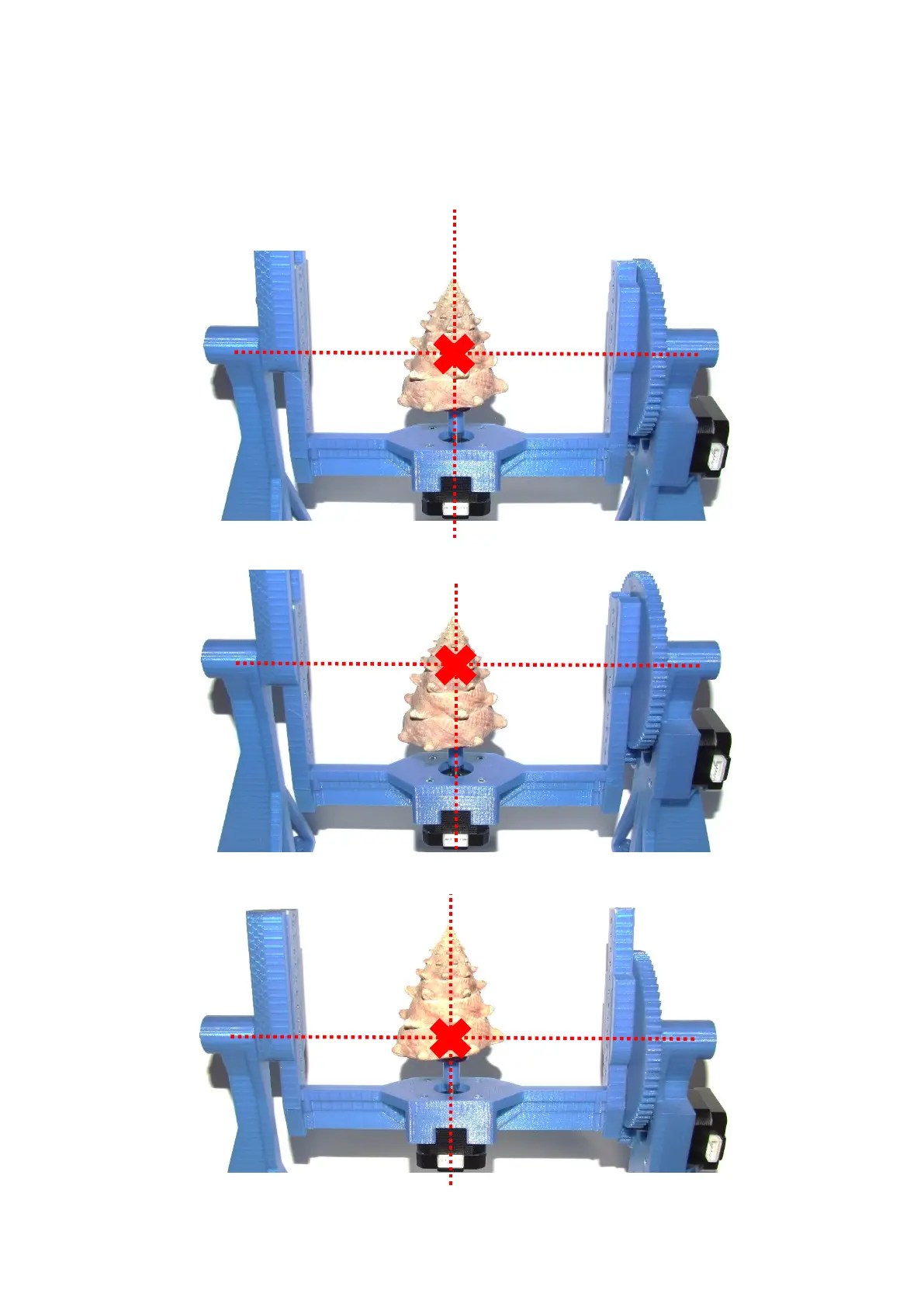

of the object is in the center of the two roational axis, as shown in the following image:
(1) optimal height:
(2) object to low:
(3) object to high:
