OpenScan Classic - Assembly; Step 1 - LCD

7
Assembly
Step 1 – LCD
Needed parts:
 LCD 20x4 with I2C-Modul
 Control_module.stl
 M3x12 (4x)
 M3 nuts (4x)

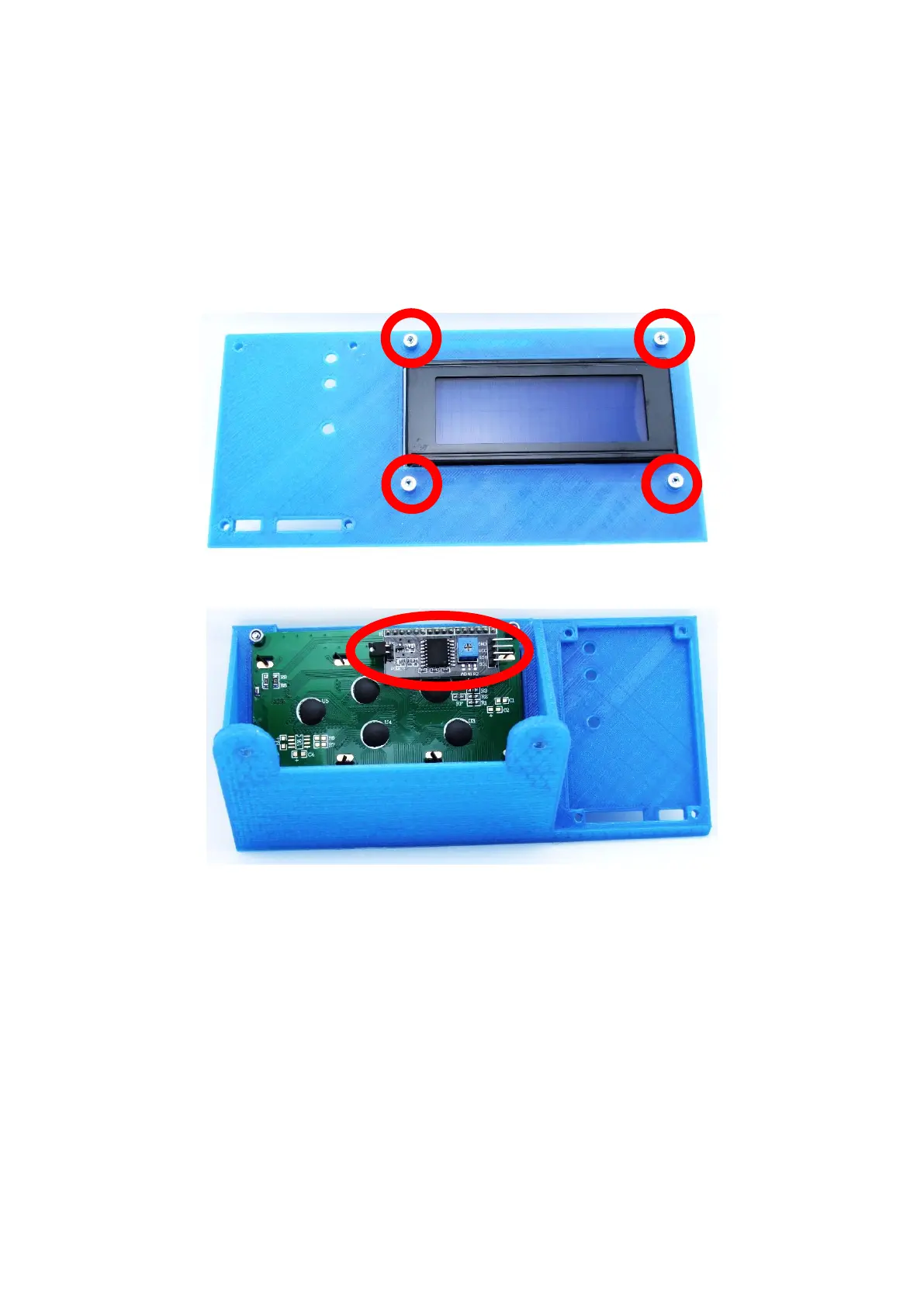

Front:
Back:
Description:
The display is mounted on the back of the control unit using four of the M3x12mm screws. See the
orientation of the display - I2C module top right.
Note:
Depending on the printing accuracy, it may be necessary to pre-drill the screw holes with a 3mm drill
bit.
I2C-Module
