Step 3 – wiring the LCD
Needed parts:
 Control unit (after Step 2
 Jumper Wire 10cm m-f
Back:
Description:

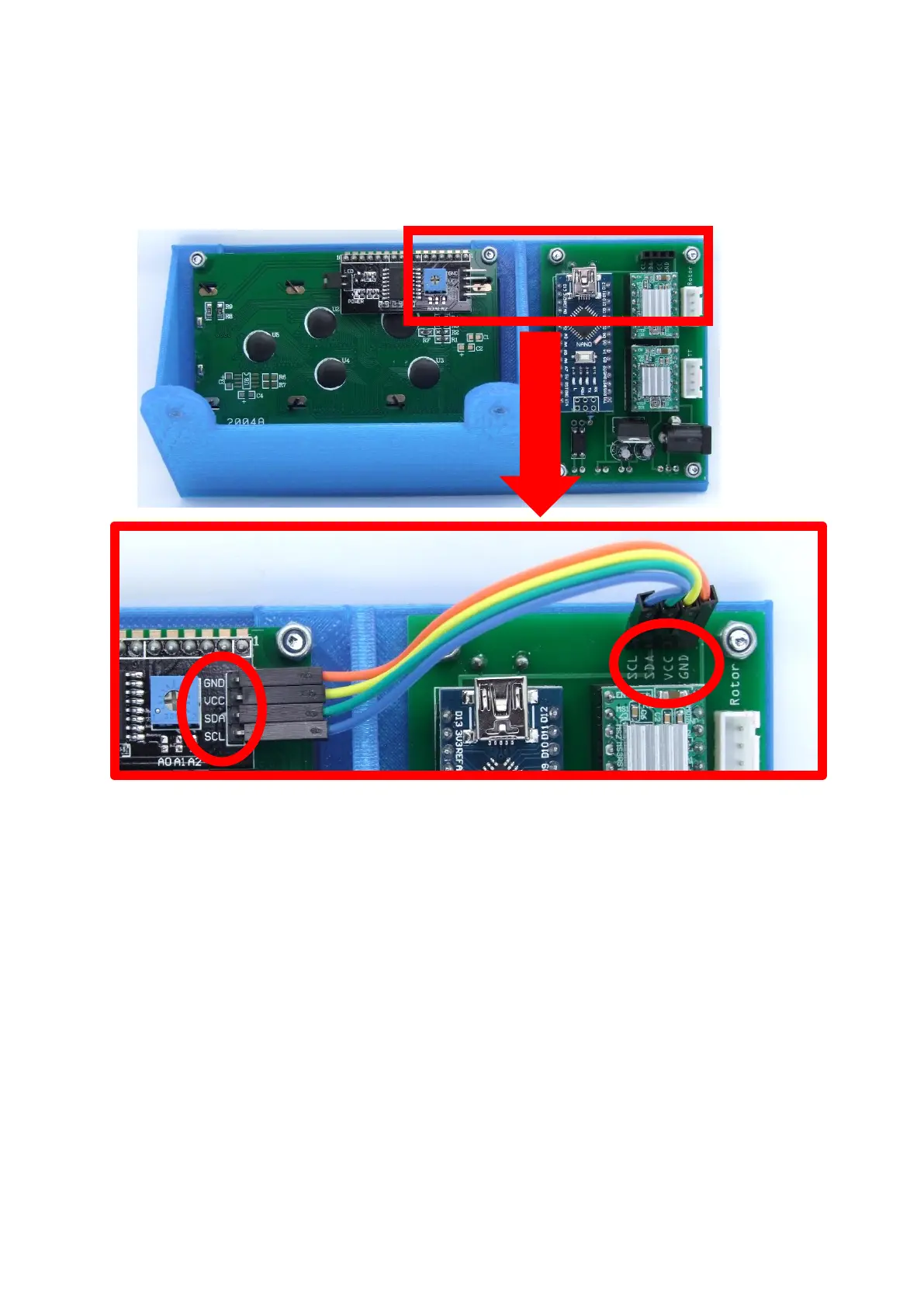

Wire the connections according to their labels. (GND-GND / VCC-VCC / SDA-SDA / SCL-SCL)
Important note:
This step should be double checked to ensure that the pins are properly connected, otherwise the
control unit and / or the display can be destroyed!
