OpenScan Classic - Step 2 - Control Unit

8
Step 2 – Control unit
Needed parts:
 Control unit
 Control_module.stl (nach Schritt 1)
 M3x12 (4x)
 M3 nuts (4x)

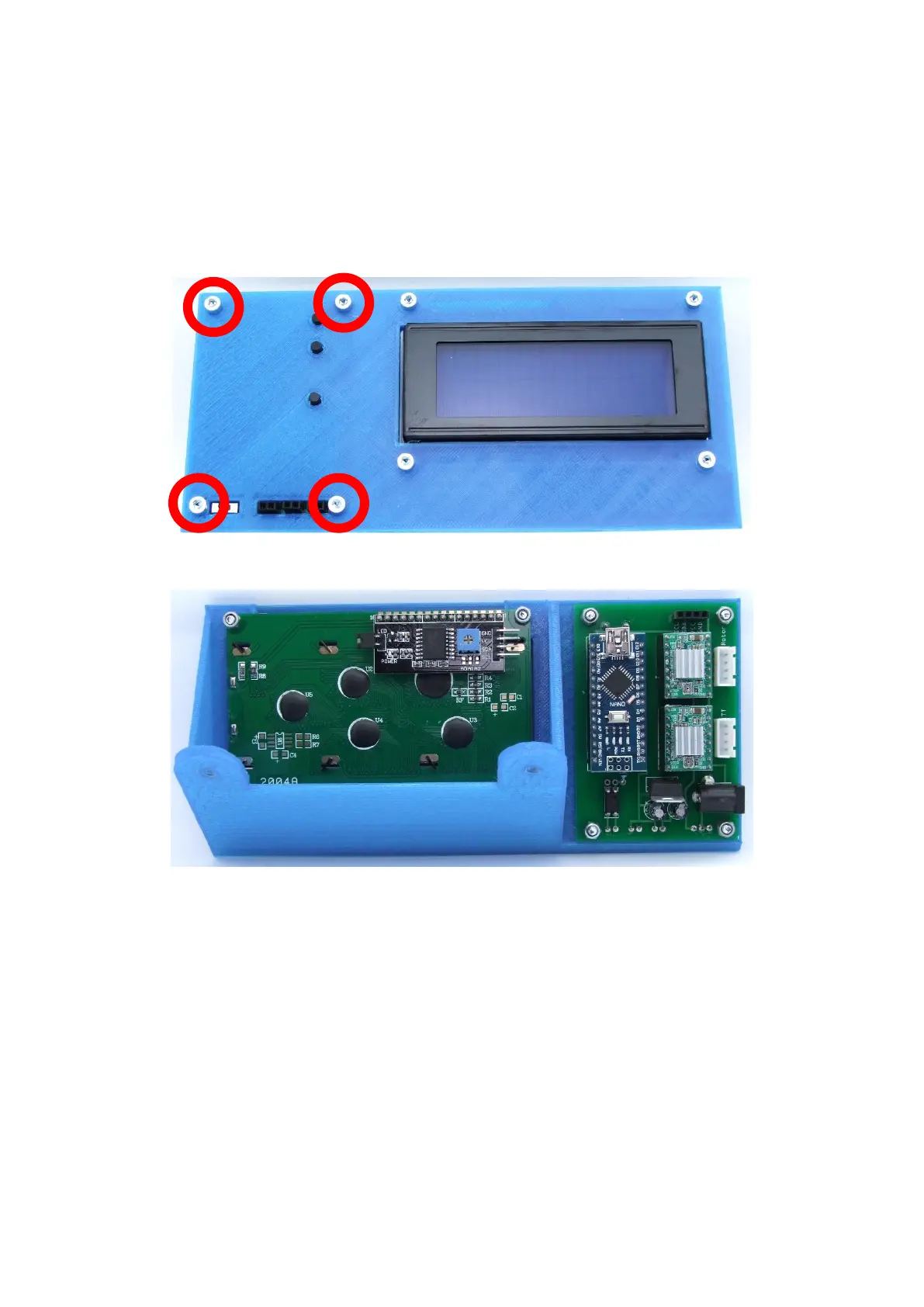

Front:
Back:
Description:
The control unit is mounted on the back of the printed unit using four of the M3x12mm screws.
Note:
Depending on the printing accuracy, it may be necessary to pre-drill the screw holes with a 3mm drill
bit. It may also be necessary to deburr / enlarge the holes for the push buttons on the front.
