Number of Photos per Rotation: 32
Start- und final tilting angle: 75°, i.e. the object is tilted to a maximum of + 75 ° and -75 ° from the
starting position
Number of positions between start and end angle: 5, ie. at -75 °, -37,5 °, 0 °, + 37,5 ° and + 75 ° one
turn of the turntable is made with 32 images. The transition between these angles is done in
predefined steps, defined in Settings "min. vertical angle "- by default, an additional image is taken
every 10° to simplify the alignment between the planes of rotation for the reconstruction software.

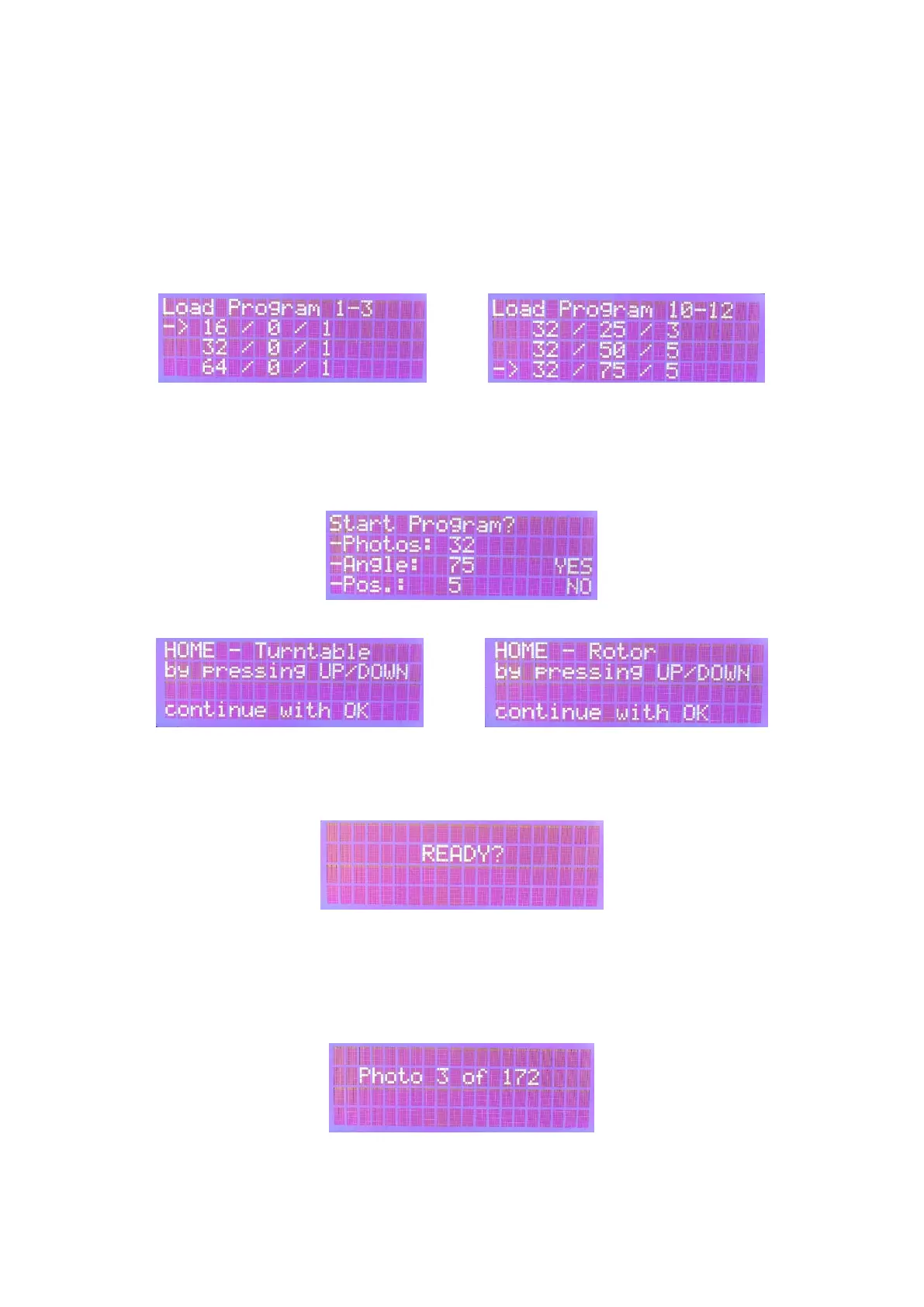

Load Program
There are up to twelve stored programs available, which can be customized in the "Settings" menu.
For the explanation of the values see: "Run last program". The routine is selected via the arrow keys
and confirmed with OK.
Then the program will ask again if the chosen program should be started.
Home – Rotor and Home – Turntable
At the beginning of each program routine, the zero position of the rotor (tilting mechanism) and the
turntable can be selected by using the up / down buttons to select the appropriate position and
confirm with OK.
The start of the program must be confirmed again. The Ok button then starts the routine.
Programmablauf
The progress of the routine is shown on the display
If the scan is finished or has been canceled, you can see the complete number of pictures taken:
