1.2 The ER060AUTOL system
ER060AUTOL is designed to be used for flue gas monitoring in stacks/ducts in combina-
tion with one Opsis LD500 analyzer. The ER060AUTOL consists of one emitter, EM060L
and one receiver RE060AUTOL.
In addition to a cross stack optical monitoring path, the ER060AUTOL provides automatic
calibration function. For fully automated calibration, a calibration unit CU007, must be
used in combination with the analyser and the ER060AUTOL.
The emitter and the receiver are units are mounted on purge air cassettes, PW061. The
PW061 is screwed on 1 1/2” pipe sockets. Port connections on stack are designed for 4”
ANSI flanges.
F

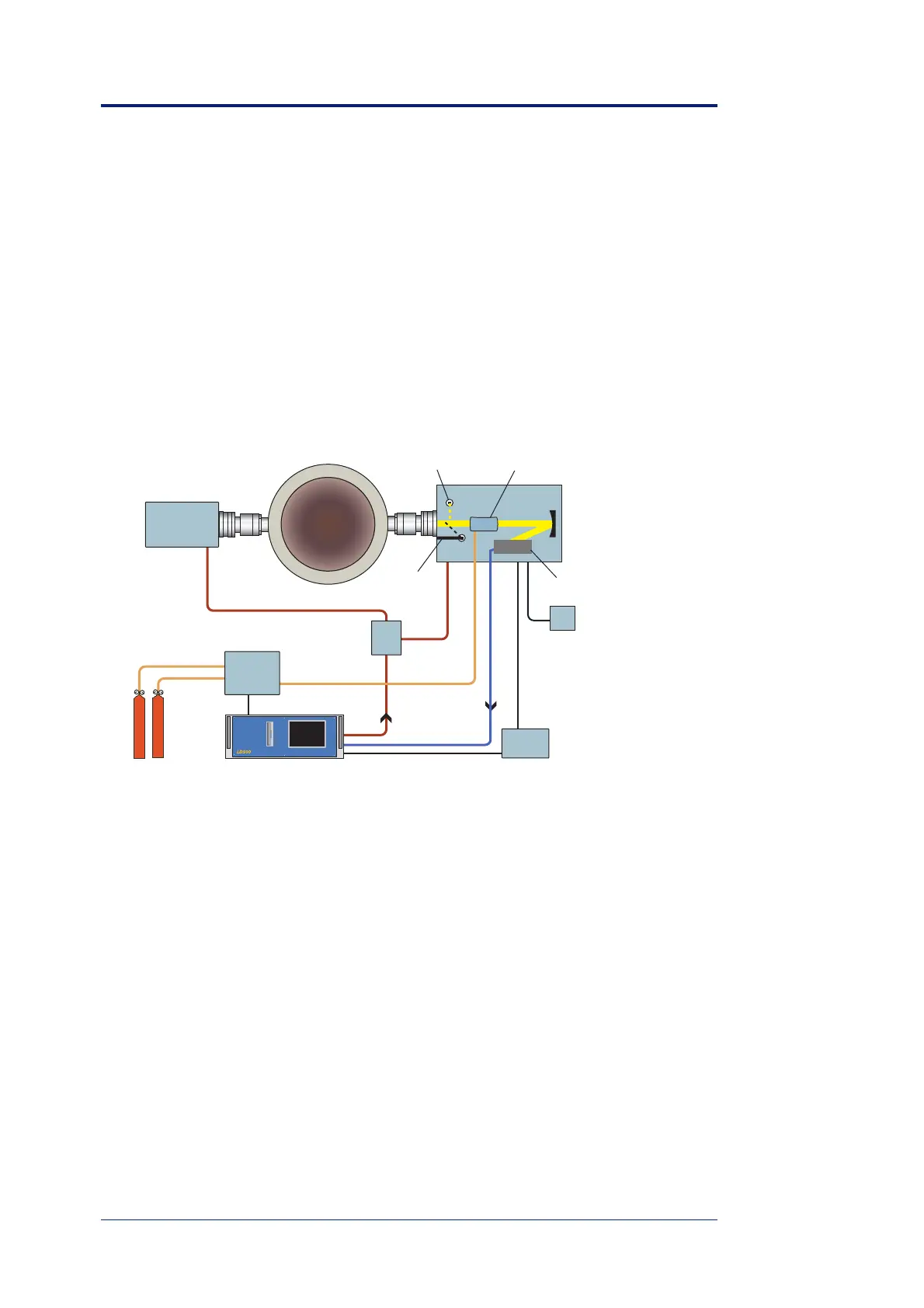

igure 1.4. The ER060AUTOL system designed for fully automated calibration.
LD500
Laser diode gas analyser
RE060AUTOL
receiver
EM060L
emitter
PM101L
power
supply
Fibre optic cable
Communication
cable
Calibration
cell
Fibre collimator
Calibration
gas
Mirror
Cell temperature
Calibration on/of
f
IOMan
Multiplexer
Calibration
unit
Detector
