Emitters and receivers 1
1.1 The ER060L system
The ER060L system consists of an emitter EM060L and a receiver RE060L. A power sup-
ply unit PM101L is needed to power the electronics in the receiver.
1.1.1 Technical specifications
ER060L system EM060L/RE060L
Dimensions (L × W × H) 385 × 200 × 115 mm
Material aluminium/stainless steel
Weight (approx.) 7 kg
Window material quartz
diameter 50 mm
Mirror material quartz substrate
Ambient temperature -20 °C to +45 °C
Degree of protection IP54
Mounting 1 1/2” internally threaded pipe socket
Monitoring path length (recommended) 0.5 to 5 m
Purge air connections 6 mm
Note: If the ambient temperature is exceeding +45 °C it is necessary to cool the elec-
tronics in the receiver, e.g. by purging air through the receiver. The air should be clean
and free from oil and dust.

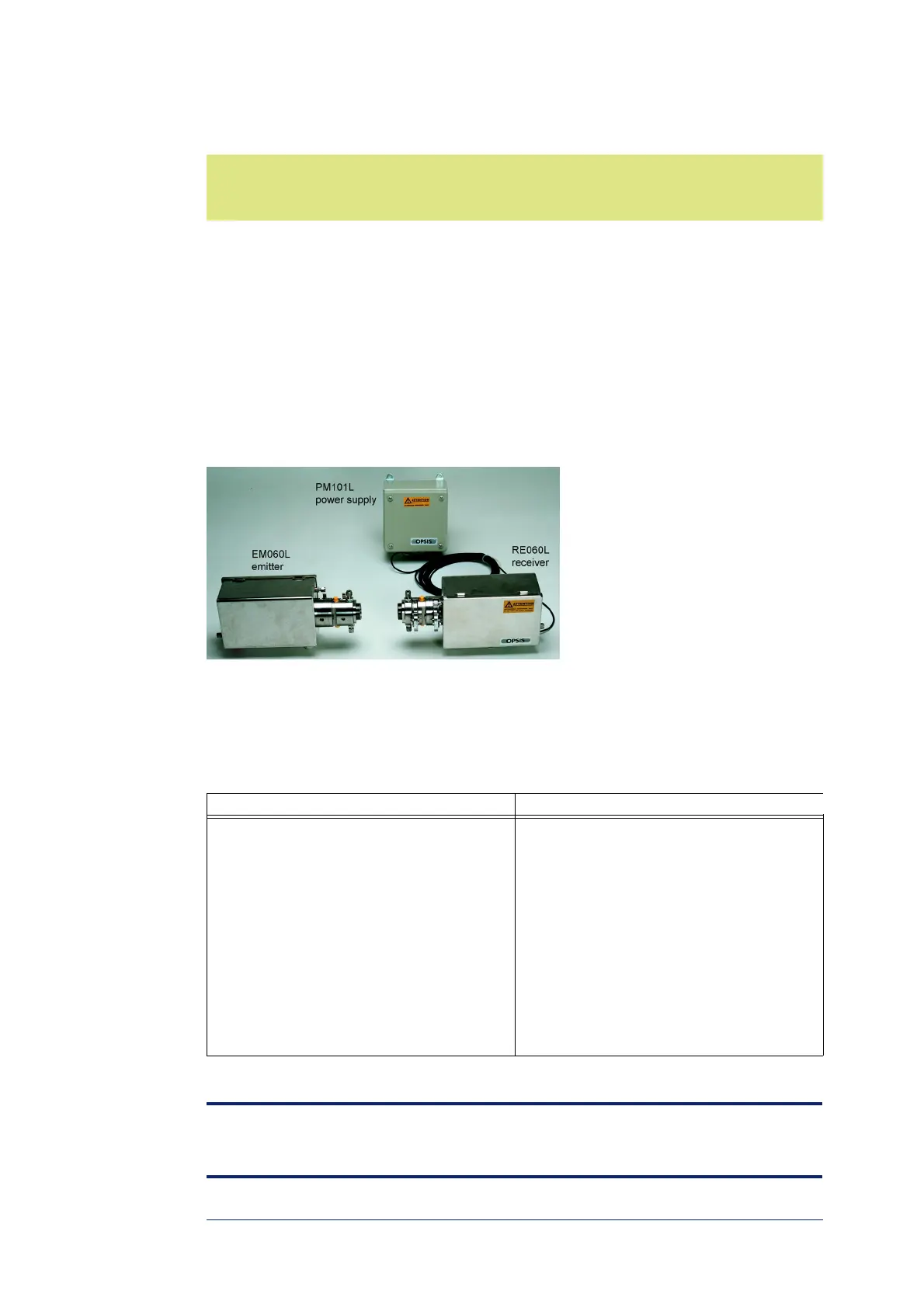

igure 1.1. The ER060L system.
