Maintenance
Version 1.2.4 - 2022-10-26 39Translation of original instruction
S275N | S275NV EN
S275N_S275NV_GB_5.fm
As required and
after changing
the saw belt
Saw arch
Adjusting the
saw belt tension
Adjusting the
position of the saw
belt on the saw
belt rollers
The saw belt must fit on the shoulder of the two saw
belt rollers when running.
If necessary, use the eccentric bolts on which the
guide bearings are located to adjust the saw band
run. Adjusting the front and rear guide bearings in
opposite directions allows you to make adjustments.
If the counter-rotating adjustment is unsuccessful, an
offset can also be achieved with additional sheet
metal strips at the fastening points. Adjustments
should only be made with a new saw band. Crooked
sawn-off parts are usually caused by a worn saw
blade, an unsuitable tooth pitch and/or an unsuitable
tooth set depending on the material to be sawn, or
an unsuitable feed.

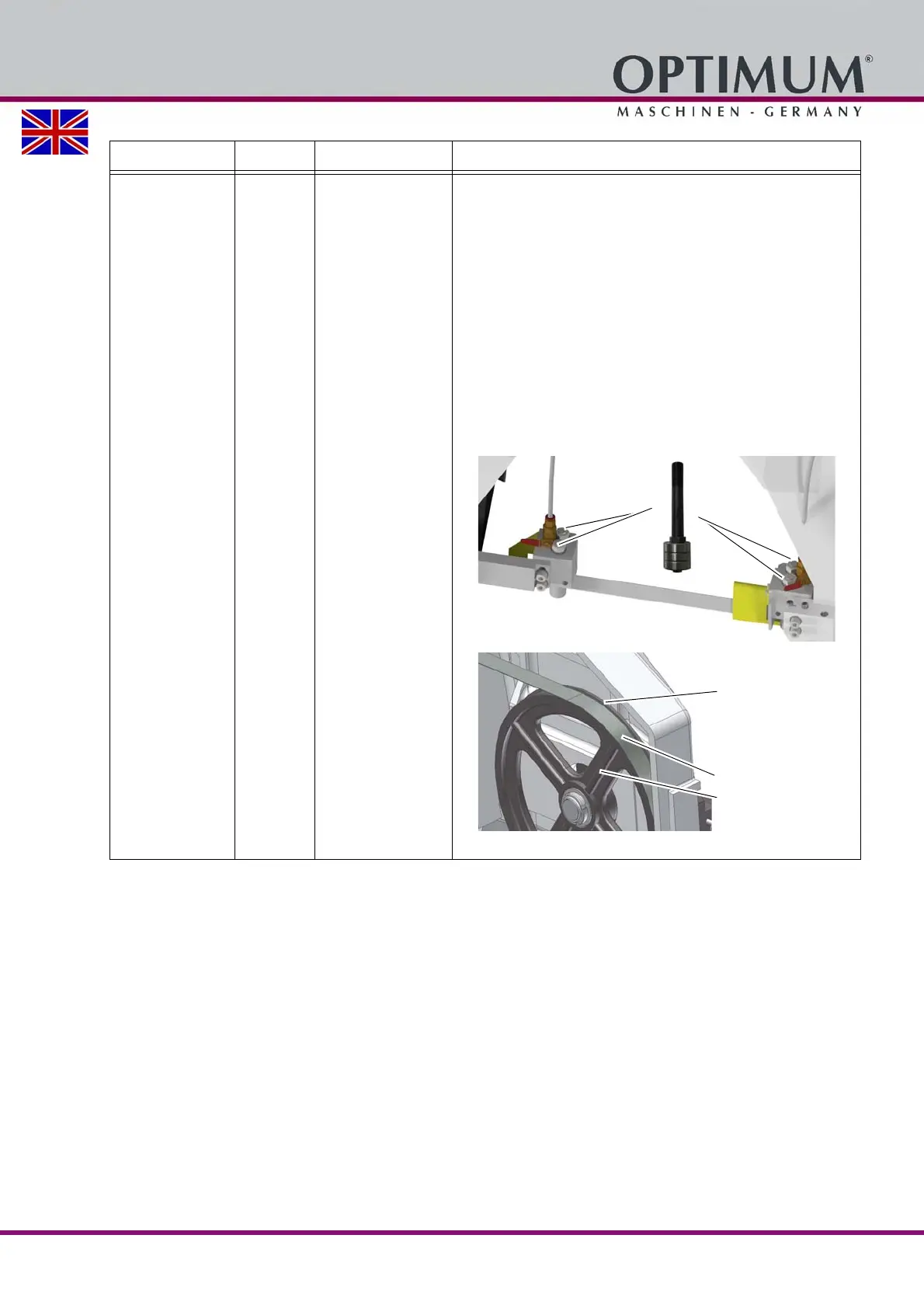

Img.5-2: Saw belt roller
Interval Where? What? How?
Shoulder
Saw belt
Saw belt roller
