DV11 / DVD100 / U2 / U3 2-17
2-24 Rod Adjustment
1. environment adjustment
- The distance between the engine and the
screen is 1.7 M
- This process should be done at a dark
environment. (under 5 Lux)
2. Procedure adjustment

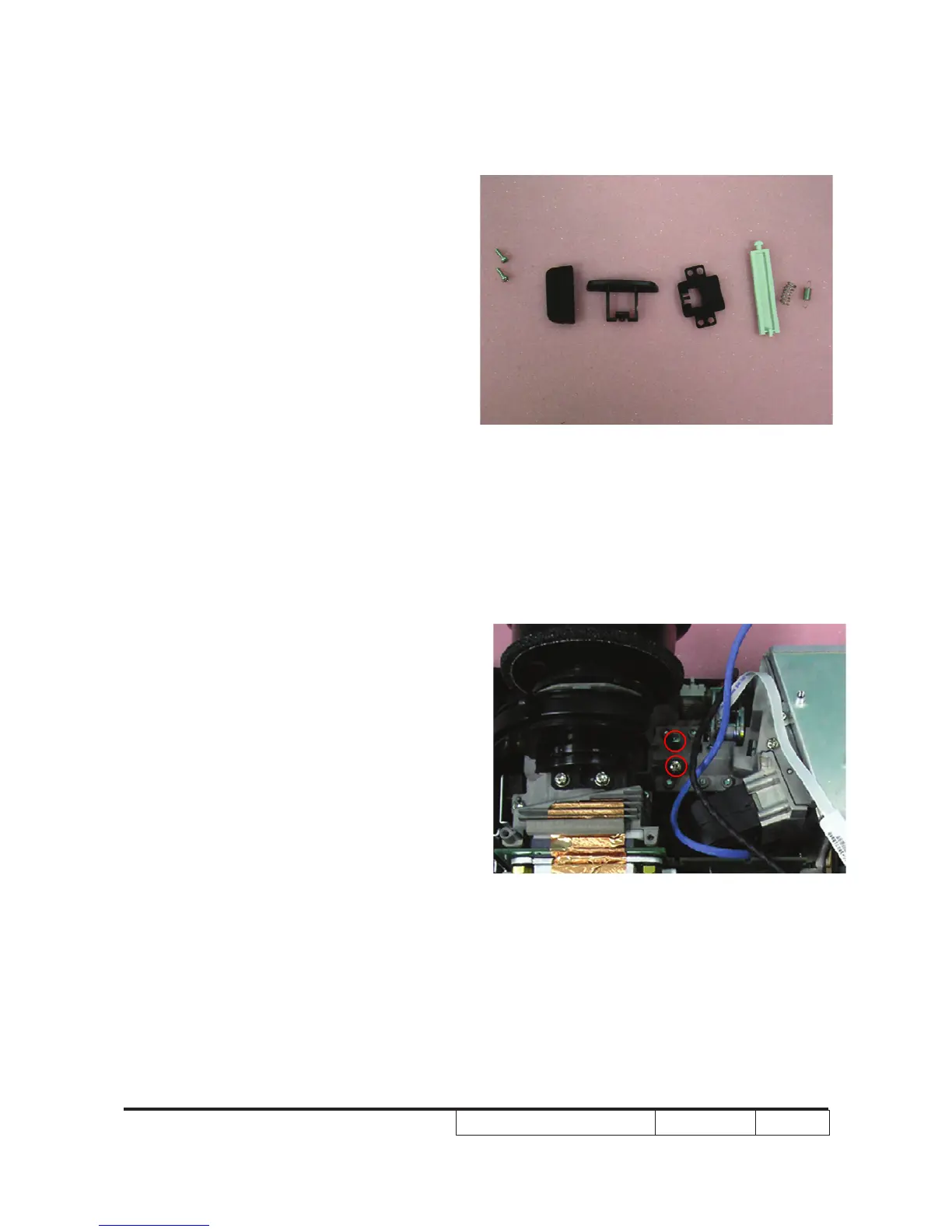

- Adjust the screws by using the rod on
the engine module to readjust the image.
(adjust until the yellowish or bluish parts
disappeared.)
3. Abnormal image inspection
- It should not have any abnormal color at
the rim of the image by estimating through
the eyes.
Note: To avoid over adjusting the rod.
After adjusting, add green glue to fasten
it.
