Optoma EP783 - Disassemble Small Heat Sink; Disassemble Motors

EP783/EP783S/EP783L/OPX5000/TX783L/TX783S
Condential 2-22

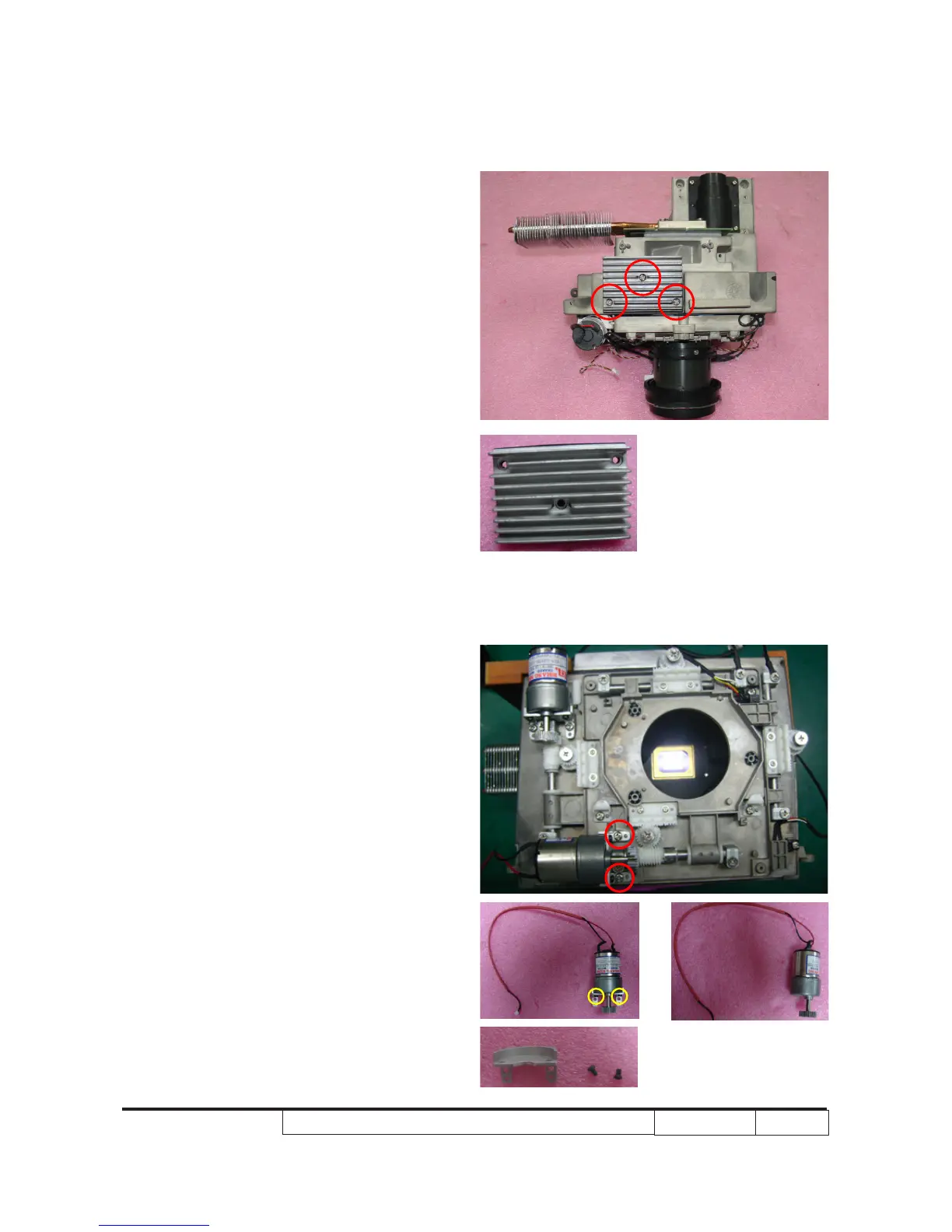

2-30 Disassemble Small
Heat Sink
1. Unscrew 3 screws (as red circle) to
disassemble Small Heat Sink.
2-31 Disassemble Motors
1. Unscrew 2 screws (as red circle) to
disassemble Left Motor Module.
2. Unscrew 2 screws (as yellow circle) to
disassemble Motor Plate.
Note: - Right Motor Module disassembled
procedure is the same as Left Motor.
