Optoma HD710 - Disassemble Keypad Board,Keypad and FPC Cable

HD71/HD710/HD75 Condential 2-3
2-3 Disassemble Keypad
Board,Keypad and FPC
cable

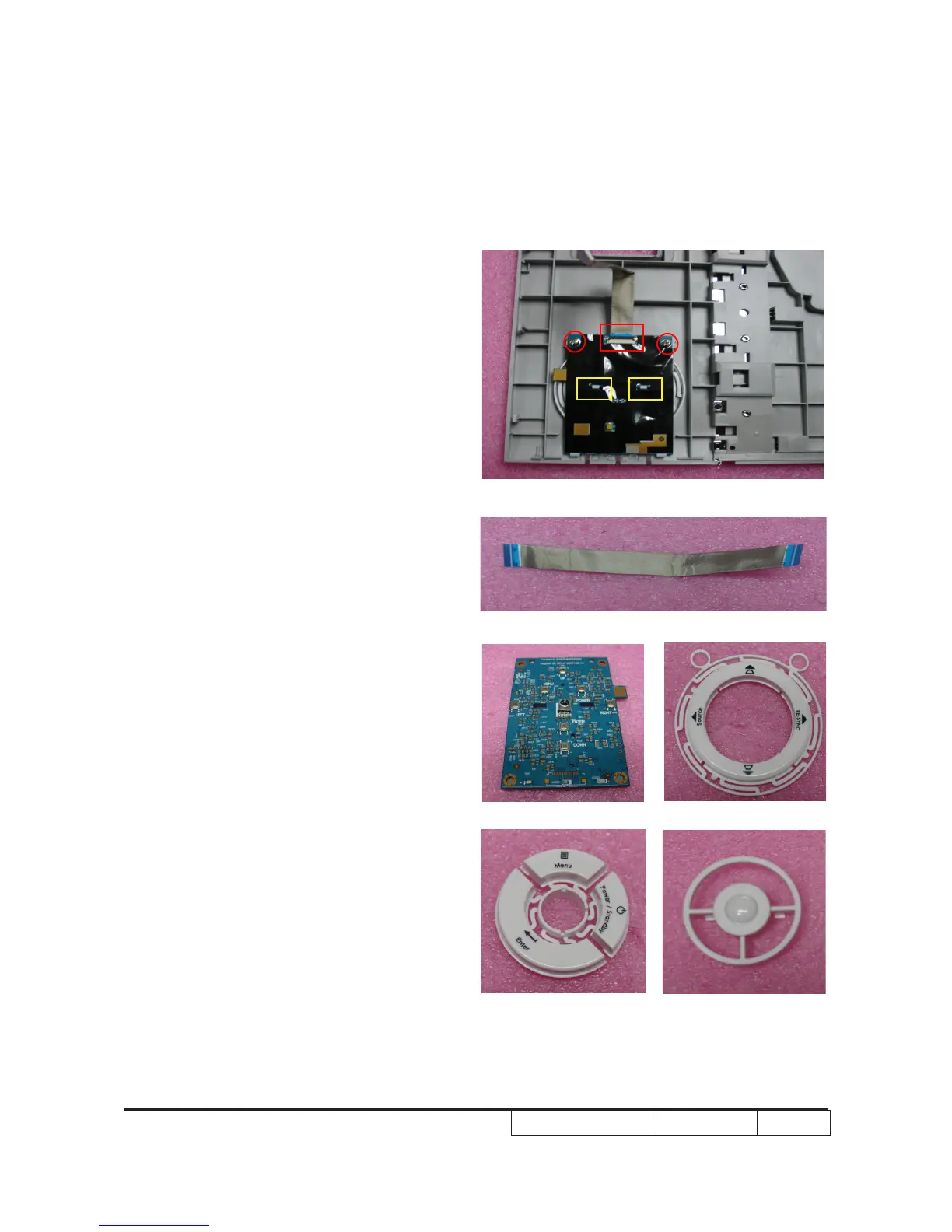

1. Unscrew 2 screws
(as red circle)
2. Unplug 1 connector to disassemble FPC
cable (as red square)
3.Separate all parts of the Keypad and Key
pad Board
Note: There are 2 tenons
(as yellow square)
