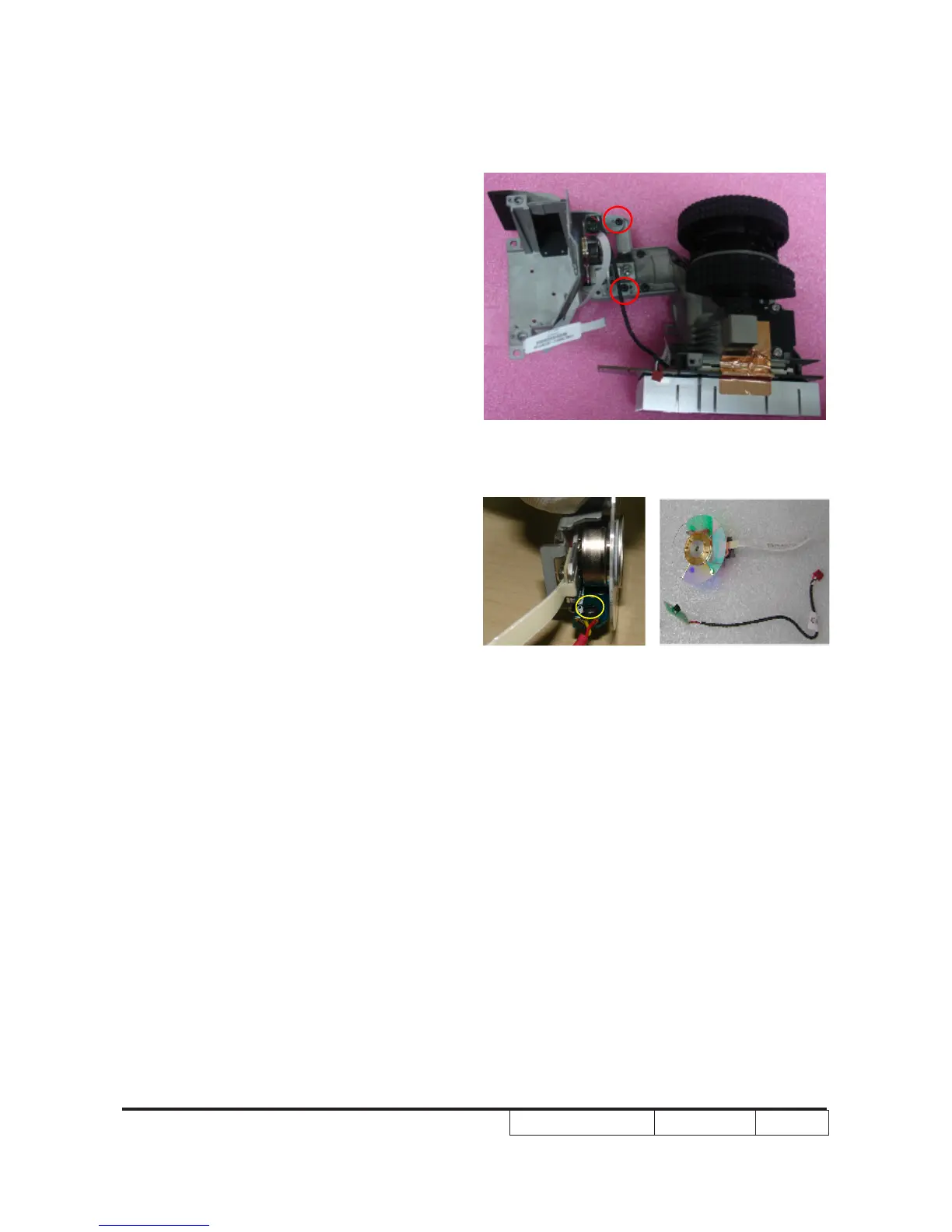

HD71/HD710/HD75 Condential 2-12
2-13 Disassemble Color
Wheel and Photo
Sensor Board
1. Unscrew 2 screws
(as red circle)
2. Disassemble Color Wheel Module
3. Unscrew 1 screw
(as yellow circle)
4. Disassemble Color Wheel and Photo
Sensor Board
