HD71/HD710/HD75 Condential 2-8

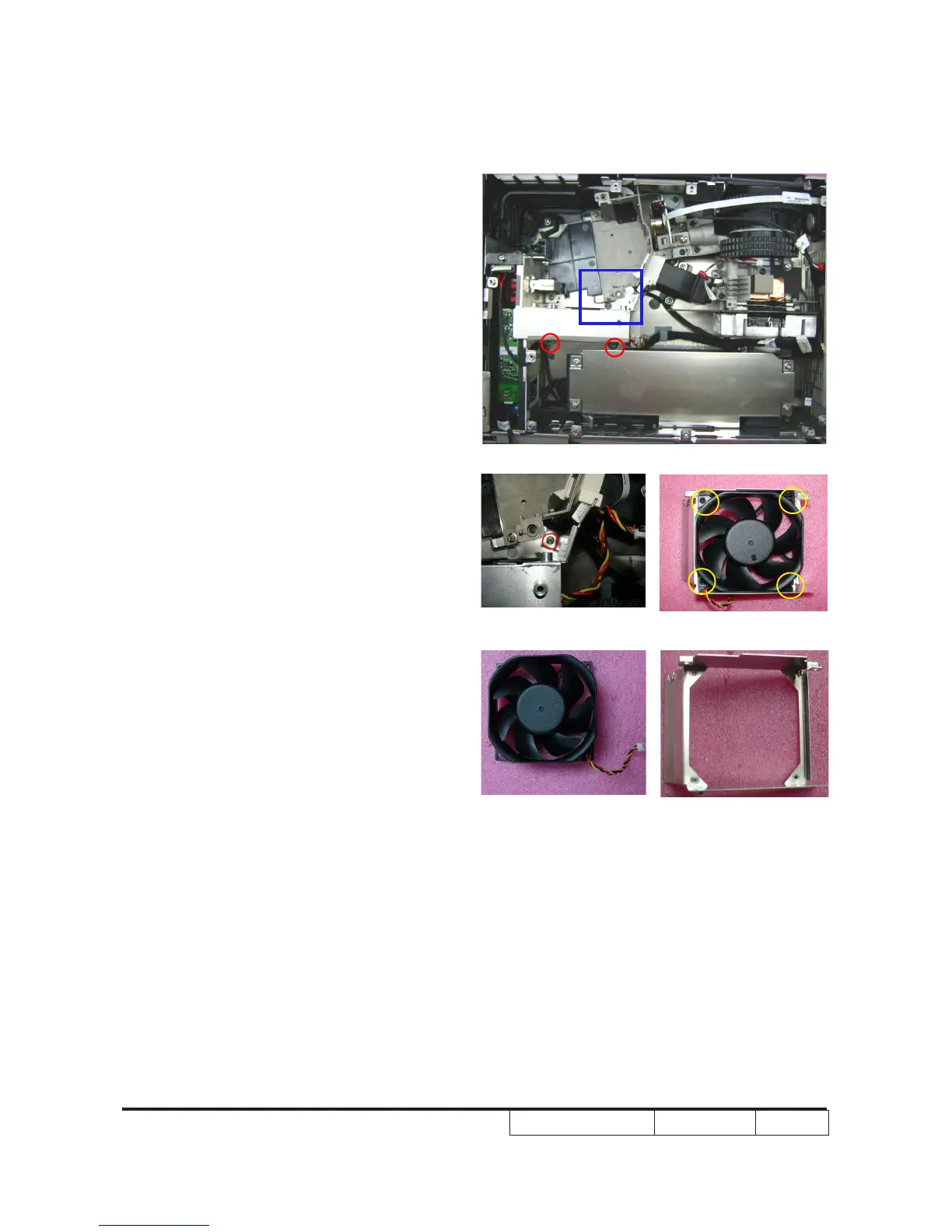

2-9 Disassemble Fan Module
1. Unscrew 3 screws
(as red circle)
2. Disassemble Fan Module
3. Unscrew 4 screws
(as yellow circle)
4. Disassembel Fan and Bracket
A
A
