Optoma HD710 - Disassemble Main Board

HD71/HD710/HD75 Condential 2-6

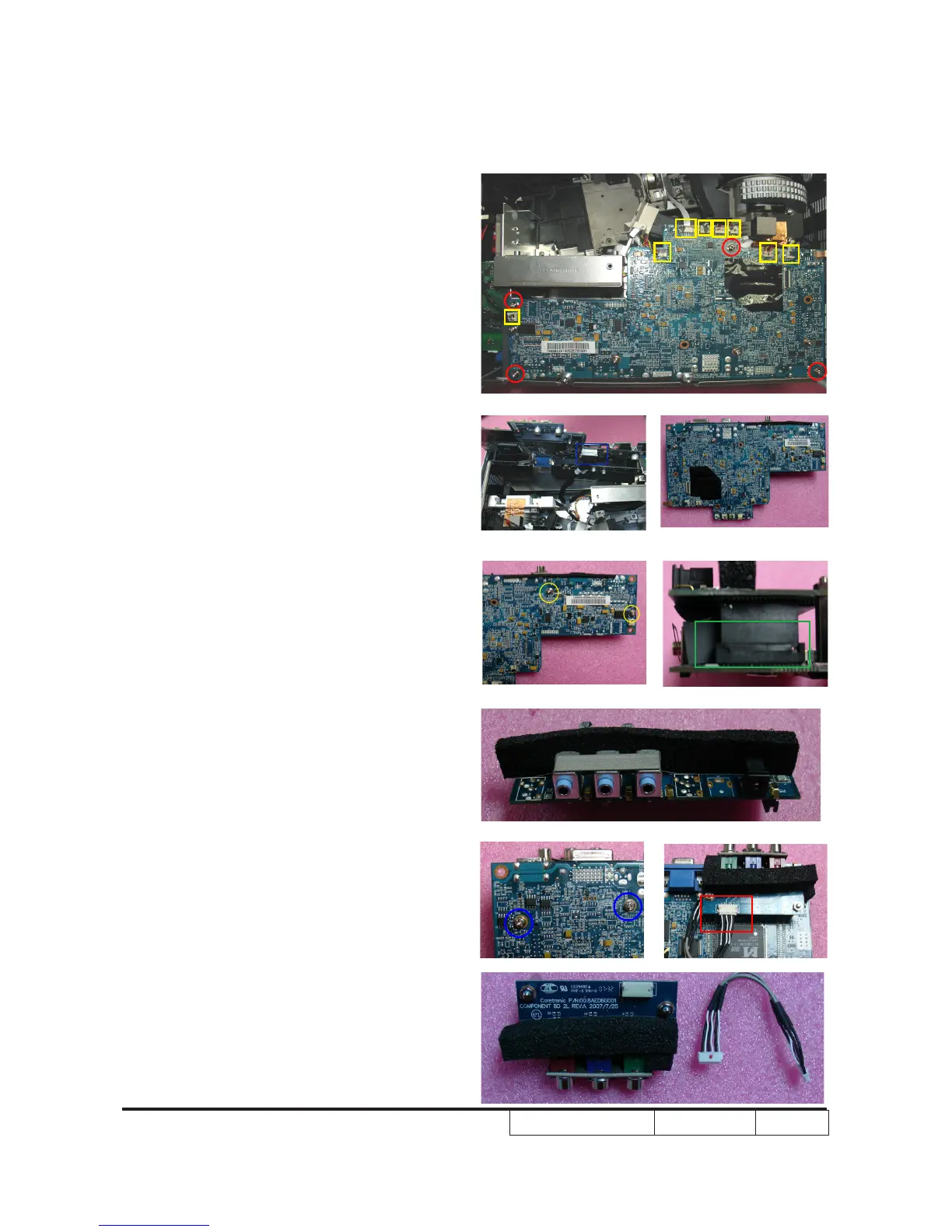

2-7 Disassemble Main Board
Module , Audio Board
Module and Component
Board Module
1. Unscrew 4 screws
(as red circle)
2. Unplug 8 connectors
(as yellow square)
3. Unplug 1 connector
(as blue square)
4. Disassemble Main Board Module
5. Unscrew 2 screws
(as yellow circle)
6. Unplug 1 connector
(as green square)
7. Disassemble Audio Board Module
8. Unscrew 2 screws
(as blue circle)
9. Unplug 1 connector
(as red square)
10. Disassemble Component Board Module
