HD71/HD710/HD75 Condential 2-16
2-17 Disassemble ROD
Module

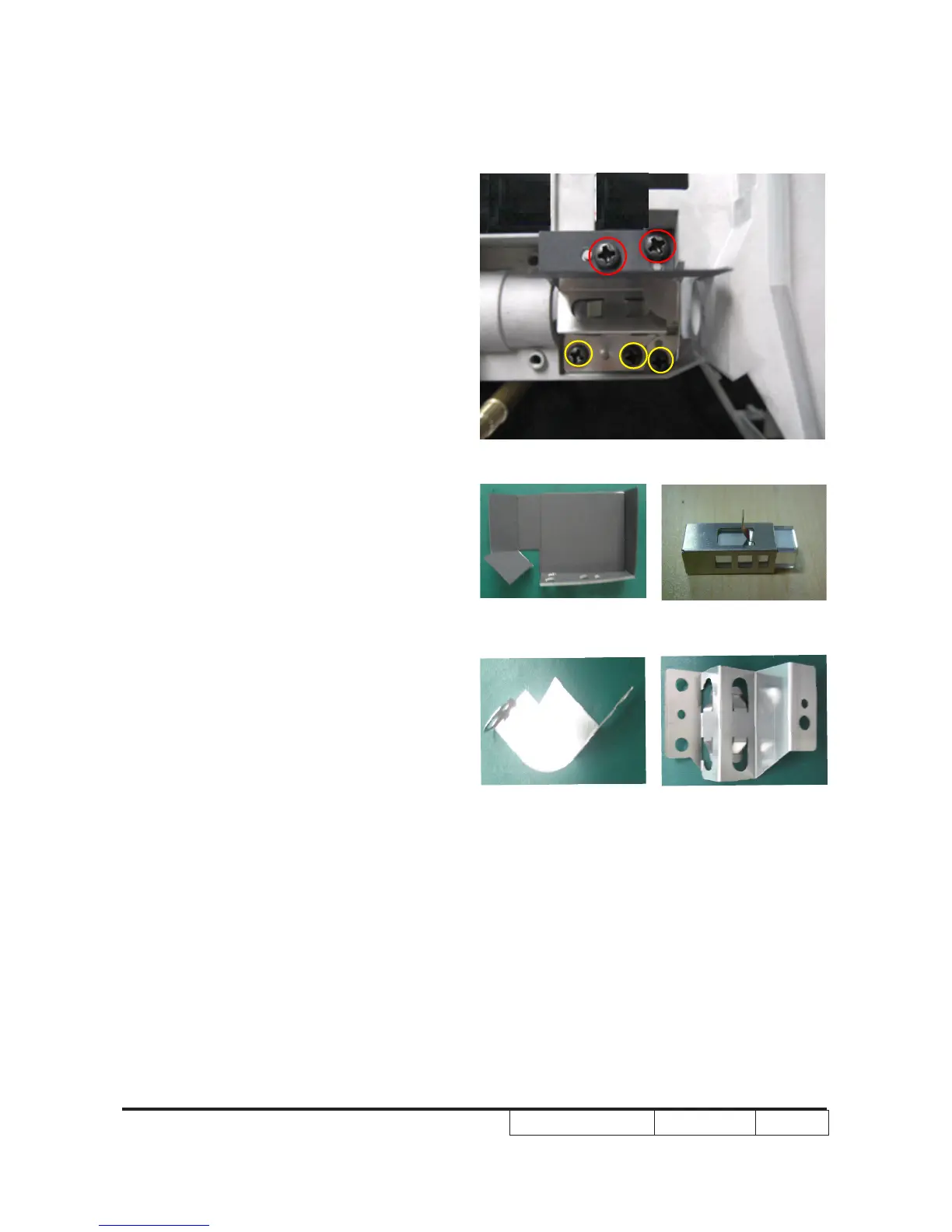

1. Unscrew 2 screws
(as red circle)
2. Take off Mylar
3. Unscrew 3 screws
(as yellow circle)
4. Disassemble ROD Module
