HD71/HD710/HD75 Condential 2-10
2-11 Disassemble Engine
Module

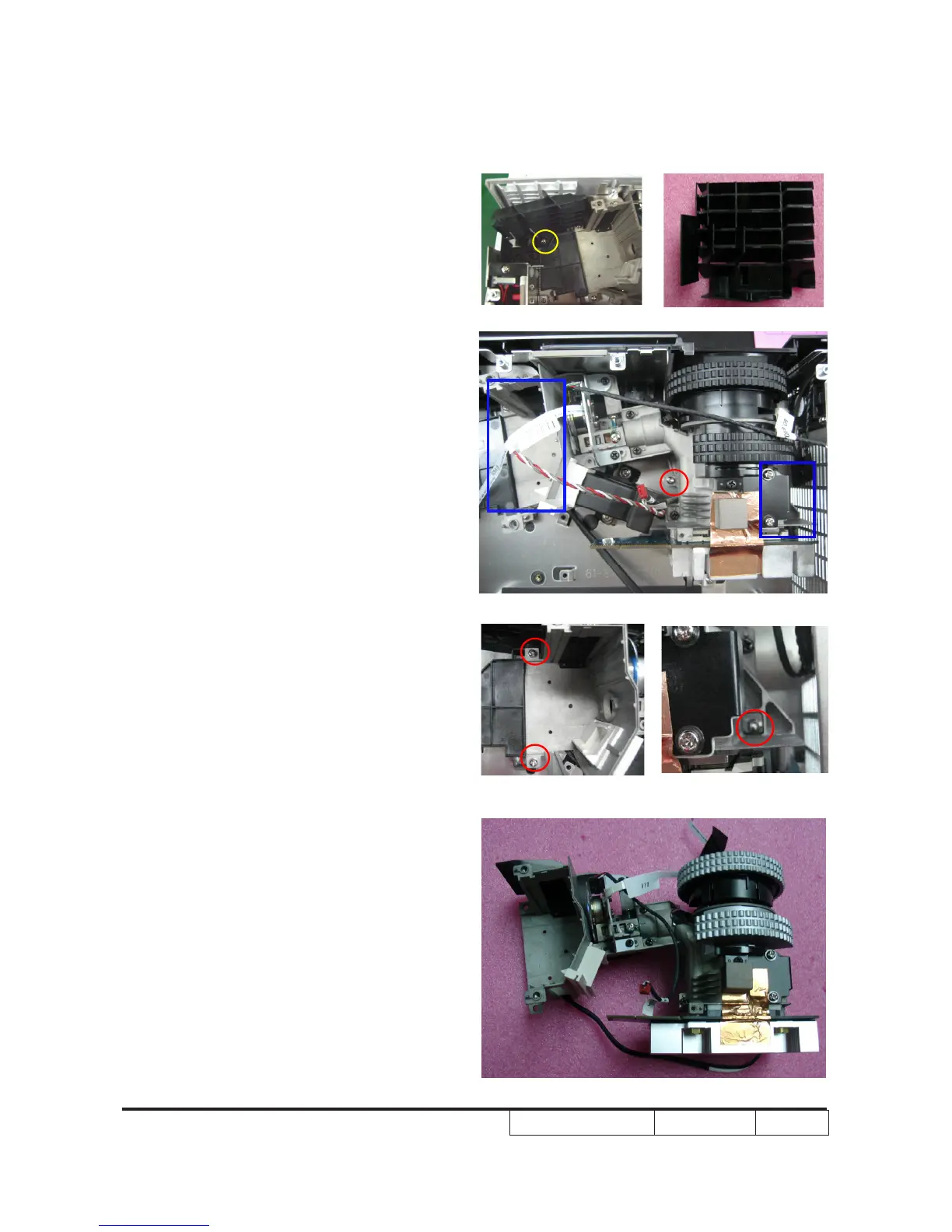

1. Unscrew 1 screw
(as yellow circle)
2. Disassemble Inner Mask
3. Unscrew 4 screws
(as red circle)
4. Disassemble Engine Module
A
B
A
B
