HD71/HD710/HD75 Condential 2-9
2-10 Disassemble LVPS
Module

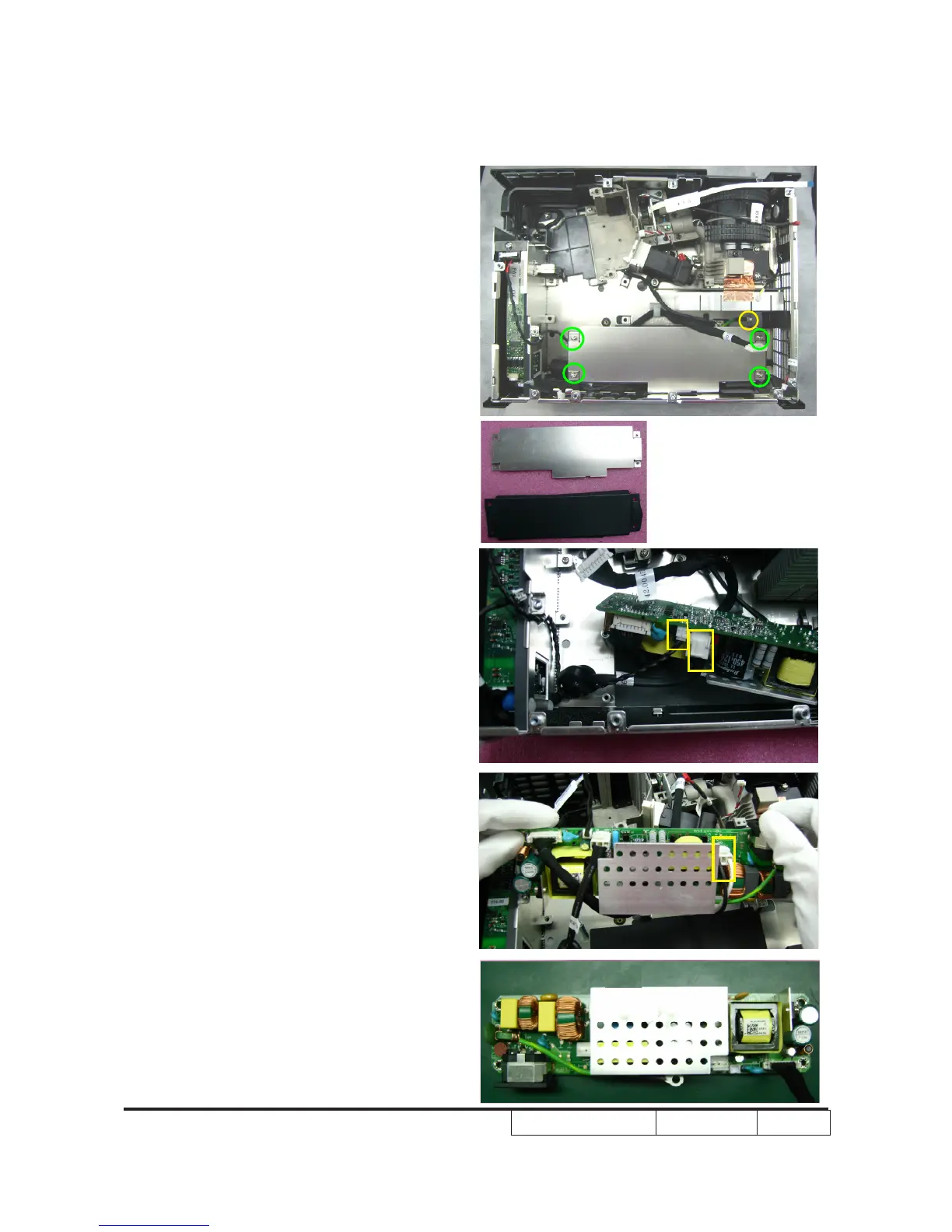

1. Unscrew 1 ground screw
(as yellow circle)
2. Unscrew 4 screws
(as green circle)
3. Disassemble Bracket and Mylar
4. Unplug 3 connectors
(as yellow square)
5. Disassemble LVPS Module
