Optoma HD710 - Setup Procedure

HD71/HD710/HD75 Condential
6-3

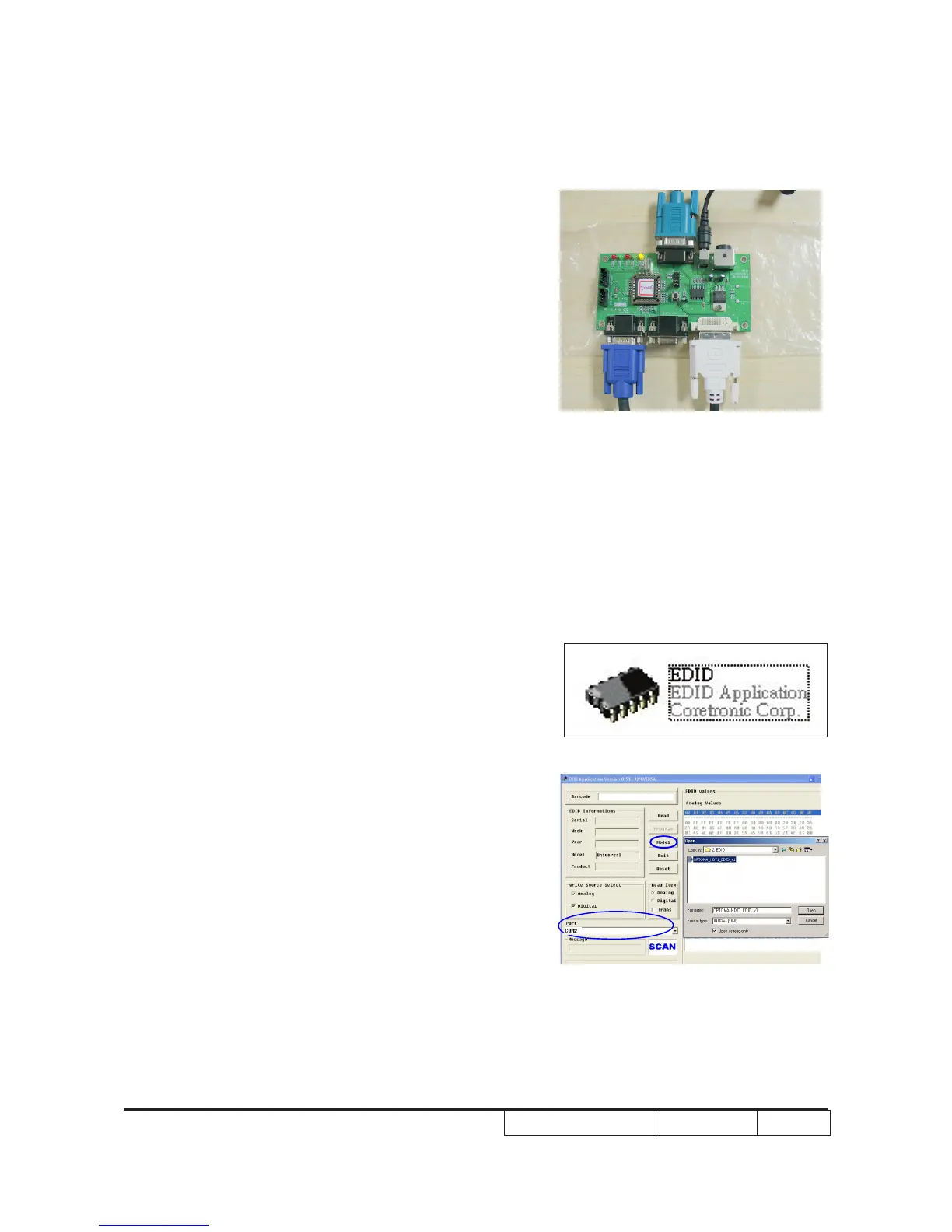

6-4 EDID Key-In Procedure
1. Click on "EDID" to execute EDID program
2. Choose model
- In the port selection bar, please choose
the port that you use. Example: if you
use "COM2" ,choose COM2 in the port
selection.
- Click on "Model".
- Choose the EDID that responses to the
model that you choose.
6-3 Setup Procedure
1. Connect all ports
- Power adapter to xture JP1
- Fixture P1 to PC COM Port
- Fixture P4 to Projector analog port
- Fixture P3 to Projector DVI port
- Power on xture
- Power on unit
VGA Cable
RS232 Cable
JP1
P4
P1
Adapter
P3
DVI Cable
