Optoma HD86 - Removing the Top Cover

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
33
2009/08/18
Remove the Top Cover

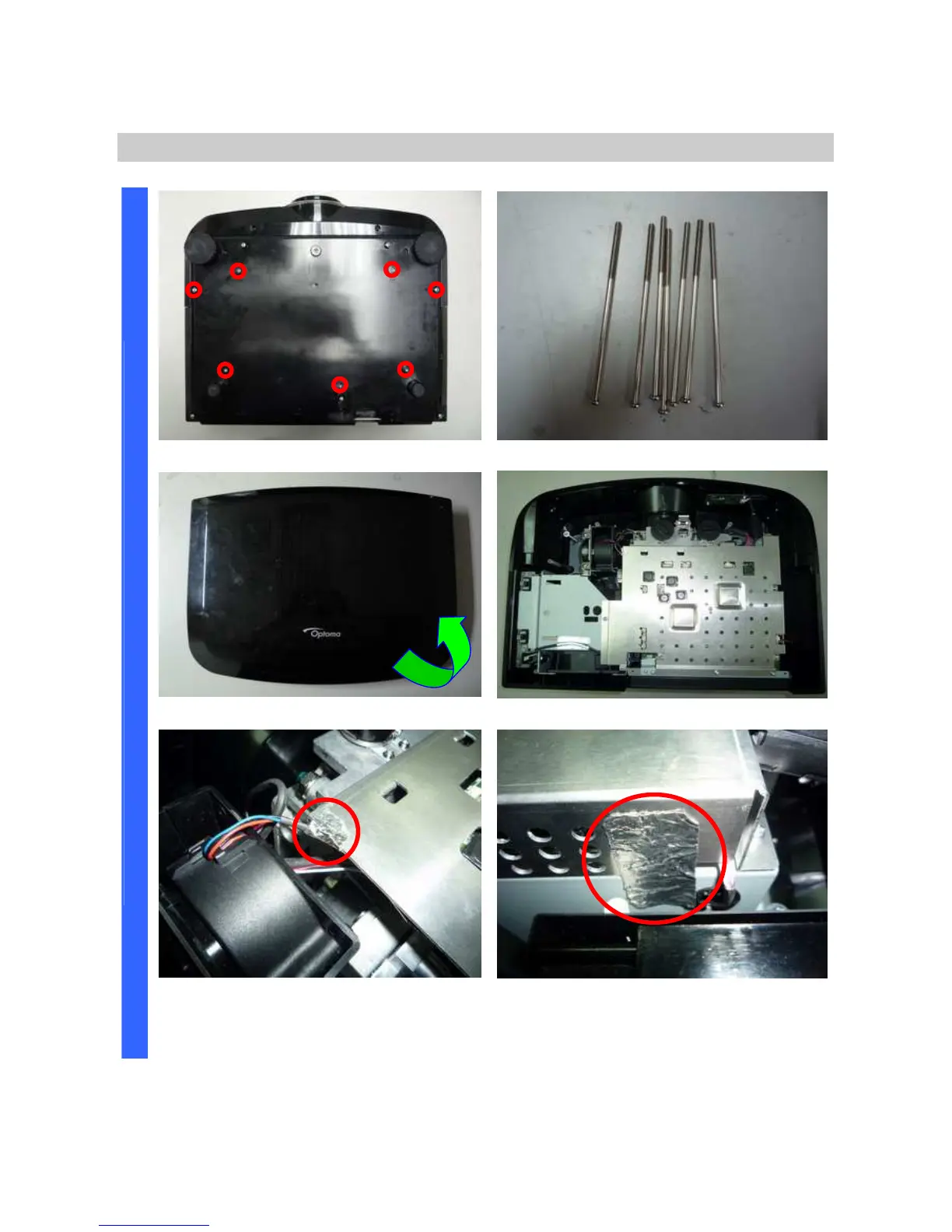

Remove these seven long screws. Look these seven screws (M4x105).
Take off the Top case. Review the top area w/o top case.
D
I
S
A
S
S
E
M
B
L
Y
Careful area of this EMI copper foil and
check this right positions when you
assembled.
Careful area of this EMI copper foil and
check this right positions when you
assembled.
