Remove the Top Cover and Keypad Board
Careful area of this EMI copper foil and check
this right positions when you assembled.

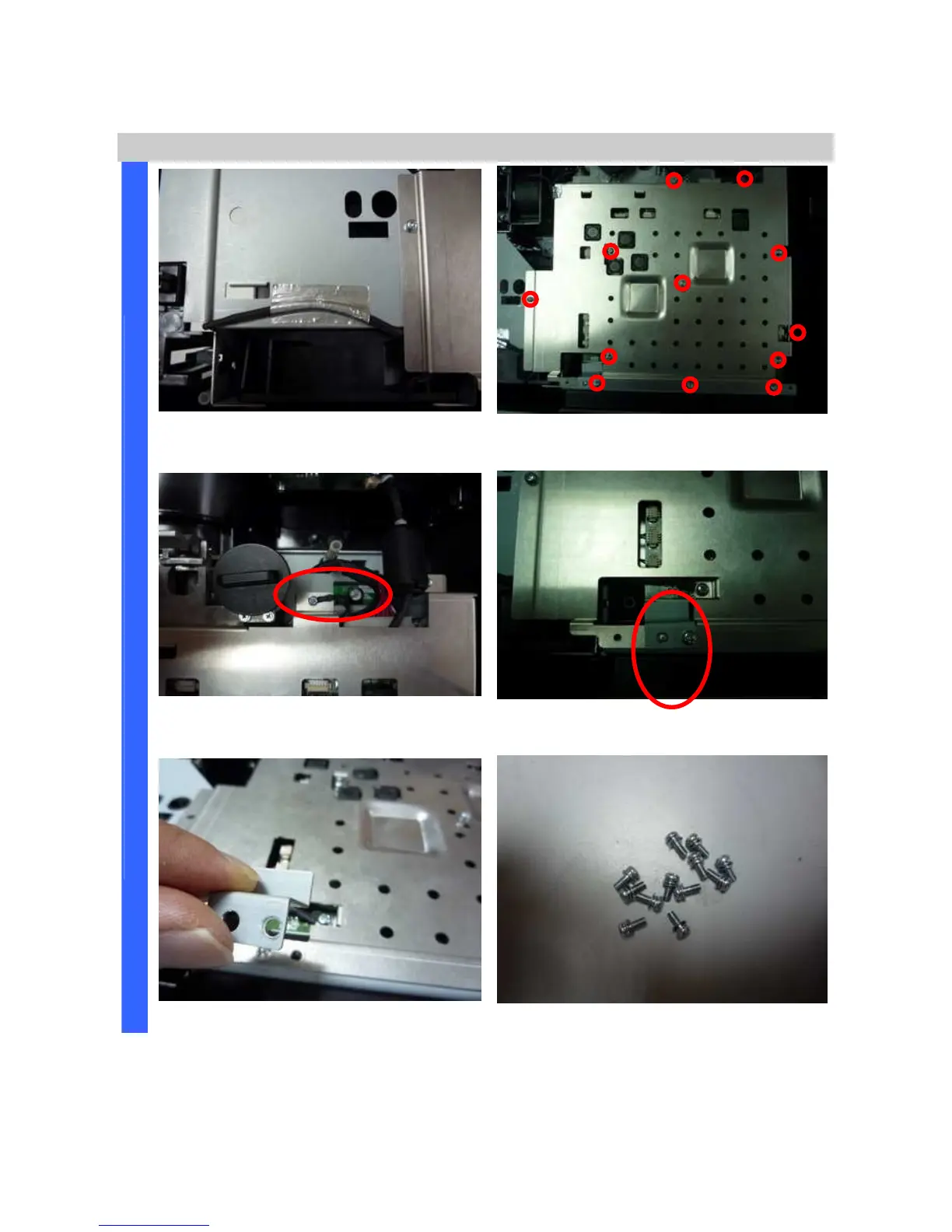

Remove these 12 screws (M3x8).
Careful the grounding wire when you
assembled.
Careful the chassis when you assembled
again.
D
I
S
A
S
S
E
M
B
L
Y
Remove the chassis . Review these 12 screws (M3x8).
