Optoma HD86 - Removing Chassis and Main Board

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
35
2009/08/18

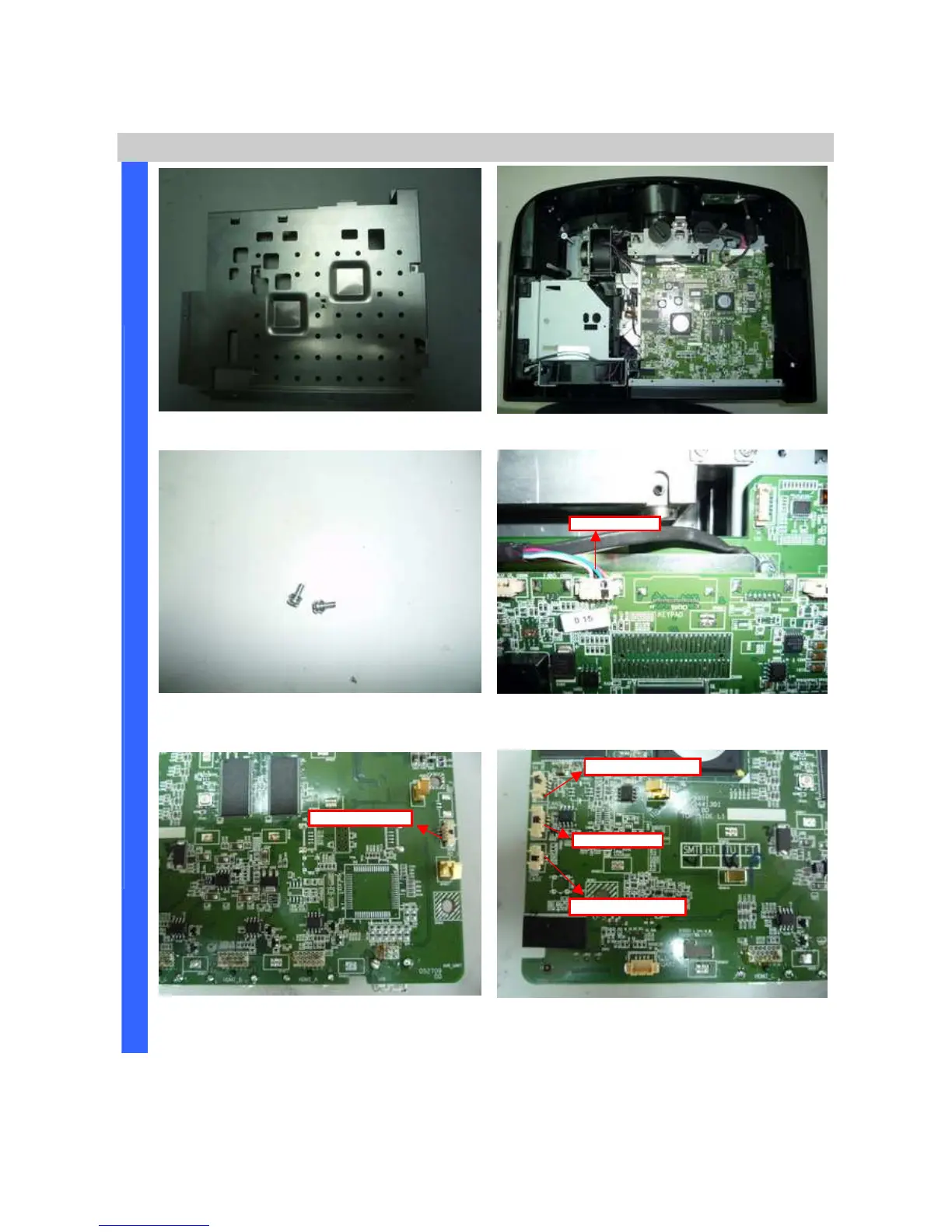

Remove the Chassis and Main Board
Look the main chassis. Review the top area w/o main chassis.
Review these 2 screws (M3x8).
Careful the connector location when you
assembled again.
D
I
S
A
S
S
E
M
B
L
Y
Careful the connector location when
you assembled again.
Careful these connectors location when
you assembled again.
CN506
IRIS
CN500 Thermal
CN301 Case Open
C
N300 Thermister
CN502 FAN3
