Remove the White Tube

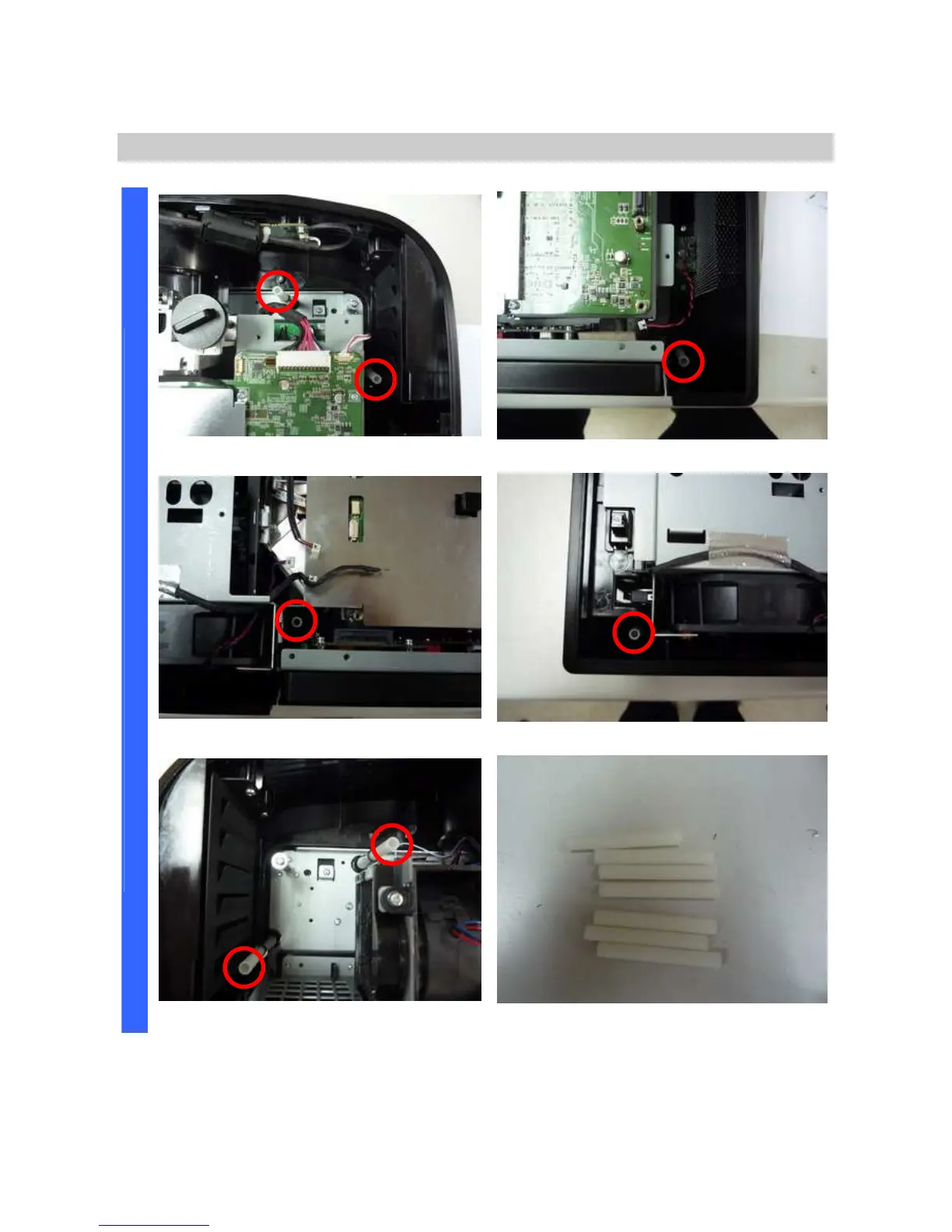

Remove the white long tube #1. Remove the white long tube #2.
Remove the white long tube #3.
Remove the white long tube #4.
D
I
S
A
S
S
E
M
B
L
Y
Remove the white long tube #5.
Review the 6 white long tubes .
