Optoma HD86 - Removing the Format Board

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
38
2009/08/18

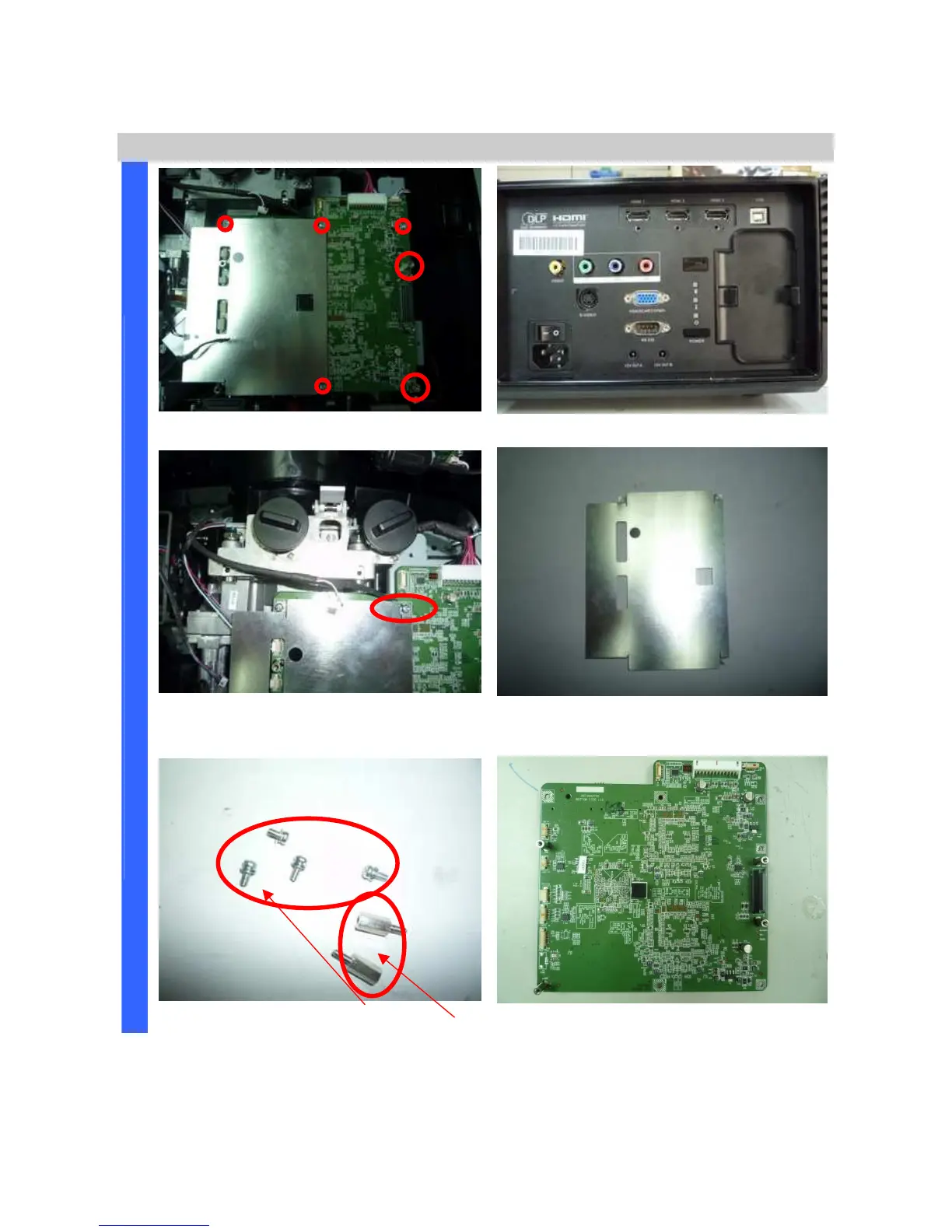

Remove the Format Board
Remove these 4+2 screws.
Look at the IO side.
Careful the grounding wire when you
assembled.
Look the Format board chassis
D
I
S
A
S
S
E
M
B
L
Y
Review these 4+2 screws(M3x8)&(HEX 6x12).
Review the Format board.
