Optoma HD86 - Removing IO Board and Fan

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
42
2009/08/18
Remove the IO Board and Fan

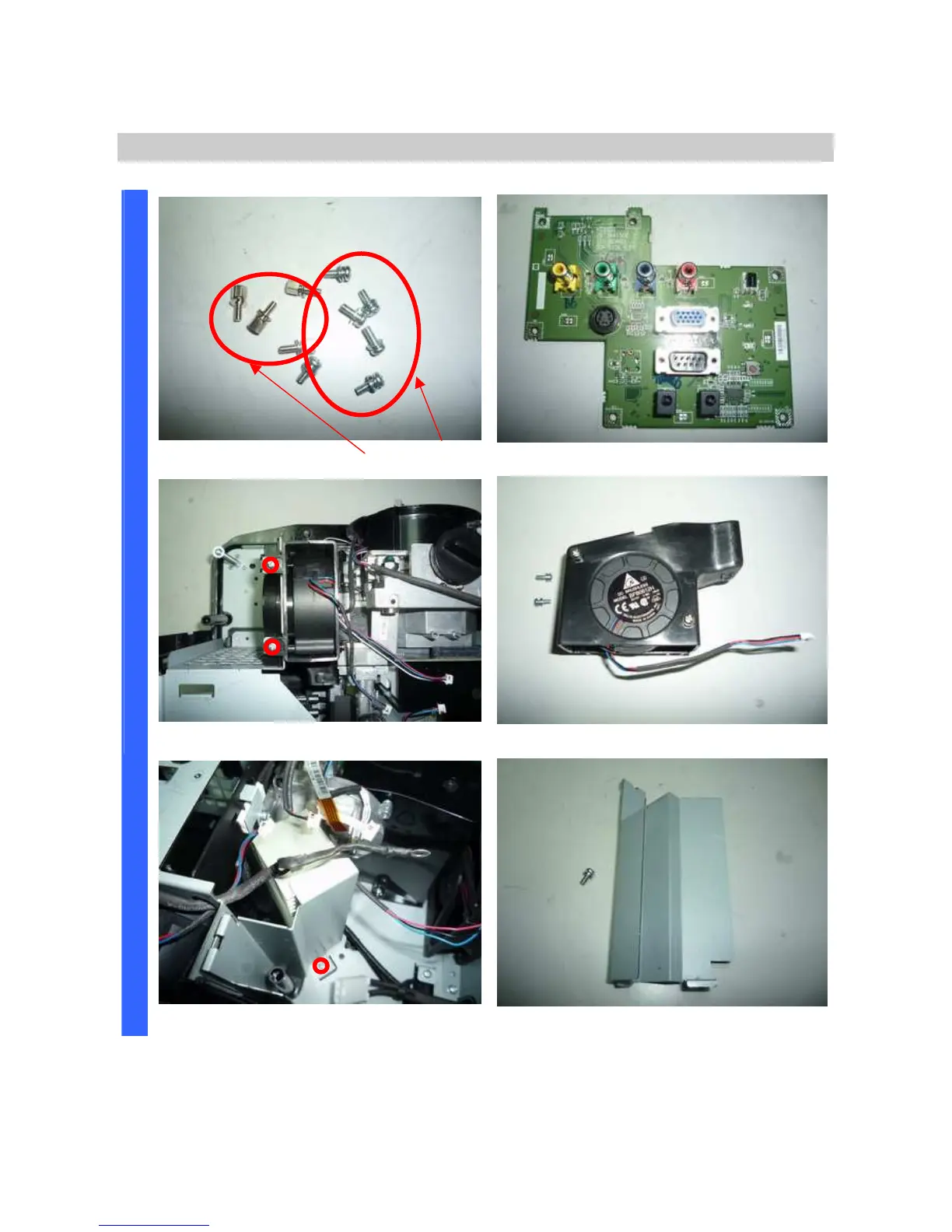

Review these 4+6 screws(#4-40)&(M3x8).
Look the IO Board.
Remove the 2 screws (M3x8). Look the Fan 1.
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw (M3x8). Look the Fan-Chassis.
