Optoma HD86 - Removing the DB Assembly

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
43
2009/08/18

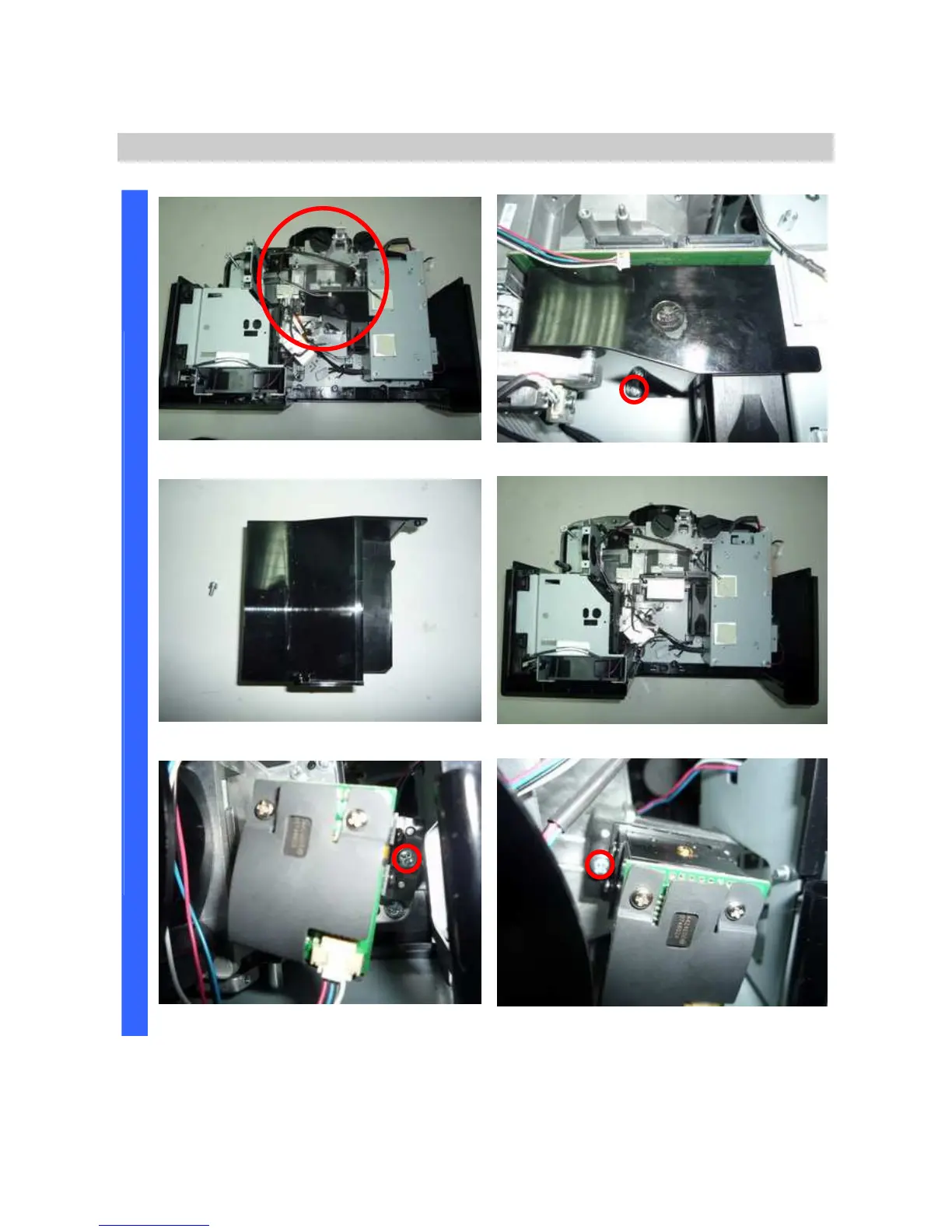

Remove the DB
Review the optical engine. Remove the screw (M3x8).
Look the Fan-Shell. Review the optical engine w/o Fan-Shell.
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw (M3x8). Remove the screw (M3x8).
