Optoma HD86 - Removing DB and Optical Engine

Delta Elec. Inc. HD86
Company Confidential Optoma___________________ Delta________________
44
2009/08/18

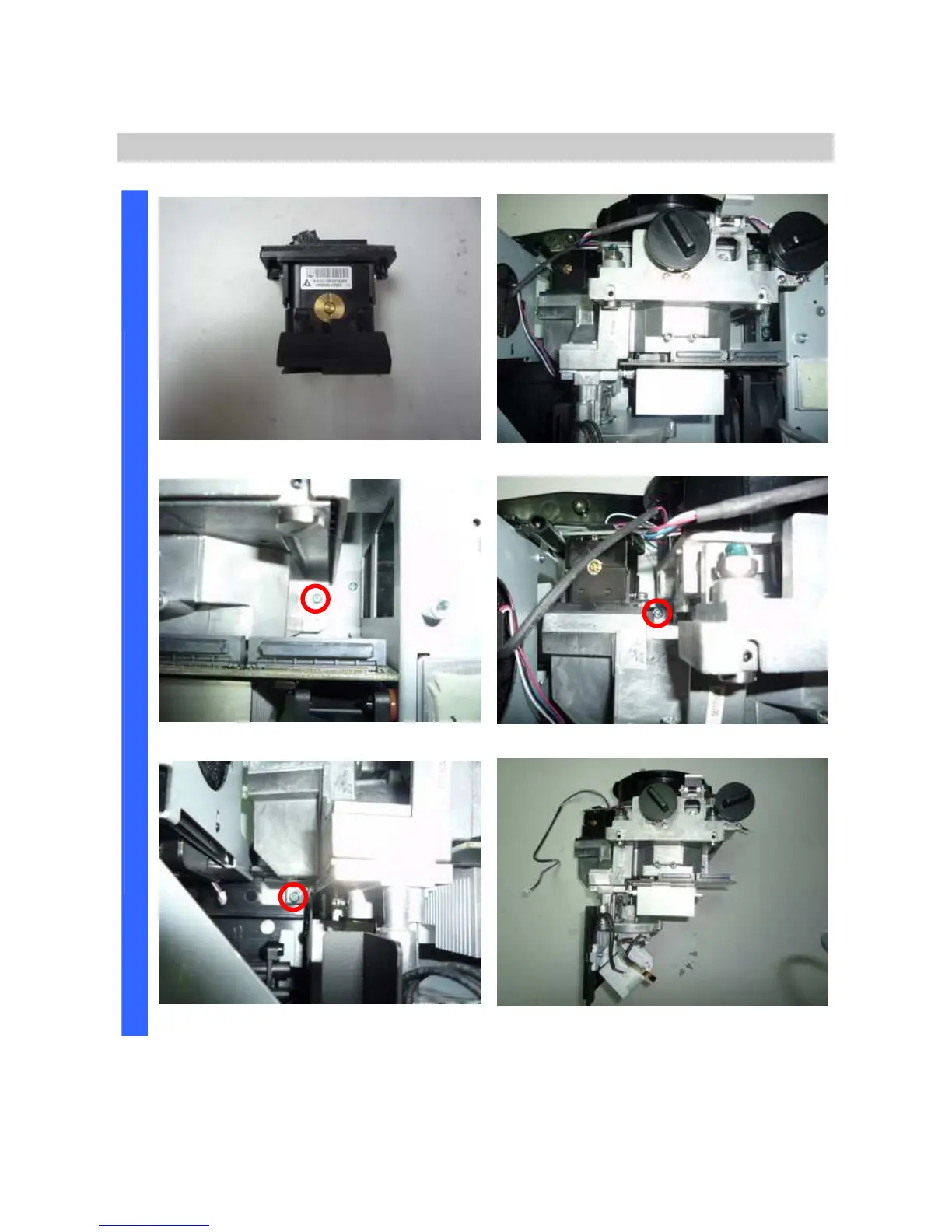

Remove the DB and Optical Engine
Look the DB. Look the bottom case with optical engine.
Remove the screw (M3x8). Remove the screw (M3x8).
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw (M3x8). Look the optical engine #1.
